2 in 1 External Wall Grille

2 in 1 External Wall Grille

SKU : QV-2IN1SSG-125

Overview

The 2 in 1 external terminal wall grille combines the outdoor air and exhaust air connection in one compact product

Reliable Products, Merchant-Ready Support

Quality You Can Trust

We don’t just supply ventilation products we deliver confidence, consistency, and commercial success to our merchant partners.

Dedicated Support

At Quiet-Vent, we’re committed to helping merchants succeed by making it simple to sell and support our high-performance ventilation products.

In-Branch Product Training

We offer in-branch product training to help you get the most out of our ventilation solutions.

Competitive Merchant Pricing

Quiet Vent supports merchants with reliable stock and trade-friendly pricing.

View full details

Description

Product Part Number

125mm - QV-2IN1SSG-125

150mm - QV-2IN1SSG-150

180mm - QV-2IN1SSG-180

Product Overview

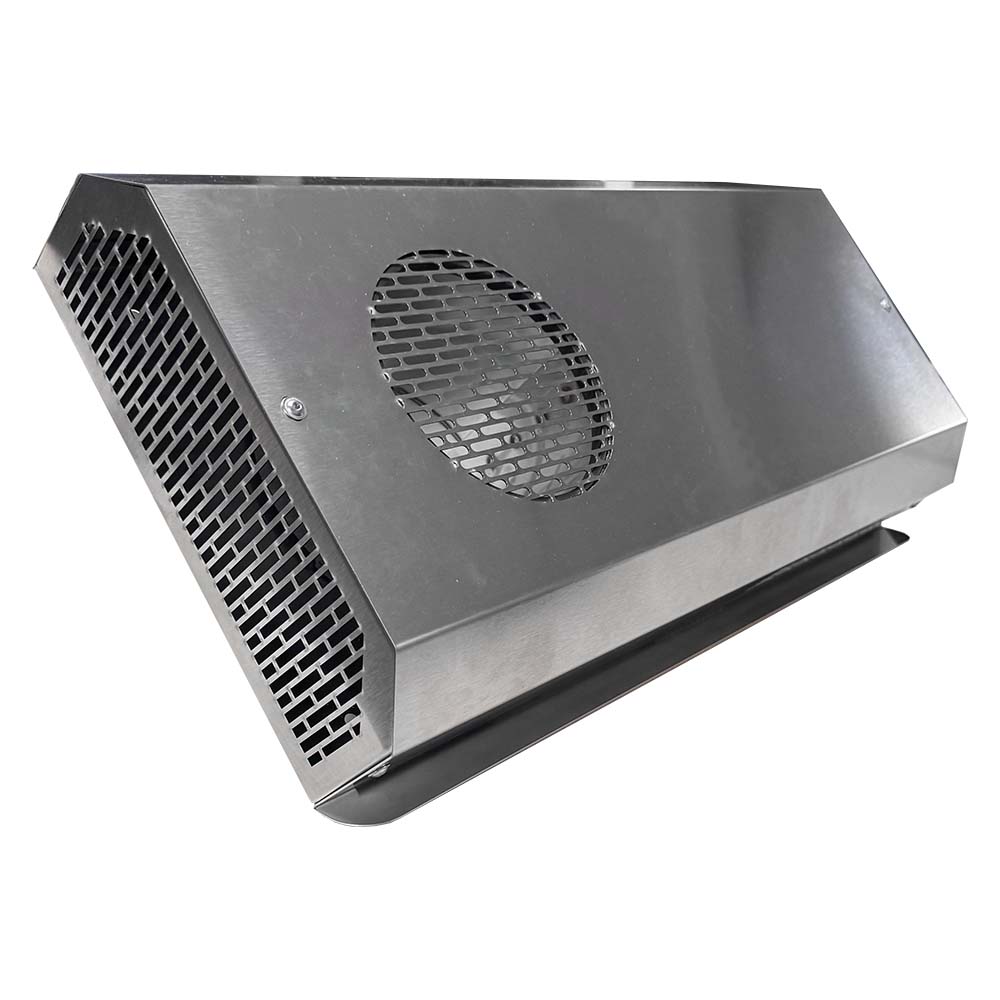

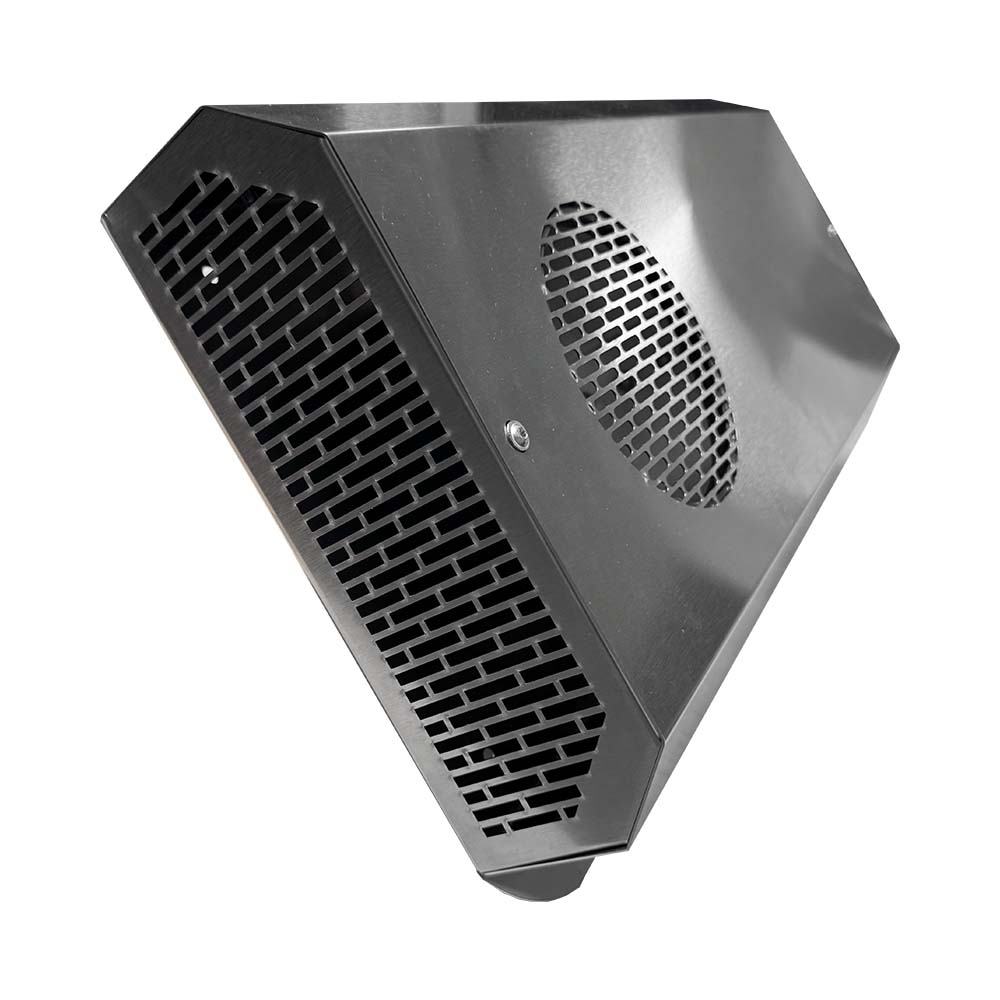

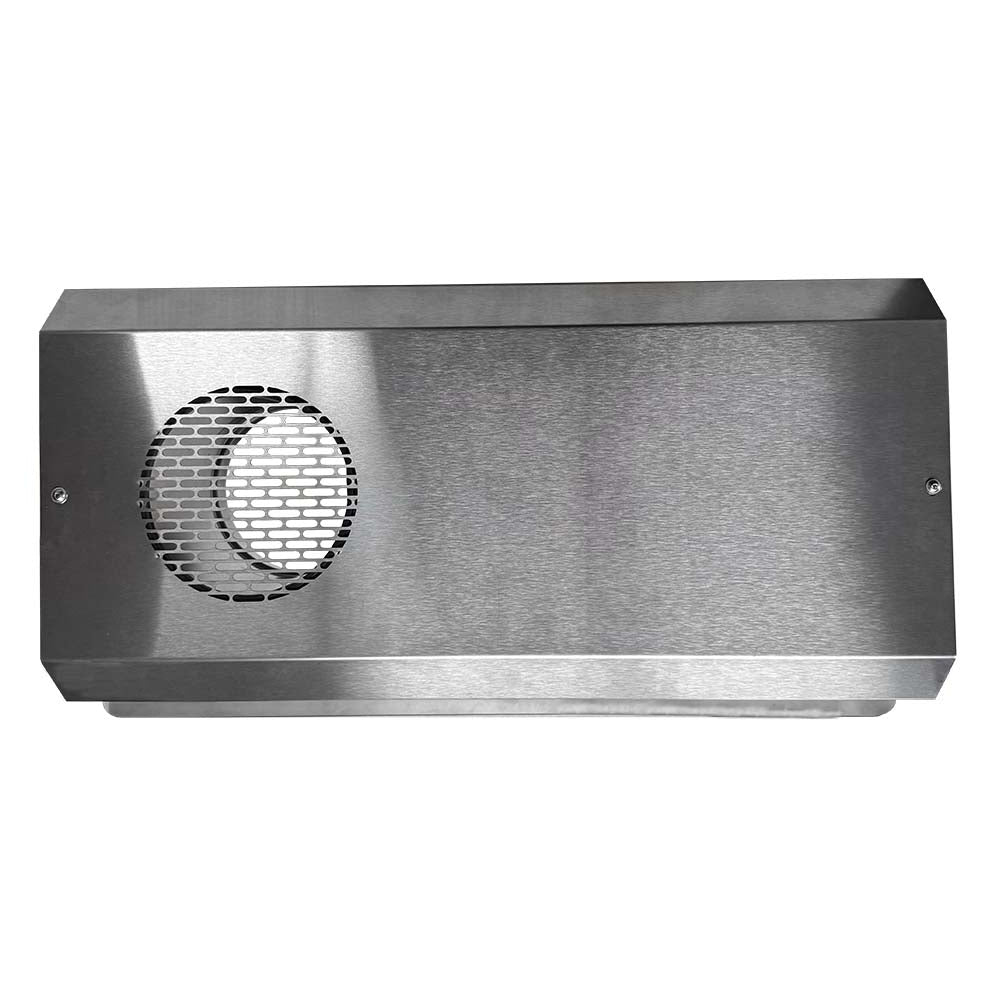

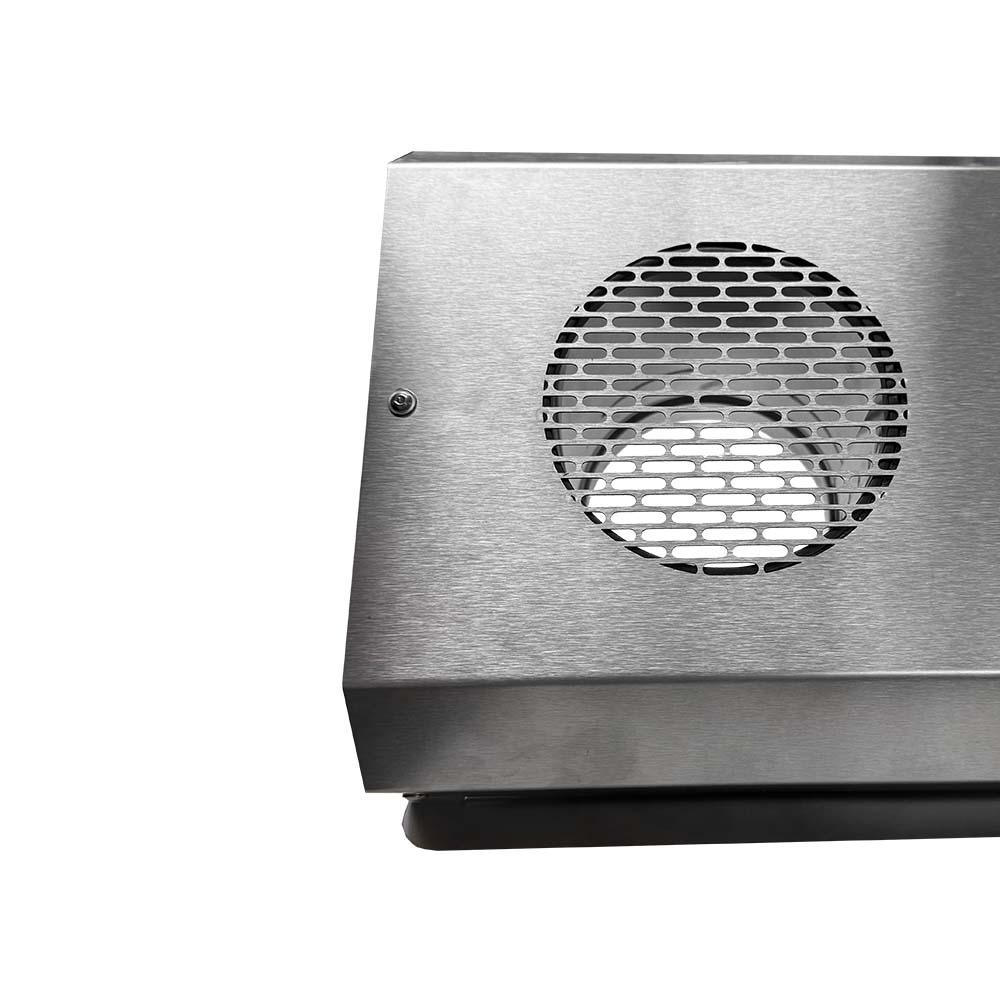

The 2 in 1 external terminal wall grille combines the outdoor air and exhaust air connection in one compact product

Manufactured of stainless steel with options of powder coating in white (RAL9010) and Black (RAL9005)-

Designed to allow installation of external pipes in a compact location with minimal air recirculation

Available in duct diameter connections 125mm, 150mm 180mm

Key features

  • Time and space saving
  • Stainless steel construction
  • 125,150, 180mm connections

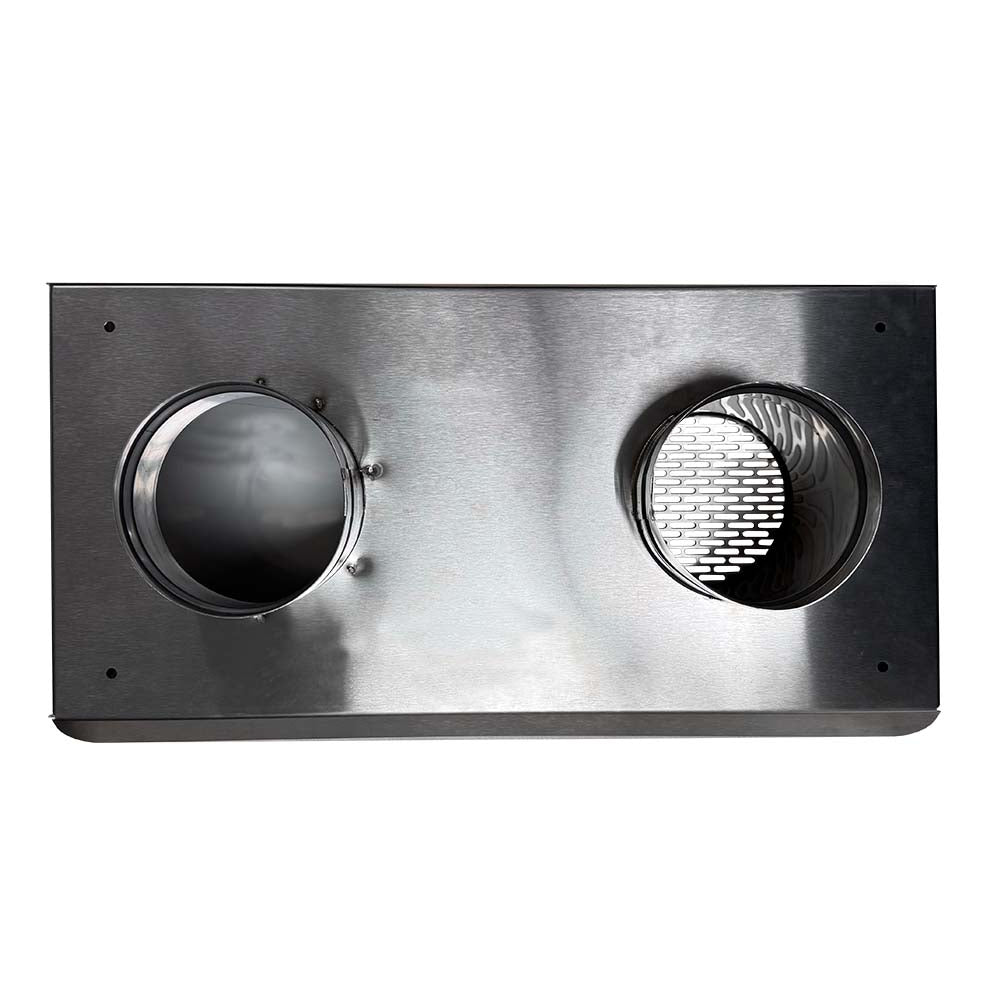

  • Male spigots at rear for superior airtightness
  • Four fixing holes for wall mounting
  • Easy to disassemble for easy installation
  • Compact solution
  • Minimal airflow recirculation
  • Low pressure loss
  • Rain protection
  • Optional White or Black powder coating*

*Powder coating is recommended in areas of salt corrosion

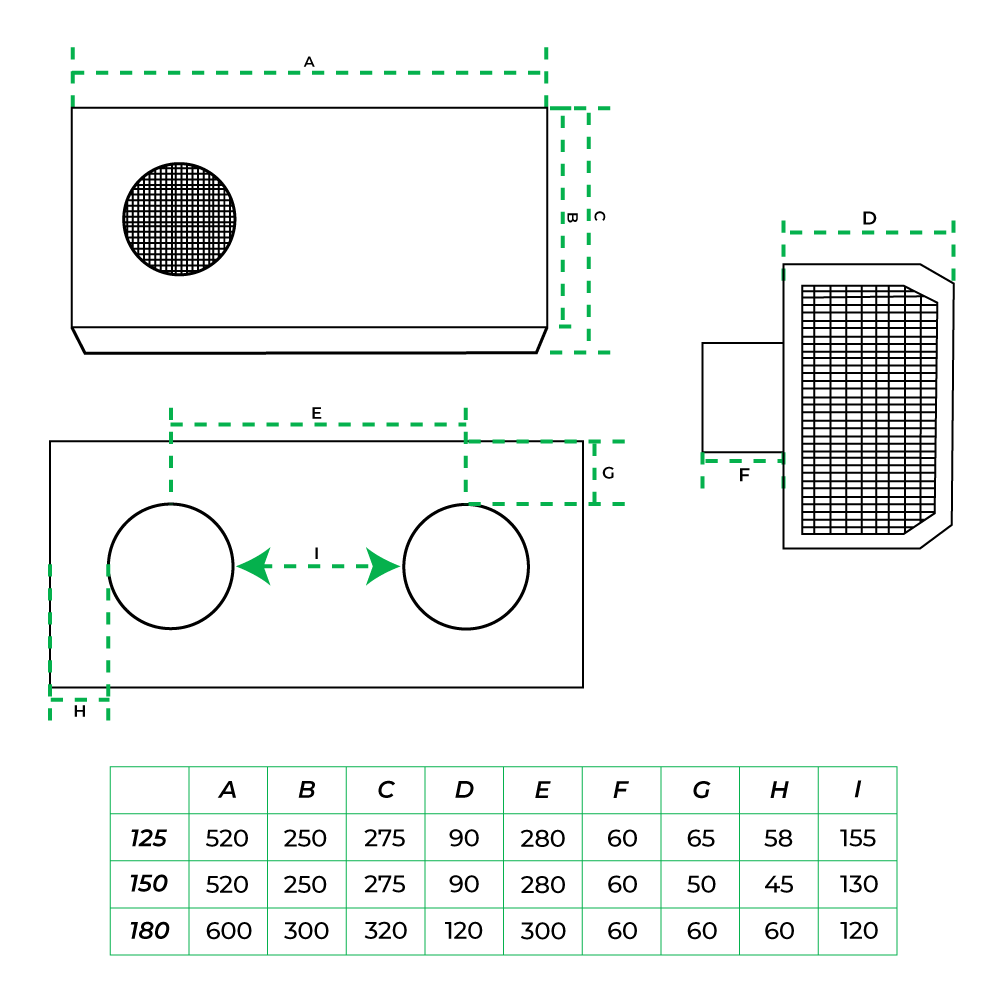

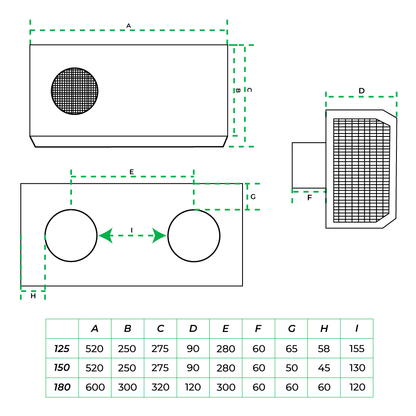

Dimensions

QV-2IN1SSG-125 L-522 x H-273 x W-92

QV-2IN1SSG-150 L-522 x H-273 x W-92

QV-2IN1SSG-180 L-602 x H-322 x W-120
