Description
Product Part Number
EBB-100NS
Product Overview

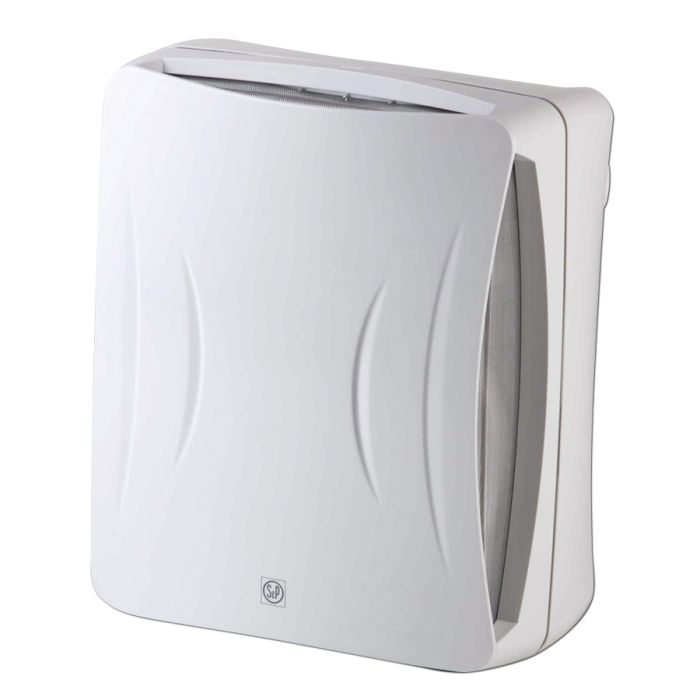

The S&P EBB-100NS is a two-speed centrifugal extract fan designed for bathrooms, toilets, utility rooms and other domestic or light-commercial spaces where the ventilation system has greater resistance than a standard axial fan can comfortably overcome.
Its forward-curved centrifugal impeller provides dependable airflow against higher duct pressures, making the fan suitable for installations involving longer or more restrictive duct runs. The fan can be surface mounted or incorporated into a recessed installation, depending on the requirements of the property.
Two selectable operating speeds allow the ventilation rate to be matched to the application. At high speed, the fan delivers up to 110m³/h, equivalent to approximately 30.6l/s, while the lower speed provides 70m³/h, equivalent to approximately 19.4l/s.
The fan is supplied with 80mm and 100mm outlet options and incorporates an automatic back-draught shutter to help prevent outside air from entering when the fan is switched off. Internal filters help reduce the amount of dust and dirt entering the fan.
Manufactured with a polypropylene body and impeller, the EBB-100NS features Class II electrical insulation, IP44 protection and is suitable for air temperatures up to 40°C.
Technical Specification
Manufacturer: Soler & Palau
Fan Type: Centrifugal extract fan
Application: Bathrooms, toilets, utility rooms and light-commercial spaces
Installation: Suitable for surface-mounted or recessed installation
Operating Speeds: 2 speed
High-Speed Airflow: 110m³/h
High-Speed Airflow: Approximately 30.6l/s
Low-Speed Airflow: 70m³/h
Low-Speed Airflow: Approximately 19.4l/s
Listed Rated Airflow: 31l/s
High-Speed Motor Speed: 1,500rpm
Low-Speed Motor Speed: 1,040rpm
High-Speed Power Consumption: 29W
Low-Speed Power Consumption: 15W
Supply Voltage: 230V
Frequency: 50Hz
High-Speed Sound Pressure Level: 44dB(A) at 1.5 metres
Low-Speed Sound Pressure Level: 34dB(A) at 1.5 metres
Impeller Type: Forward-curved centrifugal impeller
Duct Connection: 80mm or 100mm diameter
Back-Draught Shutter: Yes
Filters: Two metal filters
Timer: No
Humidity Sensor: No
Electrical Insulation: Class II
IP Rating: IP44
Maximum Air Temperature: 40°C
Body Material: Polypropylene
Impeller Material: Polypropylene
Colour: White
Front Dimensions: 211mm wide × 268mm high
Overall Depth with 100mm Outlet: 147mm
Overall Depth with 80mm Outlet: 139mm
Main Body Depth: Approximately 127mm
Outlet Diameter: Approximately 98mm or 79mm
Weight: Approximately 1.8kg
