Description
Product Part Number
DECOR-100-CD-Z
Product Overview

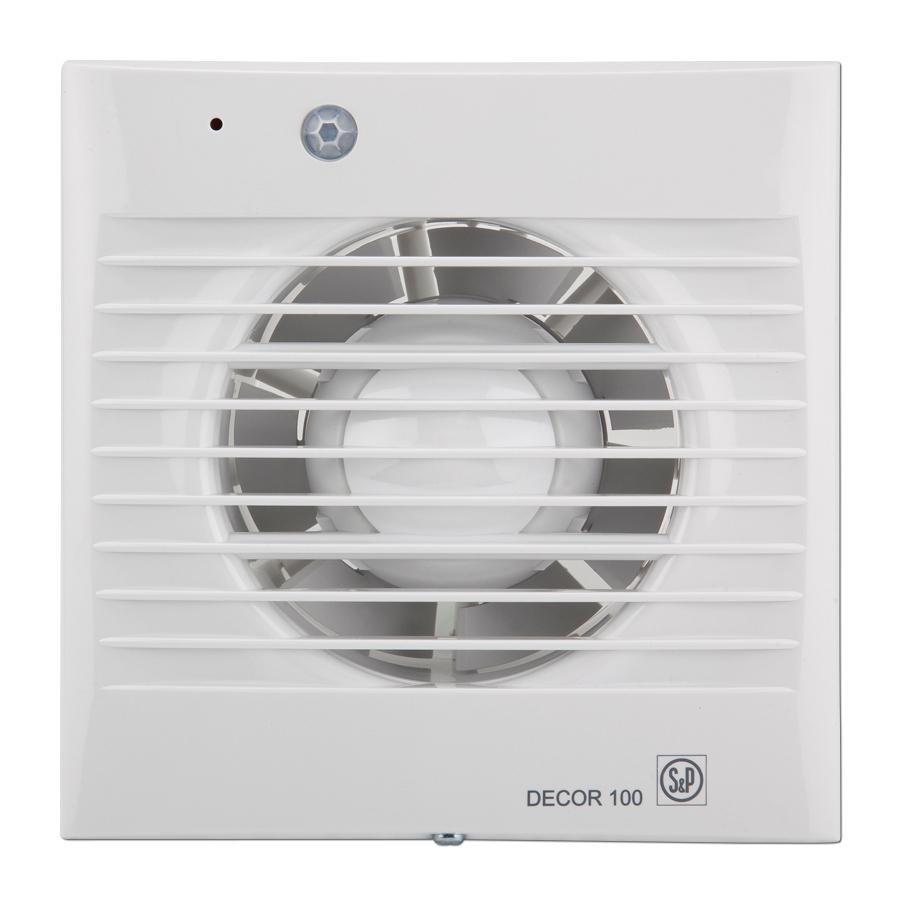

The S&P DECOR-100 CDZ is a compact 100mm axial extract fan designed to remove stale air, moisture and odours from bathrooms, toilets and other small domestic spaces. Its slimline white front grille provides a discreet finish, while the fan connects to standard 100mm circular ducting.
An integrated passive infrared movement sensor automatically switches the fan on when movement is detected within a maximum distance of approximately four metres. This provides demand-controlled ventilation without requiring the user to operate a separate wall switch.
The adjustable run-on timer allows the fan to continue operating for between approximately 1 and 30 minutes after movement was last detected, helping remove residual moisture and odours from the room.
The DECOR-100 CDZ also includes a visual operation indicator and an automatic back-draught shutter, which helps prevent outside air from entering when the fan is switched off. As a “Z” model, it incorporates a long-life ball-bearing motor for dependable operation.
Technical Specification
Manufacturer: Soler & Palau
Product Range: DECOR
Fan Type: Axial extract fan
Application: Bathrooms, toilets and other small domestic spaces
Installation: Wall mounted
Duct Connection: 100mm diameter
Maximum Free-Air Flow: 95m³/h
Maximum Free-Air Flow: Approximately 26.4l/s
Listed Rated Airflow: 22l/s
Fan Speed: 2,500rpm
Maximum Power Consumption: 13W
Supply Voltage: 230V
Frequency: 50Hz
Sound Pressure Level: 40dB(A) at 1.5 metres under free-air conditions
Movement Sensor: Passive infrared PIR sensor
Maximum Detection Distance: Approximately 4 metres
Run-On Timer: Yes
Timer Adjustment Range: Approximately 1–30 minutes
Operation Indicator: Yes
Back-Draught Shutter: Automatic back-draught shutter
Humidity Sensor: No
Motor Bearings: Long-life ball bearings
Motor Protection: Thermal overload protection
Electrical Insulation: Class II
IP Rating: IPX4
Maximum Air Temperature: 40°C
Housing Material: Injection-moulded plastic
Colour: White
Front Dimensions: 158mm × 158mm
Overall Depth: 85mm
Spigot Diameter: Approximately 98mm
Installation Depth: Approximately 68mm
Weight: Approximately 0.44kg
