Description
Product Part Number
DECOR-100-C-Z
Product Overview

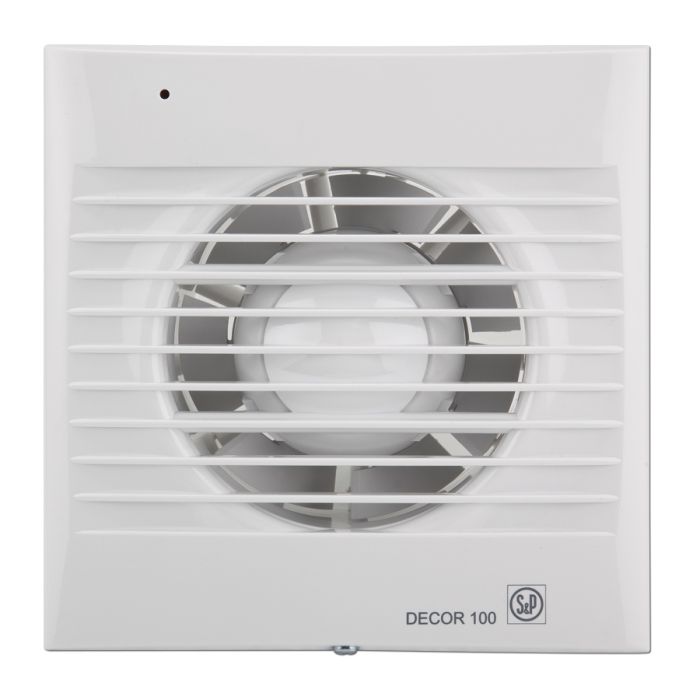

The S&P DECOR-100 CZ is a compact 100mm axial extract fan designed to provide effective ventilation in bathrooms, toilets and other small domestic spaces. Its slim, unobtrusive front grille makes it suitable for wall or ceiling installation where a discreet ventilation solution is required.
The fan includes an automatic back-draught shutter that helps prevent outside air from entering the room when the fan is switched off. An integrated operation indicator provides a clear visual indication when the fan is running.
The DECOR-100 CZ is fitted with a ball-bearing motor for reliable, long-term operation, along with built-in thermal protection. Delivering a maximum free-air flow rate of 95m³/h, the fan is suitable for connection to 100mm diameter ducting.
Technical Specification
Manufacturer: Soler & Palau
Product Range: DECOR
Fan Type: Axial extract fan
Installation: Suitable for wall or ceiling mounting
Duct Connection: 100mm diameter
Maximum Airflow: 95m³/h
Maximum Airflow: Approximately 26.4l/s
Fan Speed: 2,500rpm
Power Consumption: 13W
Supply Voltage: 230V
Frequency: 50Hz
Sound Pressure Level: 40dB(A) at 1.5 metres
Operation Indicator: Yes
Back-Draught Shutter: Yes
Timer: No
Humidity Sensor: No
Motor Bearings: Ball bearing
Motor Protection: Thermal overload protection
Electrical Class: Class II
IP Rating: IPX4
Maximum Operating Temperature: 40°C
Colour: White
Front Dimensions: 158mm × 158mm
Overall Depth: 85mm
Weight: Approximately 0.44kg
