Description
Product Part Number
SILENT-100-CDZ
Product Overview

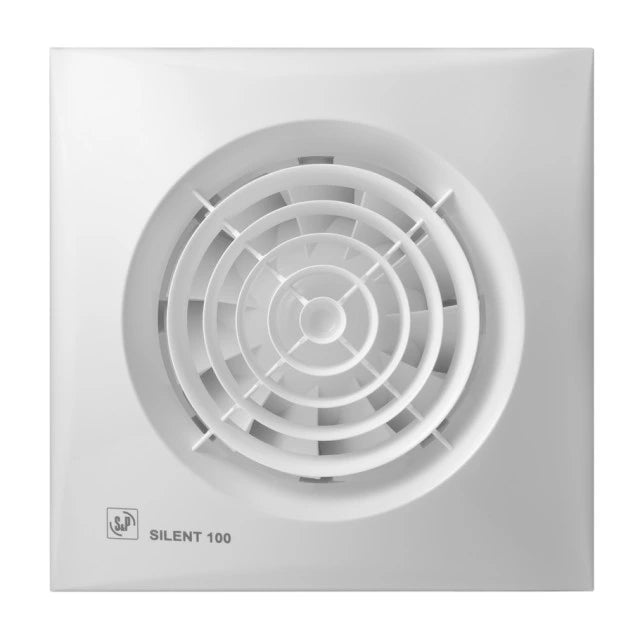

The S&P SILENT-100 CDZ is a quiet-running 100mm axial extract fan designed to remove stale air, moisture and odours from bathrooms, toilets, en-suites and other small domestic spaces. It is suitable for wall or ceiling mounting and connects to standard 100mm circular ducting.
An integrated passive infrared movement sensor automatically switches the fan on when movement is detected within approximately four metres. This provides demand-controlled extraction without requiring the user to operate a separate switch.
The adjustable run-on timer allows the fan to continue operating for between 1 and 30 minutes after movement was last detected, helping remove residual moisture and odours once the room is no longer occupied.
The fan motor is mounted on vibration-absorbing silent elastic blocks to reduce noise transmission into the surrounding wall or ceiling. It also includes an operation indicator and an automatic back-draught shutter, helping prevent outside air from entering when the fan is switched off.
Technical Specification
Manufacturer: Soler & Palau
Product Range: SILENT
Fan Type: Low-noise axial extract fan
Application: Bathrooms, toilets, en-suites and other small domestic spaces
Installation: Suitable for wall or ceiling mounting
Window Installation: Possible with the appropriate optional window kit
Duct Connection: 100mm diameter
Maximum Airflow: 95m³/h
Maximum Airflow: Approximately 26.4l/s
Listed Rated Airflow: 26l/s
Fan Speed: 2,400rpm
Maximum Power Consumption: 8W
Supply Voltage: 230V
Frequency: 50Hz
Sound Pressure Level: 26.5dB(A) at 3 metres under free-air conditions
Movement Sensor: Passive infrared PIR sensor
Maximum Detection Distance: Approximately 4 metres
Run-On Timer: Yes
Timer Adjustment Range: 1–30 minutes
Operation Indicator: Pilot light
Back-Draught Shutter: Automatic back-draught shutter
Humidity Sensor: No
Motor Bearings: Long-life ball bearings
Motor Mounting: Vibration-absorbing silent elastic blocks
Motor Protection: Integrated thermal overload protection
Electrical Insulation: Class II
IP Rating: IP45
Maximum Air Temperature: 40°C
Housing Material: Injection-moulded plastic
Colour: White
Front Dimensions: 158mm × 158mm
Overall Depth: 109.3mm
Rear Casing Depth: Approximately 84.6mm
Installation Depth: 79mm
Spigot Diameter: 98.9mm
Weight: Approximately 0.57kg
