Description
Product Part Number
SILENT-100-CHZ
Product Overview

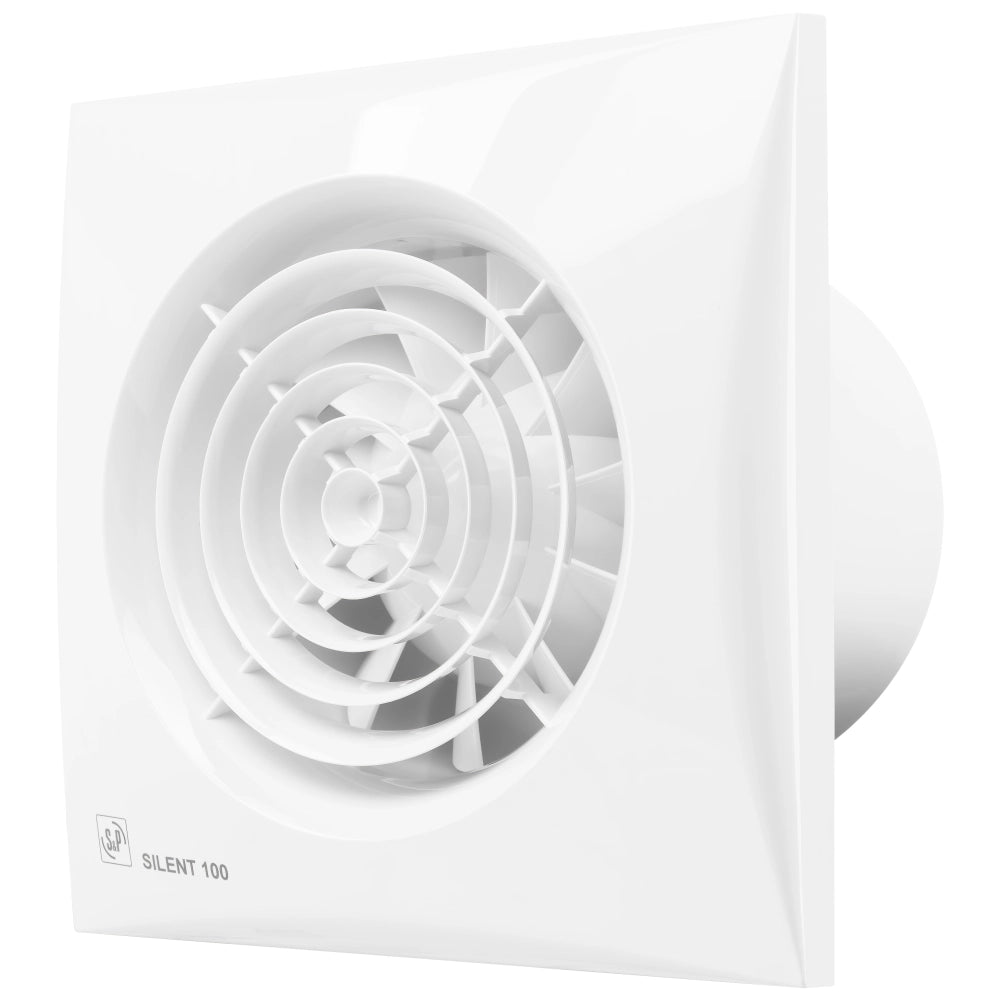

The S&P SILENT-100 CHZ is a quiet-running 100mm axial extract fan designed to remove humid, stale air from bathrooms, toilets, en-suites and other small domestic spaces. It is suitable for wall or ceiling mounting and connects to standard 100mm circular ducting.
An integrated electronic humidistat automatically activates the fan when the relative humidity rises above the selected level. The humidity setting can be adjusted between 60% and 90% RH, helping the fan respond automatically to moisture generated through showering, bathing and other everyday activities.
The adjustable run-on timer allows the fan to continue operating after the humidity has fallen below the selected level or after the connected switch has been turned off. This helps remove remaining moisture and odours from the room.
The motor is mounted on specially designed silent elastic blocks that absorb vibration and reduce the transmission of noise into the surrounding wall or ceiling. The fan also includes an operation indicator and automatic back-draught shutter, which helps prevent outside air from entering when the fan is switched off.
Technical Specification
Manufacturer: Soler & Palau
Product Range: SILENT
Fan Type: Low-noise axial extract fan
Application: Bathrooms, toilets, en-suites and other small domestic spaces
Installation: Suitable for wall or ceiling mounting
Duct Connection: 100mm diameter
Maximum Airflow: 95m³/h
Maximum Airflow: Approximately 26.4l/s
Listed Rated Airflow: 26l/s
Fan Speed: 2,400rpm
Maximum Power Consumption: 8W
Supply Voltage: 230V
Frequency: 50Hz
Sound Pressure Level: 26.5dB(A) at 3 metres under free-air conditions
Humidity Sensor: Adjustable electronic humidistat
Humidity Adjustment Range: 60–90% RH
Run-On Timer: Yes
Timer Adjustment Range: Approximately 2–20 minutes
Operation Indicator: Pilot light
Back-Draught Shutter: Automatic back-draught shutter
PIR Movement Sensor: No
Motor Bearings: Long-life ball bearings
Motor Mounting: Vibration-absorbing silent elastic blocks
Motor Protection: Thermal overload protection
Electrical Insulation: Class II
IP Rating: IP45
Maximum Air Temperature: 40°C
Housing Material: Injection-moulded plastic
Colour: White
Front Dimensions: 158mm × 158mm
Overall Depth: 109.3mm
Rear Casing Depth: Approximately 84.6mm
Installation Depth: 79mm
Spigot Diameter: 98.9mm
Weight: Approximately 0.57kg
