Description
Product Part Number
TD-350/125 Silent
Product Overview

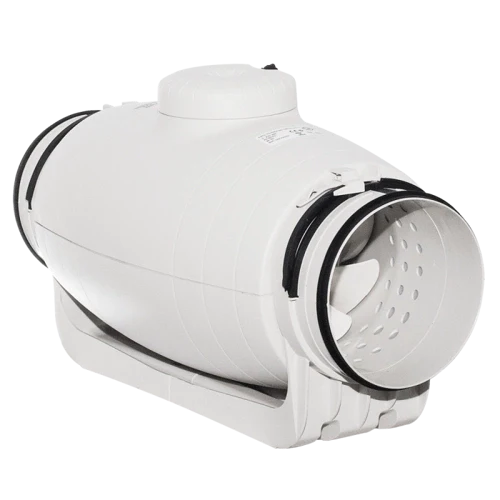

The TD-350/125 SILENT is a high-performance, ultra-quiet in-line duct fan designed for applications requiring increased airflow without compromising acoustic comfort. Its mixed-flow impeller delivers excellent pressure and airflow characteristics, while the internally insulated casing ensures exceptionally low noise output.
Certified by the Noise Abatement Society, this model is ideal for workplaces, commercial spaces, and residential projects where sound levels must be kept to a minimum. The removable fan body and vibration-absorbing mounting system allow fast installation and straightforward maintenance.
Key Features
- Noise Abatement Society certified
- High airflow with very low noise output
- Mixed-flow impeller for efficient performance
- Sound-absorbing internal insulation
- Removable motor body for maintenance
- Rubber vibration-absorbing seals
- Rotatable terminal box for flexible wiring
Technical Specification
| Specification | Value |
|---|---|
| Model | TD-350/125 SILENT |
| Power supply | 230V / 50Hz |
| Motor type | 2-speed, speed controllable |
| Max airflow | 330 m³/h |
| Max absorbed power | 27 W |
| Max current | 0.12 A |
| Sound pressure level* | 23 dB(A) |
| Duct diameter | 125 mm |
| Protection rating | IP44 |
| Operating temperature | -20 °C to +40 °C |
| Weight | 5.0 kg |
| Construction | High-quality plastic housing |
| Bearings | Ball bearings |
| Thermal protection | Yes |
