Description
Product Part Number
QV-100-MSV-9016 - QV 100mm Metal Air Supply Valve - with Mounting Collar
QV-125-MSV-9016 - QV 125mm Metal Air Supply Valve - with Mounting Collar
QV-150-MSV-9016 - QV 150mm Metal Air Supply Valve - with Mounting Collar
Product Overview

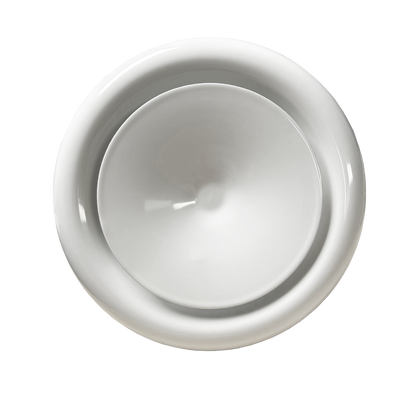

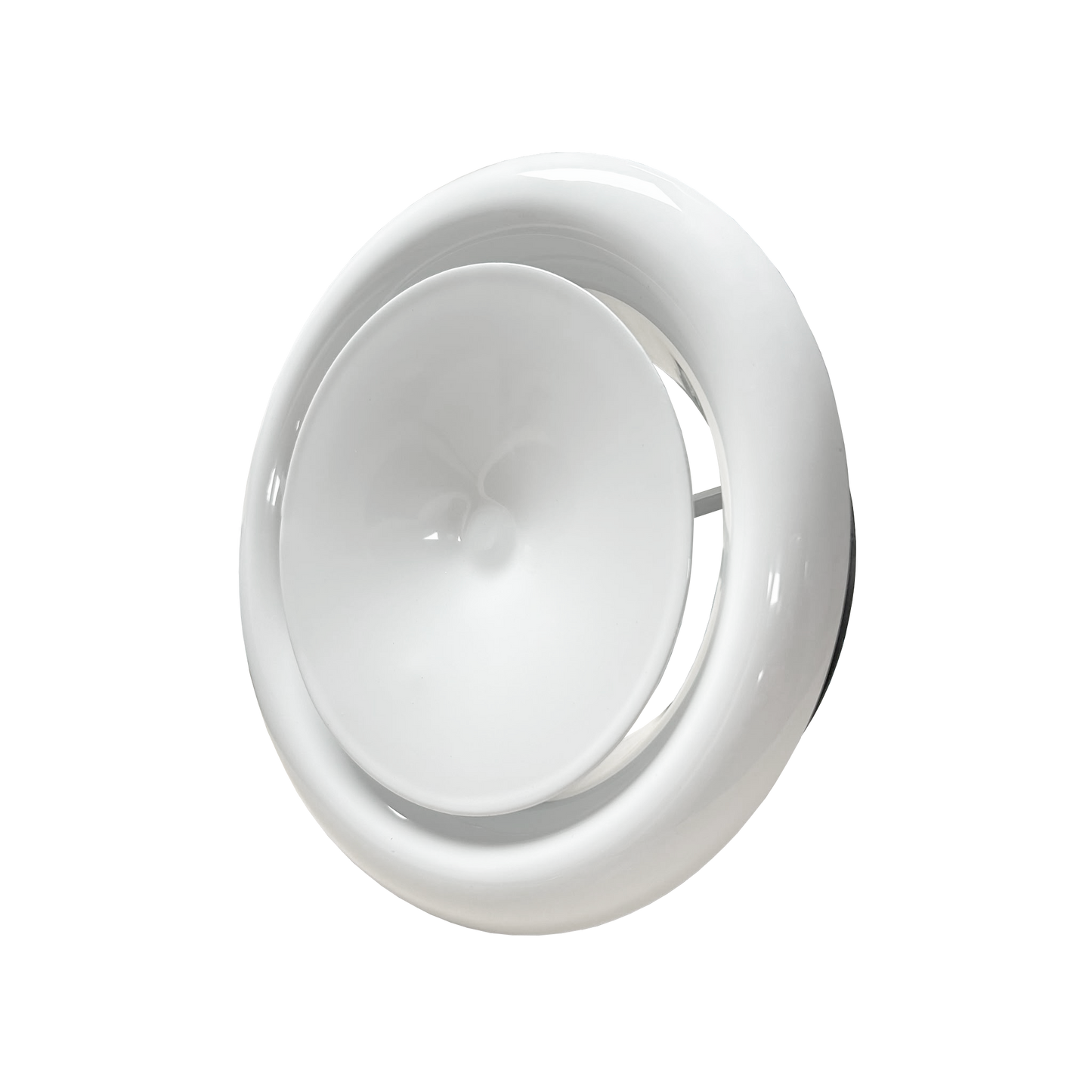

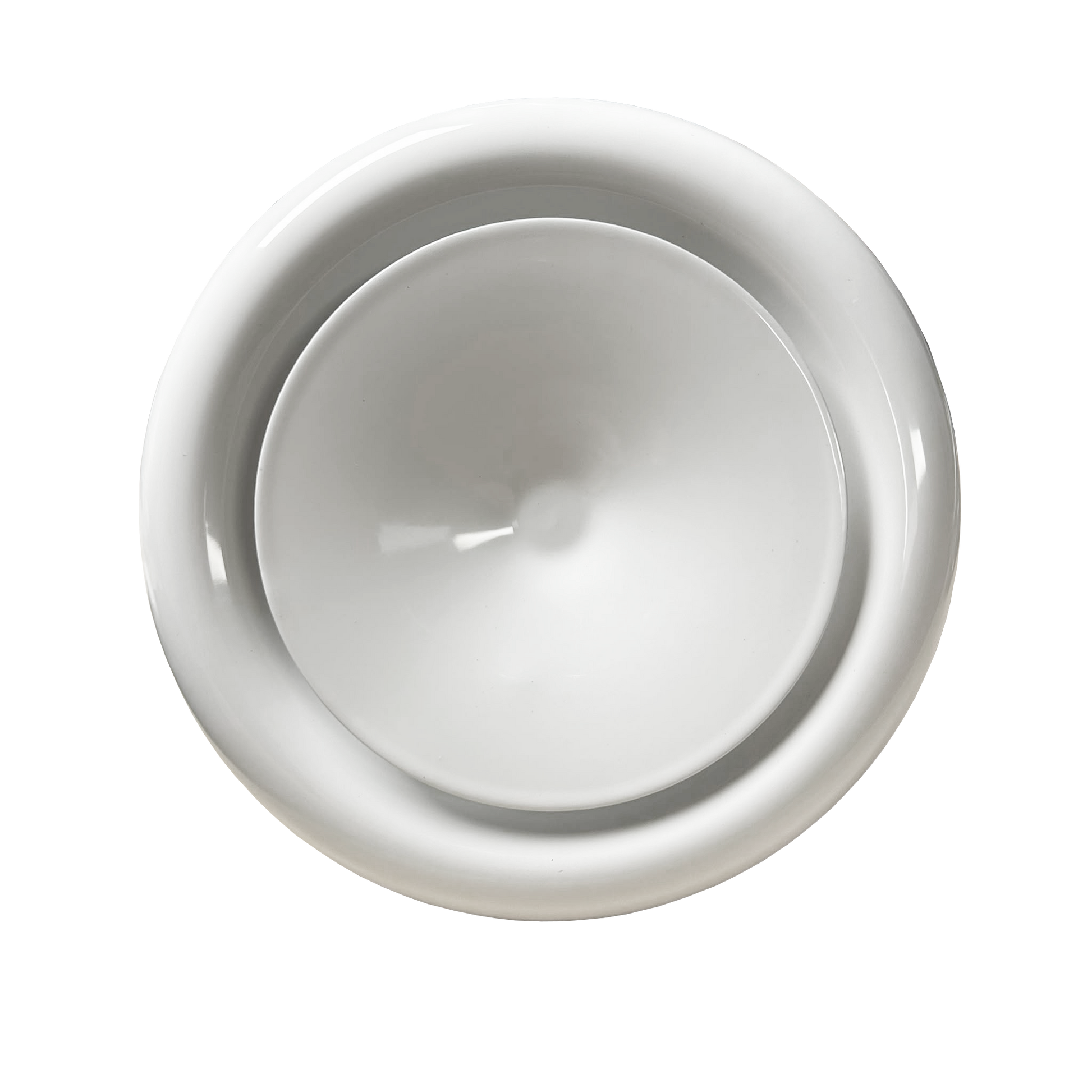

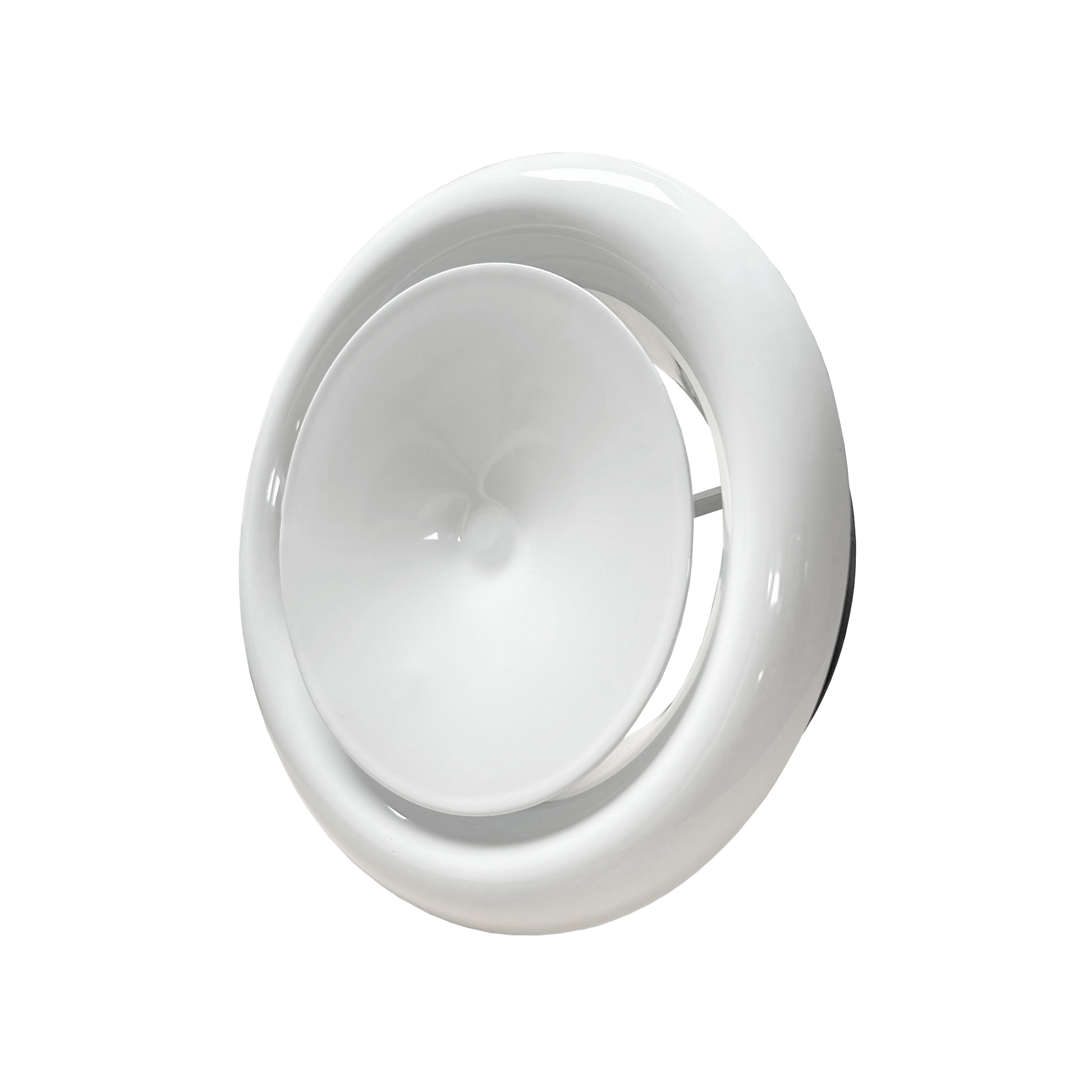

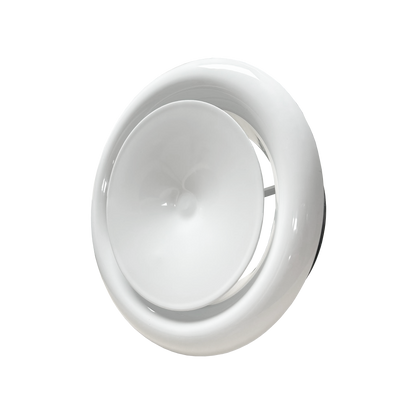

The Quiet-Vent Metal Air Supply Valve provides a durable and discreet terminal for introducing fresh air into domestic and light commercial ventilation systems. Its adjustable central disc allows the airflow opening to be regulated during system commissioning and balancing.
Manufactured from sheet steel with a white RAL 9016 finish, the valve offers a clean appearance suitable for modern interiors. Each valve is supplied with a metal mounting collar for a secure connection to circular ventilation ducting and can be installed in either a wall or ceiling.
Key Features
- Designed for supply-air applications
- Adjustable central disc for airflow regulation
- Supplied with a metal mounting collar
- Durable sheet-steel construction
- White RAL 9016 finish
- Suitable for wall or ceiling installation
- Compatible with circular ventilation ducting
- Smooth surface for straightforward cleaning
- Available in 100mm, 125mm and 150mm sizes
Technical Specification
| Specification | Details |
|---|---|
| Product type | Adjustable metal air supply valve |
| Application | Supply ventilation systems |
| Material | Sheet steel |
| Surface finish | Powder-coated |
| Colour | White, RAL 9016 |
| Installation position | Wall or ceiling |
| Airflow adjustment | Rotating central control disc |
| Setting retention | Locking nut |
| Duct connection | Circular |
| Mounting collar | Included |
| Available connection sizes | 100mm, 125mm and 150mm |
| Maintenance | Smooth, wipe-clean surface |
