Description
Product Part Number
QV-125-MEVS-9016
Product Overview

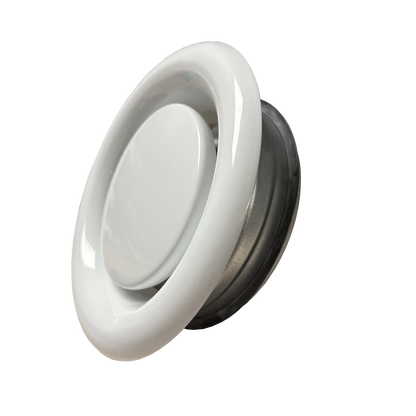

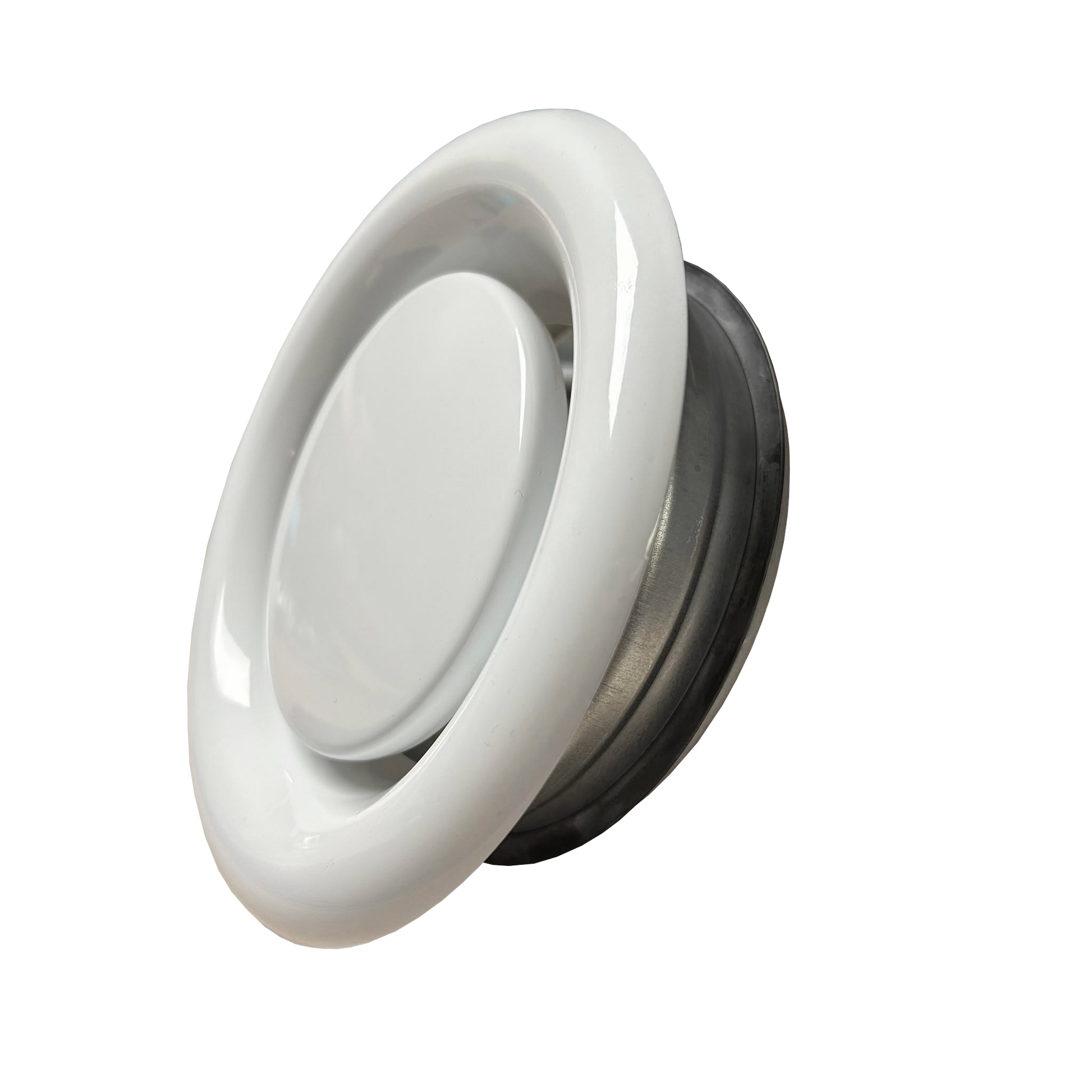

The Quiet-Vent 125mm Metal Air Exhaust Valve is a durable and discreet terminal designed for extract ventilation systems. Its adjustable central disc allows the airflow opening to be regulated during system balancing, while the white RAL 9016 finish provides a neat appearance for wall or ceiling installations.

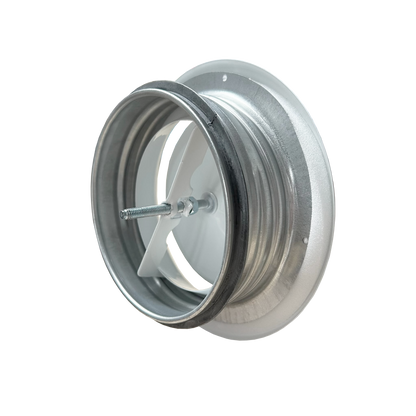

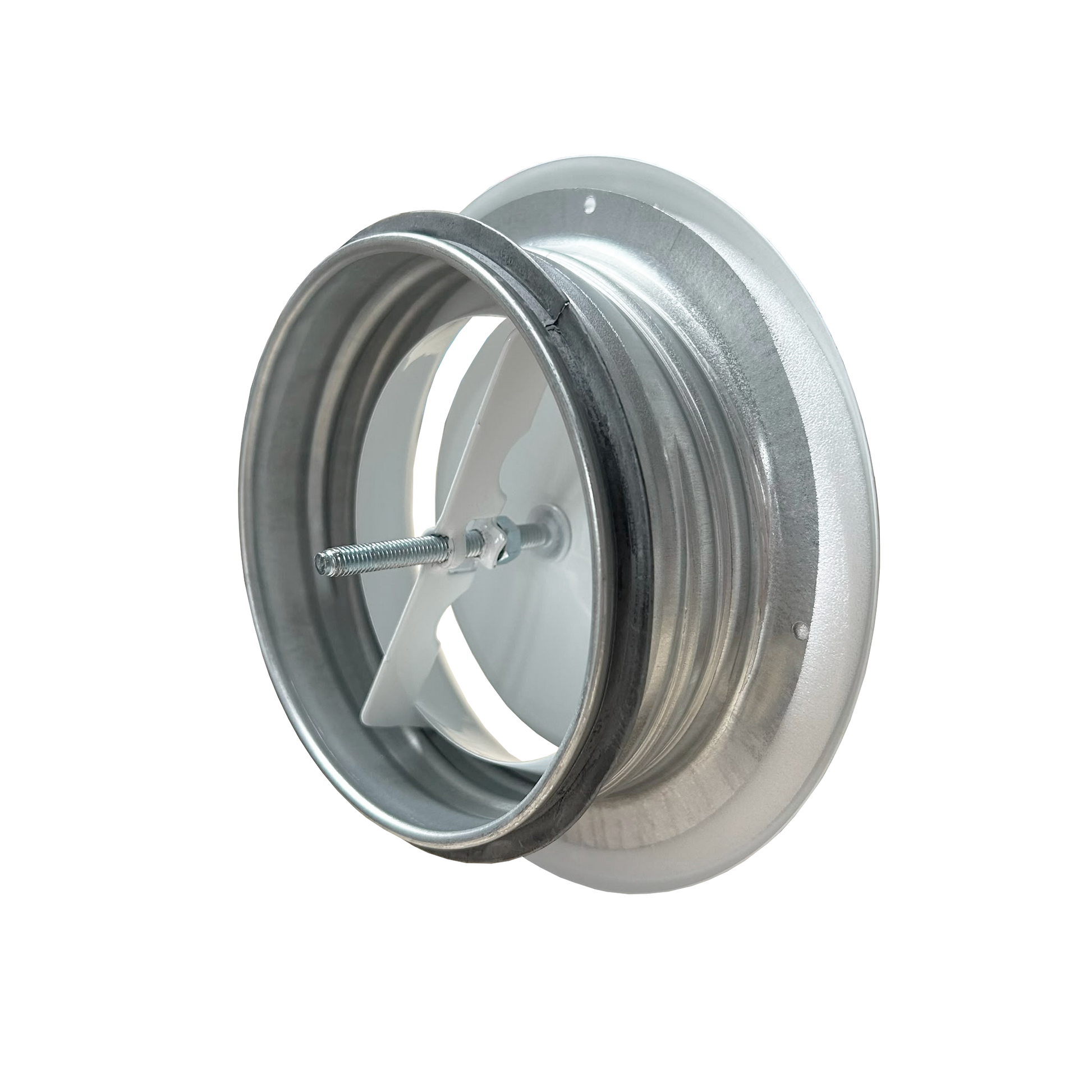

Supplied with a metal mounting collar and sealing ring, the valve provides a secure connection to circular ducting. The sealing ring helps form an airtight seal around the valve body, reducing unwanted air leakage at the connection.
Key Features
- Designed for extract-air applications
- 125mm circular duct connection
- Adjustable central disc for airflow regulation
- Locking nut retains the selected airflow setting
- Supplied with a metal mounting collar
- Includes a cellular plastic sealing ring
- Sealing ring helps provide an airtight connection
- Durable sheet-steel construction
- White RAL 9016 finish
- Suitable for wall or ceiling installation
- Smooth surface for straightforward cleaning
- Designed for low-noise air extraction
Technical Specification
| Specification | Details |
|---|---|
| Product code | QV-125-MEVS-9016 |
| Product type | Adjustable metal air exhaust valve |
| Application | Extract ventilation systems |
| Nominal connection size | 125mm |
| Material | Sheet steel |
| Finish | White coated finish |
| Colour | RAL 9016 |
| Airflow adjustment | Rotating central control disc |
| Setting retention | Locking nut |
| Installation | Wall or ceiling |
| Duct connection | Circular |
| Mounting collar | Included |
| Sealing ring | Included |
| Sealing-ring material | Cellular plastic |
| Maintenance | Smooth, wipe-clean surface |
| Suitable systems | Domestic and light commercial ventilation systems |
