Description
Product Part Number
QV-125-MSVS-9016
Product Overview

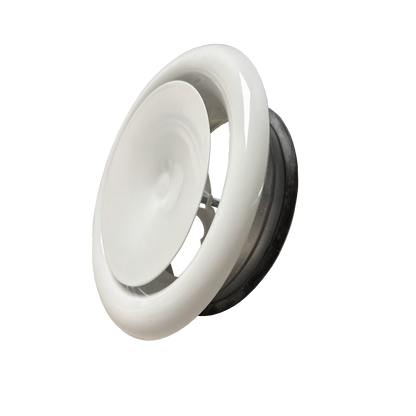

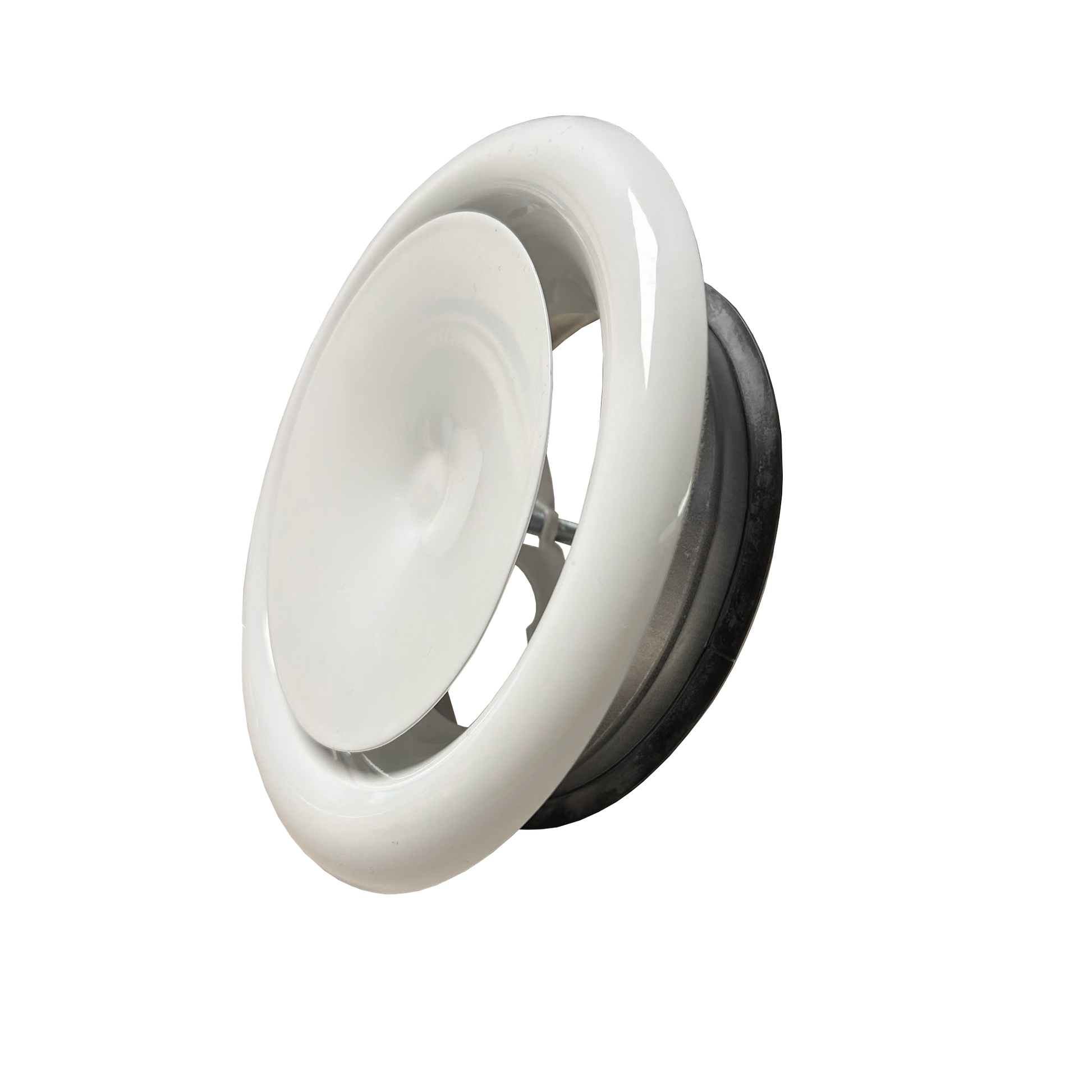

The Quiet-Vent 125mm Metal Air Supply Valve is a durable and discreet terminal designed for introducing fresh air into domestic and light commercial ventilation systems. Its adjustable central disc allows the airflow opening to be regulated during system commissioning and balancing.

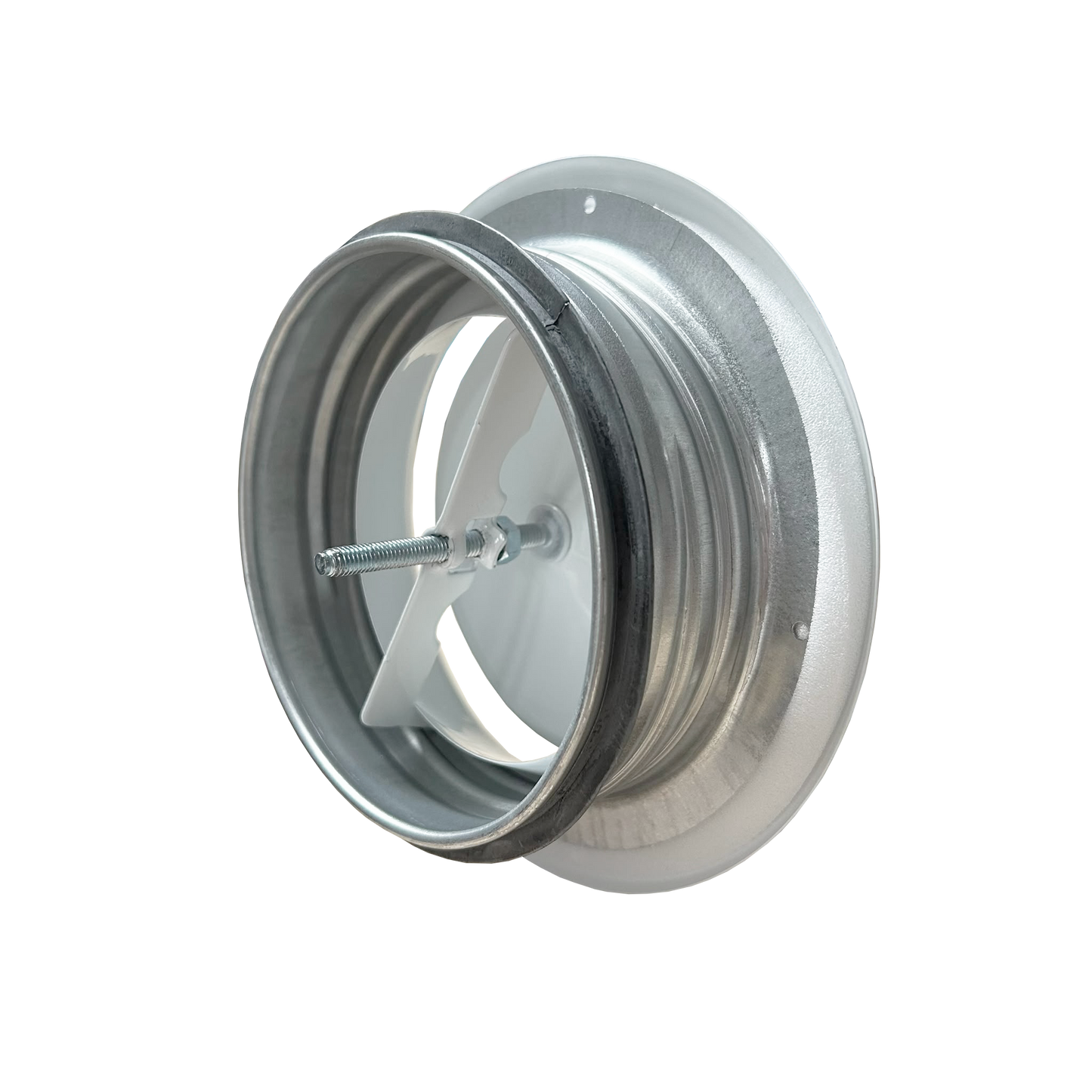

Manufactured from sheet steel with a white RAL 9016 finish, the valve provides a neat appearance for wall or ceiling installations. It is supplied with a metal mounting collar and sealing ring to provide a secure connection to circular ducting and help reduce unwanted air leakage around the connection.
Key Features
- Designed for supply-air applications
- 125mm circular duct connection
- Adjustable central disc for airflow regulation
- Locking nut retains the selected airflow setting
- Supplied with a metal mounting collar
- Includes a sealing ring
- Helps provide a secure and airtight duct connection
- Durable sheet-steel construction
- White RAL 9016 finish
- Suitable for wall or ceiling installation
- Smooth, easy-to-clean surface
- Suitable for domestic and light commercial ventilation systems
Technical Specification
| Specification | Details |
|---|---|
| Product code | QV-125-MSVS-9016 |
| Product type | Adjustable metal air supply valve |
| Application | Supply ventilation systems |
| Nominal connection size | 125mm |
| Material | Sheet steel |
| Finish | White coated finish |
| Colour | RAL 9016 |
| Airflow adjustment | Rotating central control disc |
| Setting retention | Locking nut |
| Installation | Wall or ceiling |
| Duct connection | Circular |
| Mounting collar | Included |
| Sealing ring | Included |
| Sealing-ring material | Cellular plastic |
| Maintenance | Smooth, wipe-clean surface |
| Suitable systems | Domestic and light commercial ventilation systems |
