Description
Product Part Number
VS-125-GPV
Product Overview

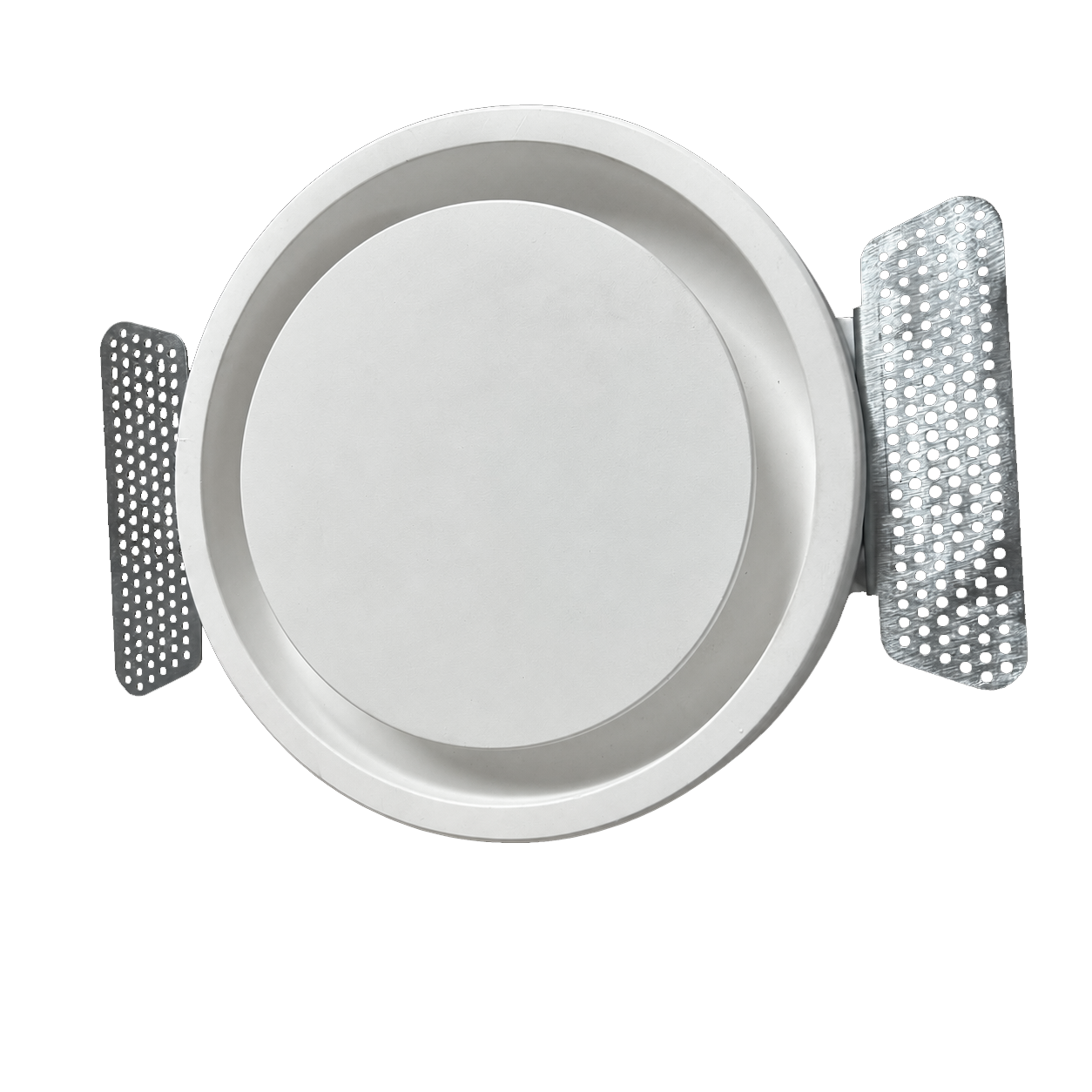

The VS 125mm Plaster Circular Diffuser provides a discreet, frameless air terminal for modern ventilation installations. Designed to be integrated into a plasterboard ceiling or wall, the diffuser can be plastered and painted to match the surrounding surface, leaving a clean circular opening visible after installation.
Suitable for supply or extract ventilation, its circular design distributes air neatly while maintaining a minimal interior finish. The diffuser connects to 125mm circular ducting and can be paired with the compatible VS-125-FFCD foam damper where additional airflow regulation is required. Circular plaster diffusers of this type are commonly suitable for both supply and extract systems and are designed to form a permanent, flush connection with the surrounding plasterboard.
Key Features
- Frameless plaster-in circular design
- Suitable for supply or extract ventilation
- Designed for 125mm circular ducting
- Suitable for plasterboard ceilings or walls
- Can be plastered and painted to match the surrounding surface
- Provides a clean, discreet interior finish
- Suitable for domestic and light commercial ventilation systems
- Compatible with the VS-125-FFCD foam damper
- Smooth circular design supports even air distribution
- Durable plaster-based construction
Technical Specification
| Specification | Details |
|---|---|
| Product code | VS-125-GPV |
| Product type | Plaster-in circular air diffuser |
| Application | Supply or extract ventilation |
| Nominal connection size | 125mm |
| Shape | Circular |
| Material | Plaster/gypsum composite |
| Colour | White |
| Finish | Paintable |
| Installation | Plasterboard ceiling or wall |
| Mounting style | Frameless, flush-mounted |
| Duct connection | Circular |
| Compatible duct size | 125mm |
| Airflow regulation | Compatible with optional VS-125-FFCD foam damper |
| Damper included | No |
| Suitable systems | Domestic and light commercial ventilation systems |
| Fire rating | Not fire rated unless separately certified |
