Description
Product Part Number
QV90-06150TE
Product Overview

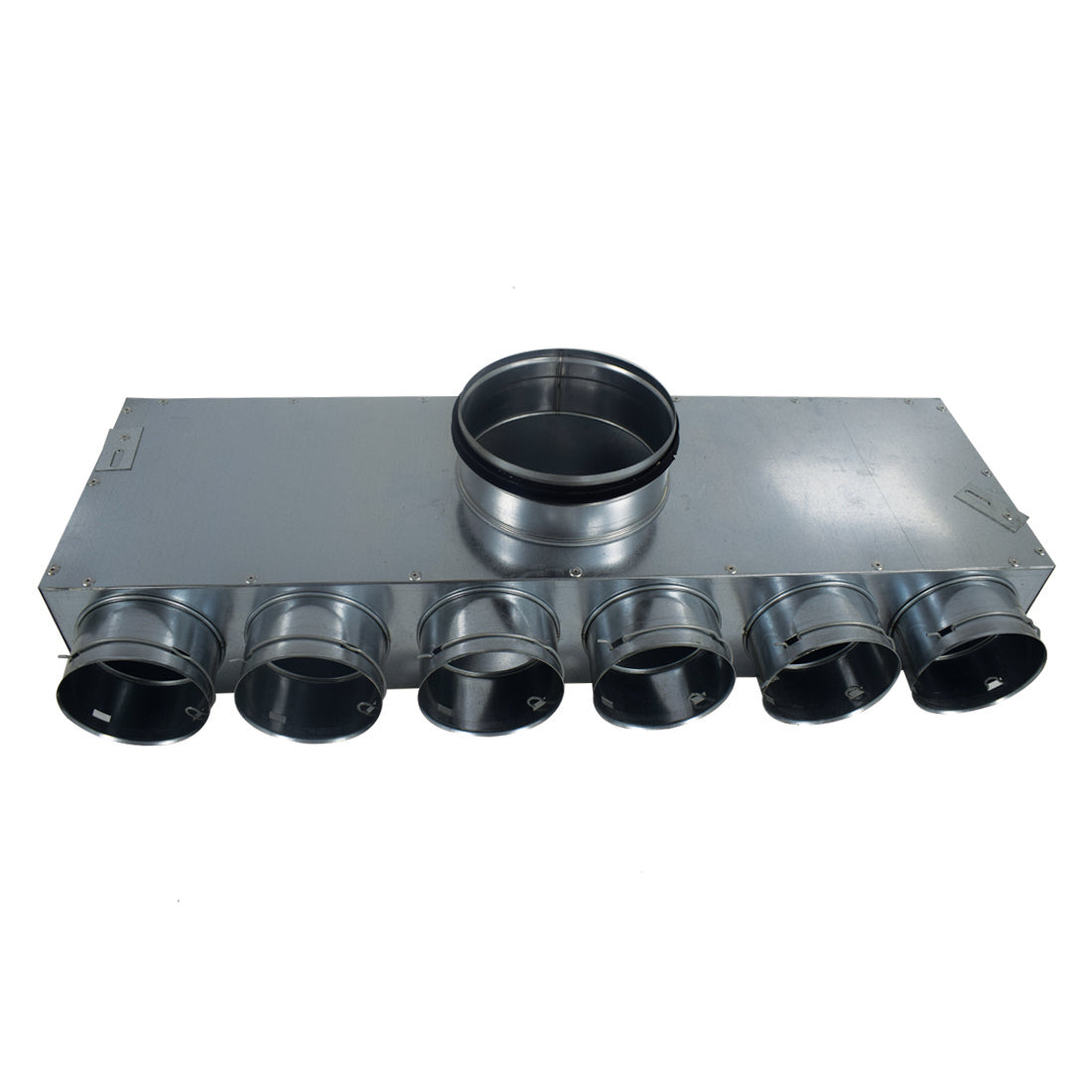

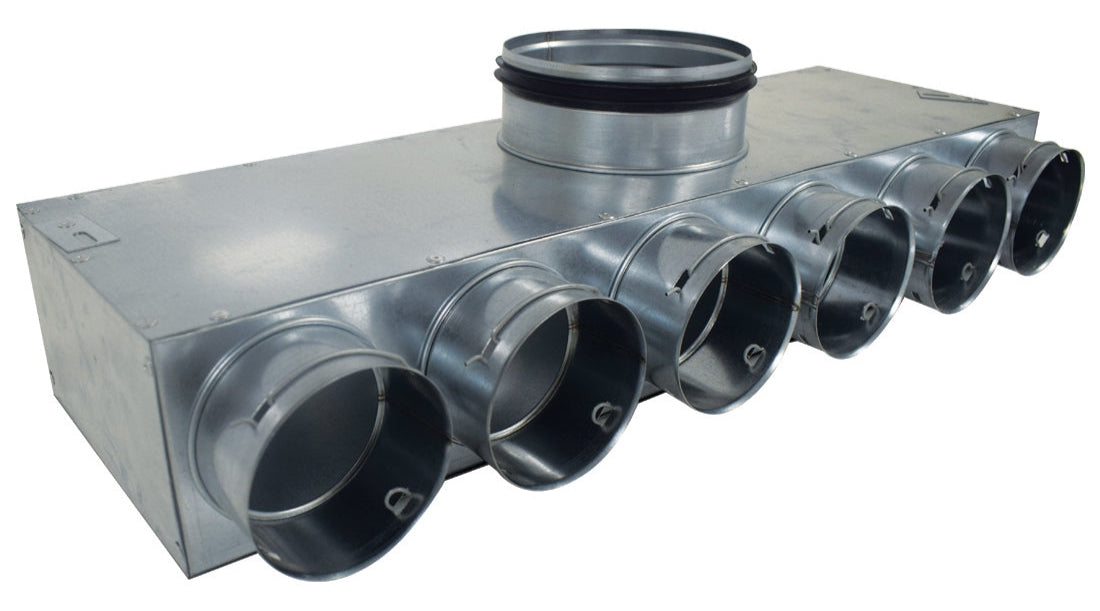

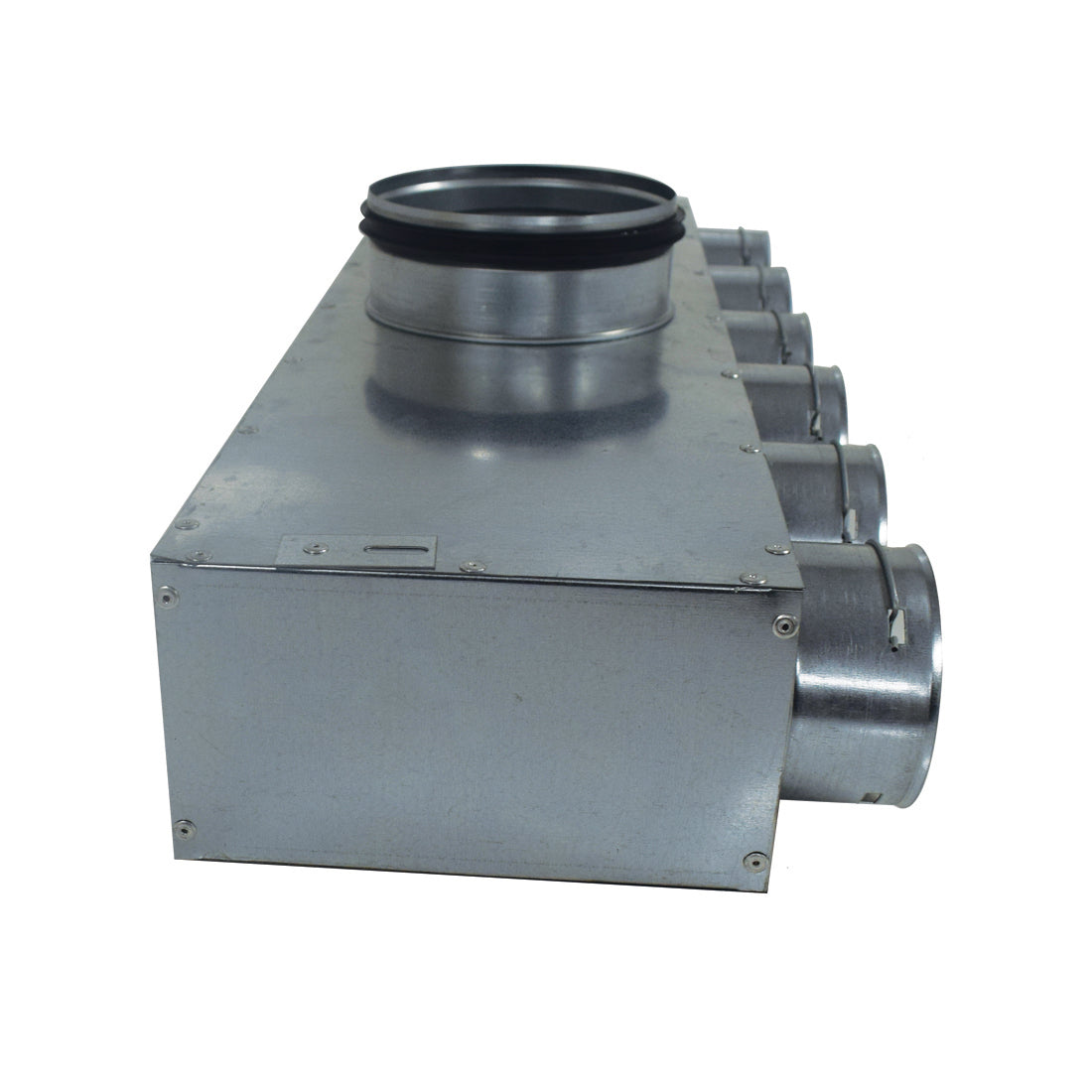

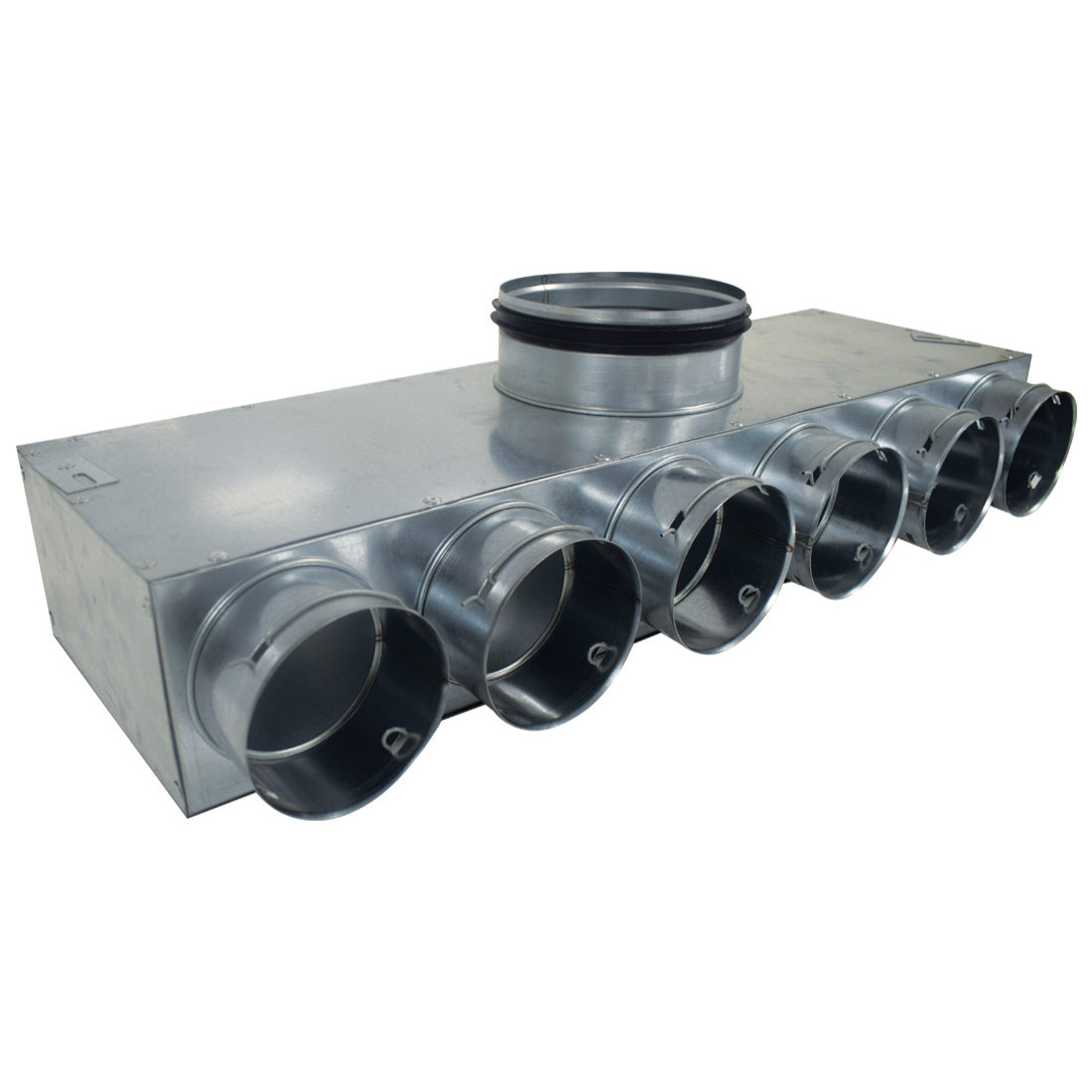

The Quiet-Vent 6-Point 90mm Top Entry Distribution Box is designed for efficient air distribution within ventilation systems. Ideal for top entry installations, it features a 150mm spigot and is best mounted on ceilings or floors. The box is engineered to work seamlessly with radial pipe systems and requires sealing rings to ensure proper functionality.
Key Features
6 Points of Air Distribution – Allows for effective air supply or extraction through six separate points
Sealing Rings Required – Ensures airtight connections during installation
Recommended Installation – Secure to ceiling or floor, insert radial pipe until clips engage with pipe

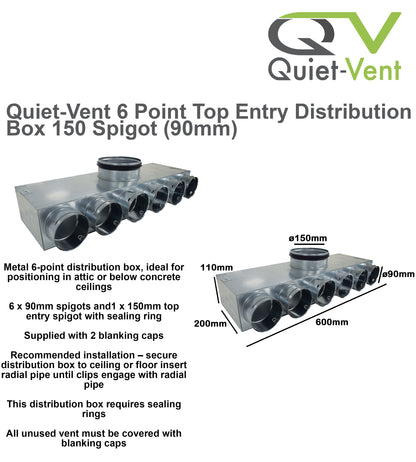

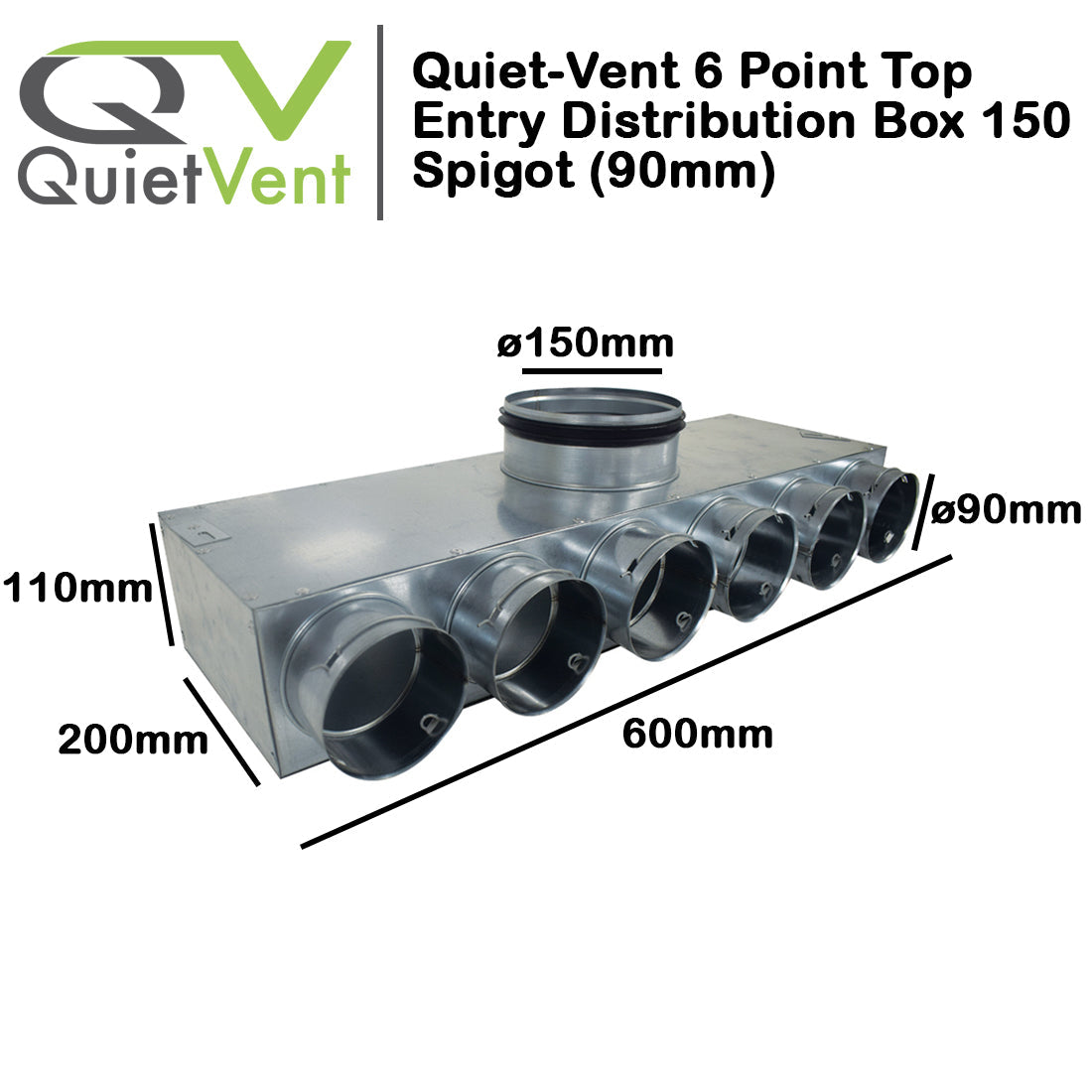

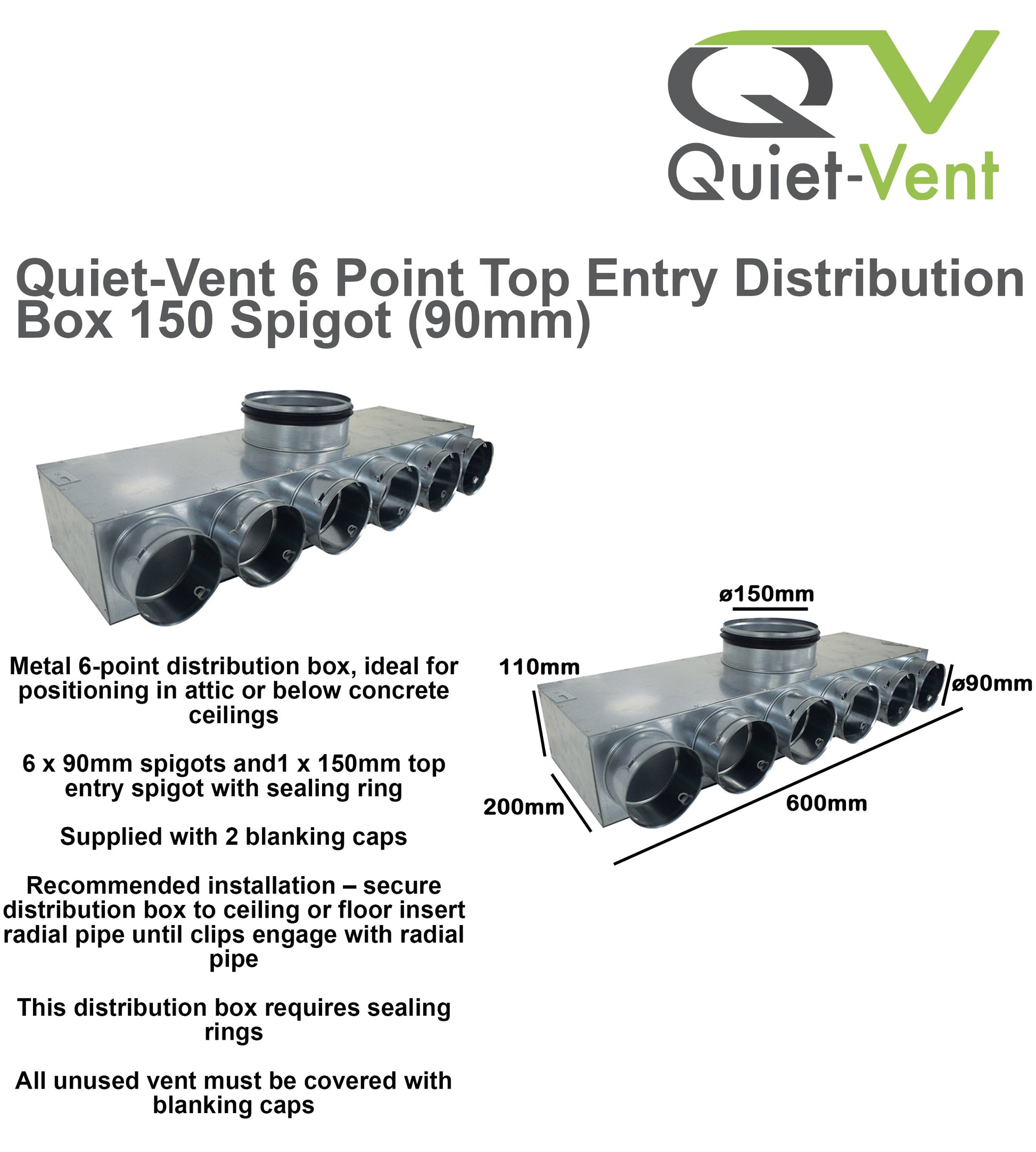

Dimensions – Length: 600mm, Width: 200mm, Height: 110mm
Spigot Size – 150mm 2 x blanking caps supplied – supplied to cover unused ports
Installation
- Mount the distribution box on the ceiling or floor
- Insert the radial pipe until the clips engage with the pipe
- Use sealing rings and cover unused vents with blanking caps for an airtight seal
This distribution box is perfect for systems requiring fewer outlets while maintaining airflow efficiency and is designed for compatibility with Quiet-Vent radial pipe systems.
