Description
Product Part Number
QV75-10150RE
Product Overview

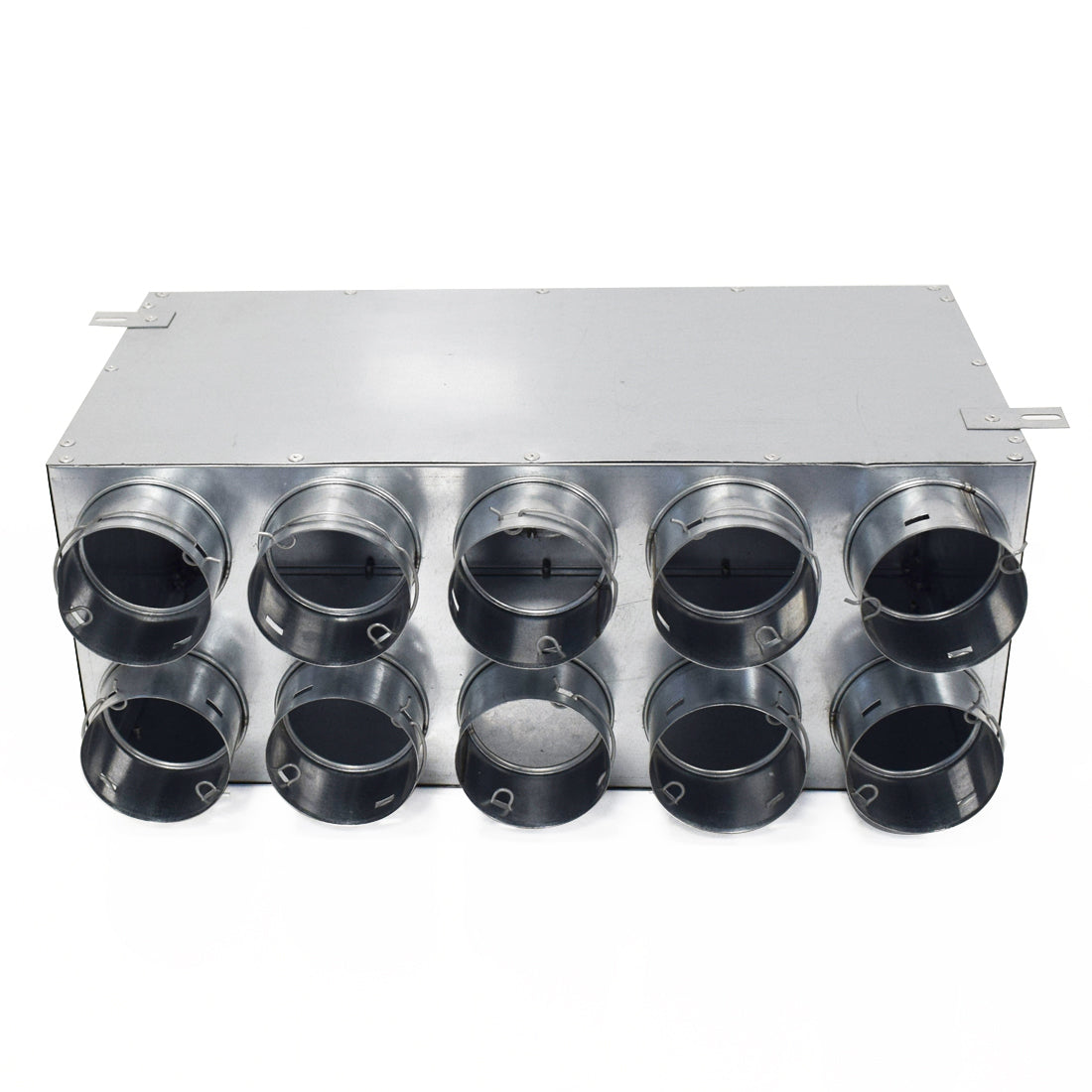

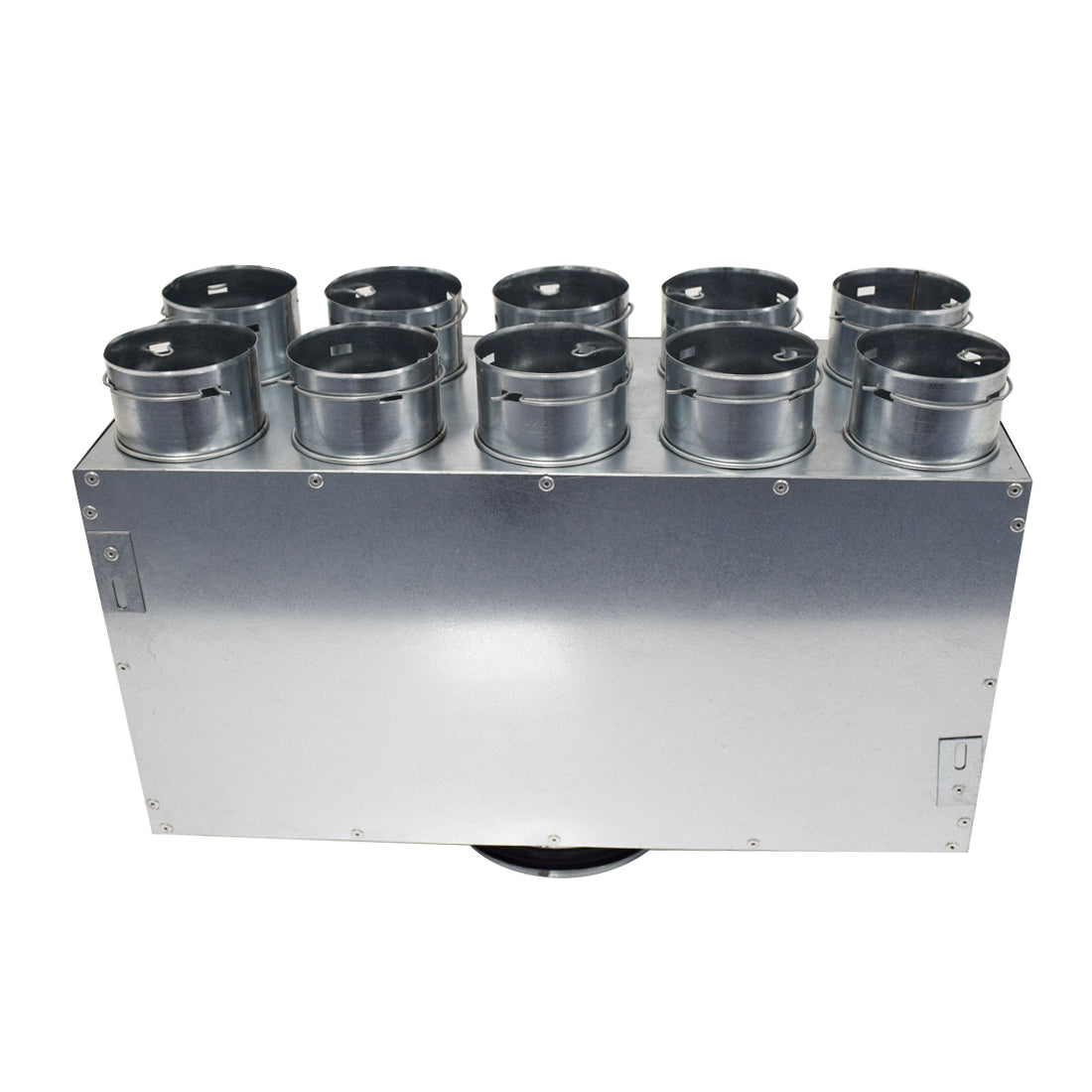

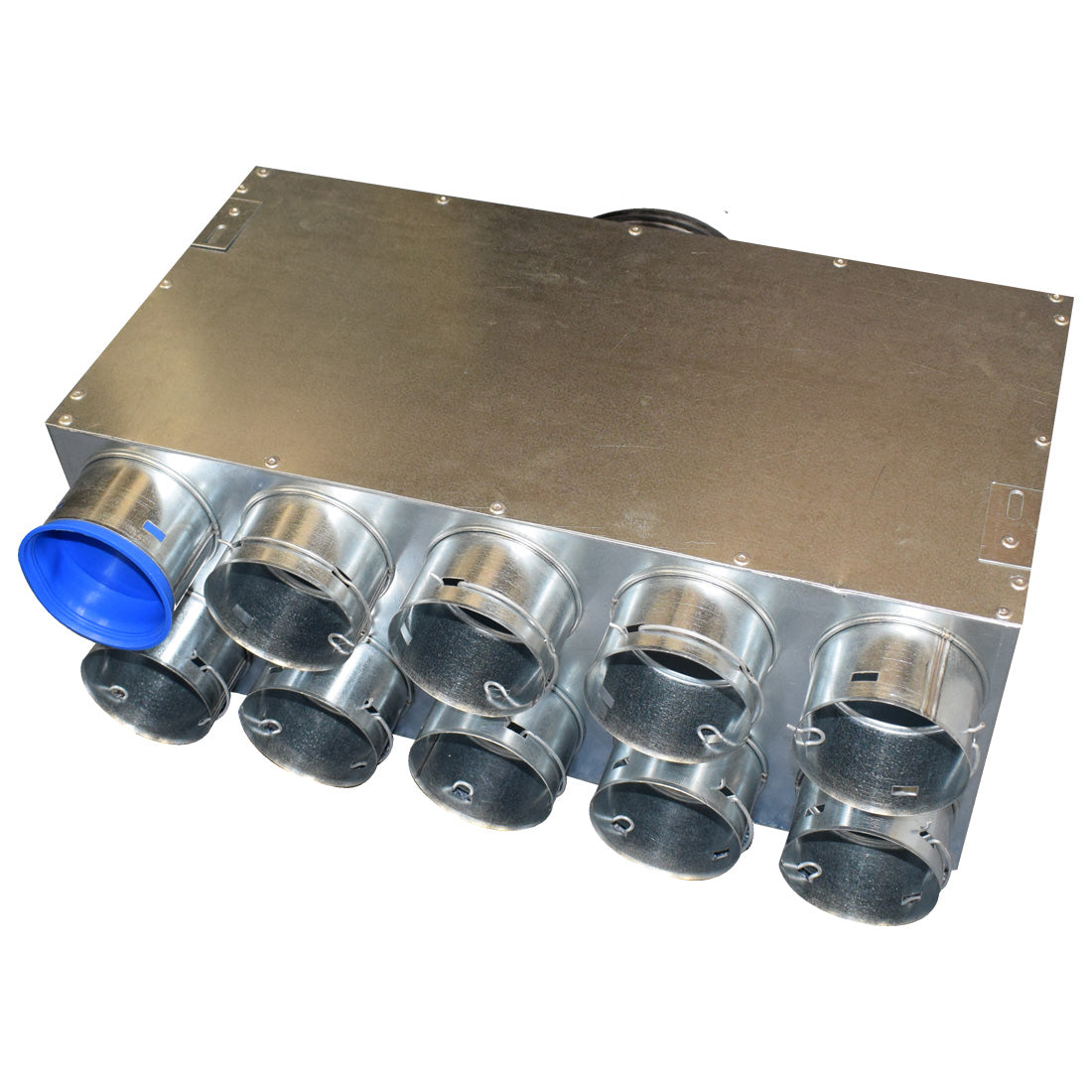

The Quiet-Vent 10 Point Rear Entry Distribution Box is a compact and efficient solution for distributing airflow in ventilation systems. Designed for ceiling or floor installation, this box provides 10 entry points and includes three blanking caps for unused vents, ensuring an optimized and controlled airflow system.
Key Features
10 Points of Entry – Ideal for systems requiring multiple connection points
Rear Entry Design – Flexible installation to suit your system's needs
Requires Sealing Rings – For airtight connections and optimal system performance
Works Best with Quiet-Vent Radial Pipe – Ensures smooth and efficient airflow What's in the box ? 10 Pt Rear Entry Distribution box -150 spigot (75mm) with 3 x blanking caps
Specifications

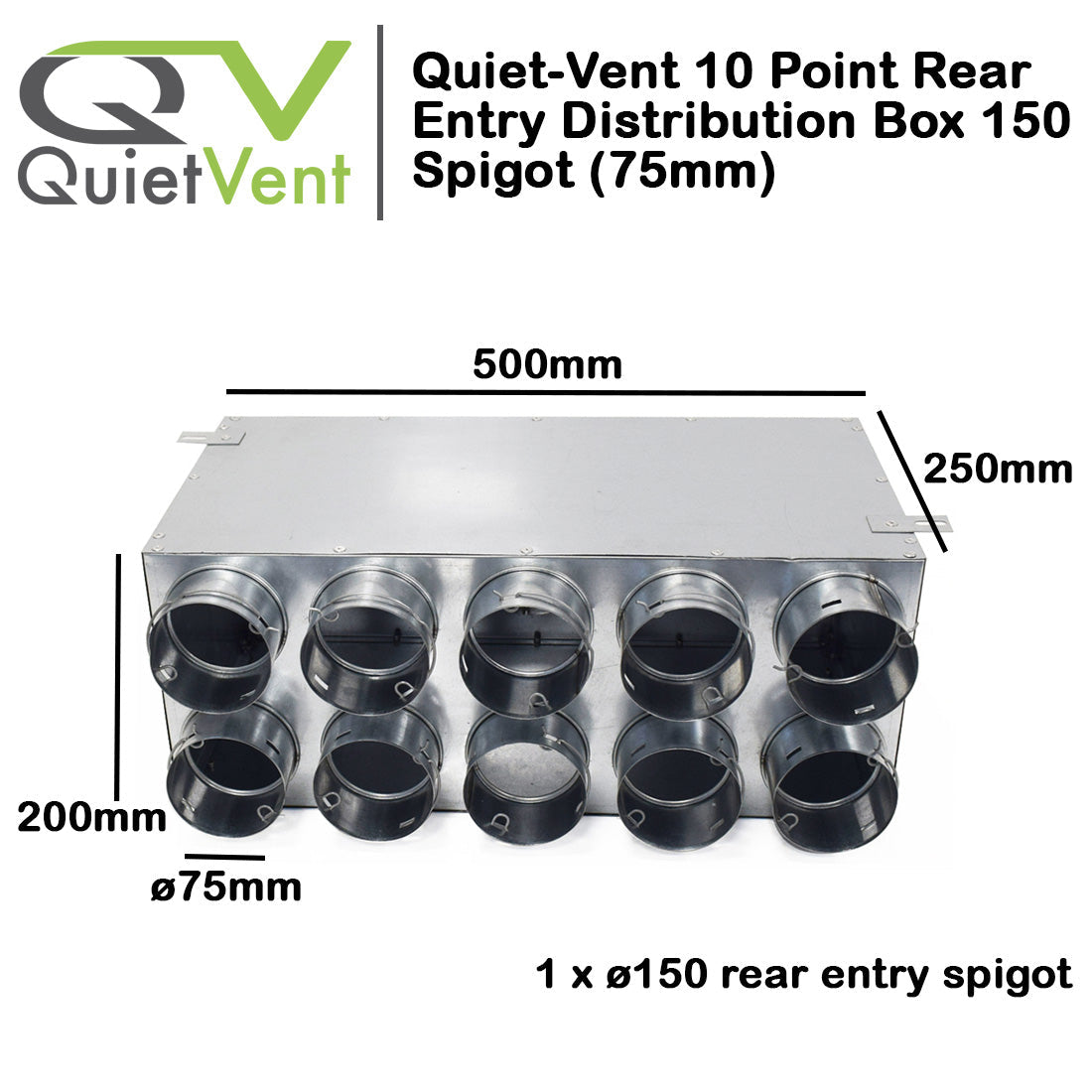

- Dimensions: 500mm (L) x 250mm (W) x 200mm (H)
- Spigot Size: 150mm
Performance
- Efficient Airflow Distribution – Delivers balanced airflow to 10 points
- Durable and Secure Installation – Built for reliable, long-term operation
- Compact Design – Fits easily into various installation setups
Installation
- Secure the distribution box to the ceiling or floor
- Insert the radial pipe into the box until the clips engage with the pipe
- Ensure all unused vents are covered with the included blanking caps
- Use sealing rings for airtight connections to enhance performance
