Description
Product Part Number

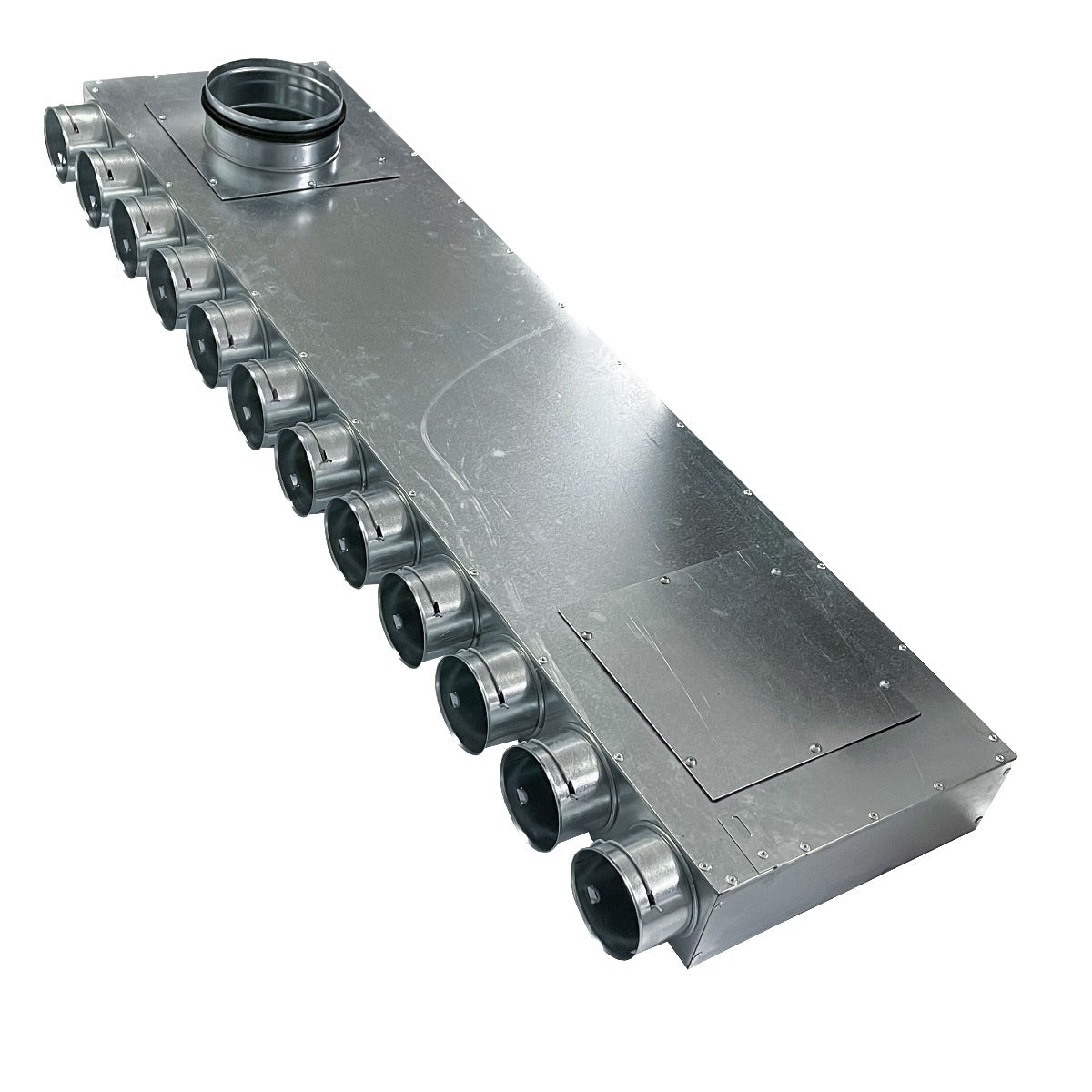

Quiet-Vent 75mm 12 Point Adjustable Top Entry Distribution Box - QV75-12150MTE
Product Overview
The Quiet-Vent 75mm 12 Point Adjustable Top Entry Distribution Box is designed for use in ventilation systems. It features a 150mm spigot and provides flexibility with adjustable points for connecting ductwork. This distribution box is ideal for installations in ceilings or floors, helping to distribute air effectively within a system.
Key Features
12 Adjustable Points – Allows for versatile connections in your ventilation system

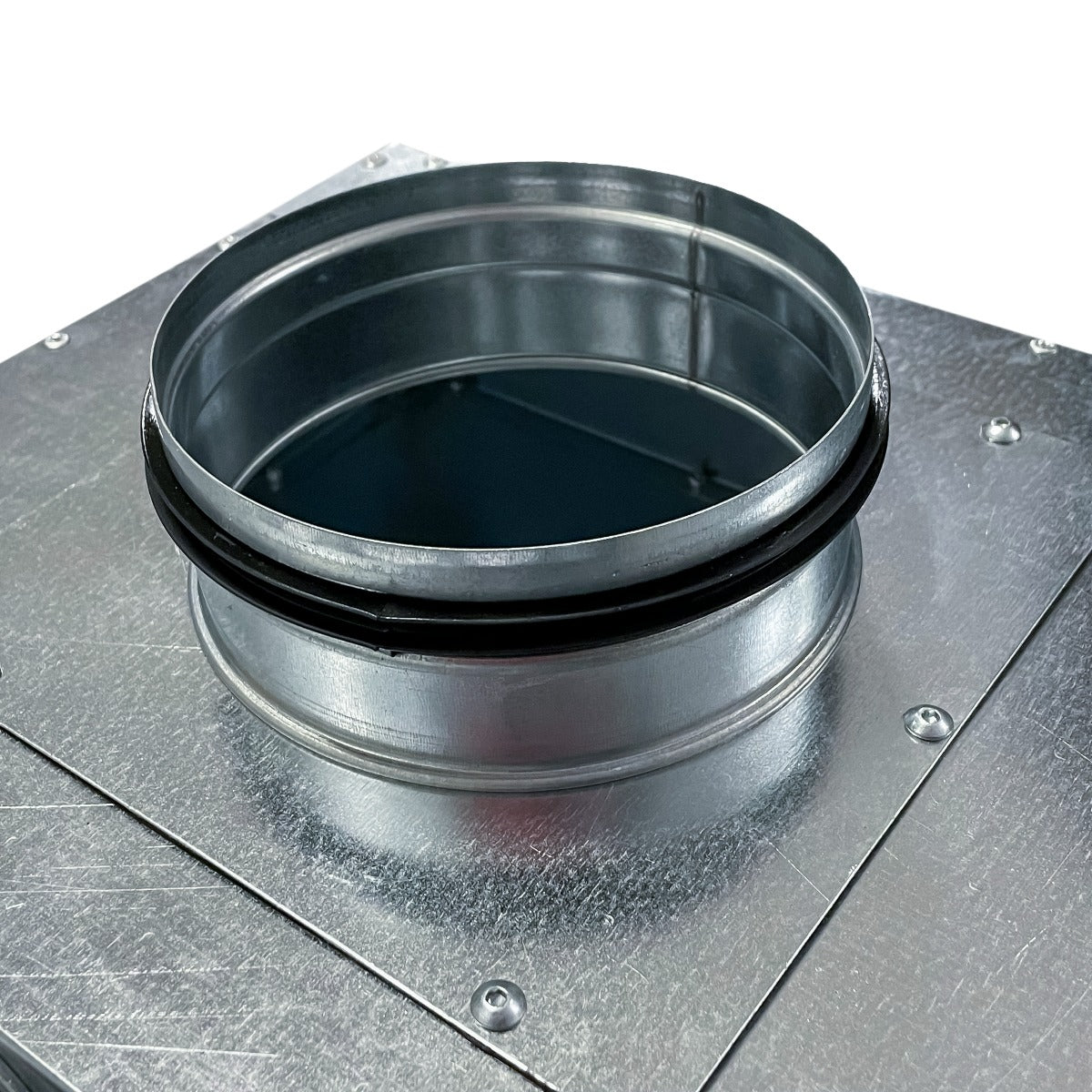

150mm Spigot – Compatible with systems requiring a 150mm spigot connection
Sealing Rings Required – Ensures an airtight seal when used with the correct sealing rings
3 x Blanking Caps – All unused vents must be sealed with blanking caps

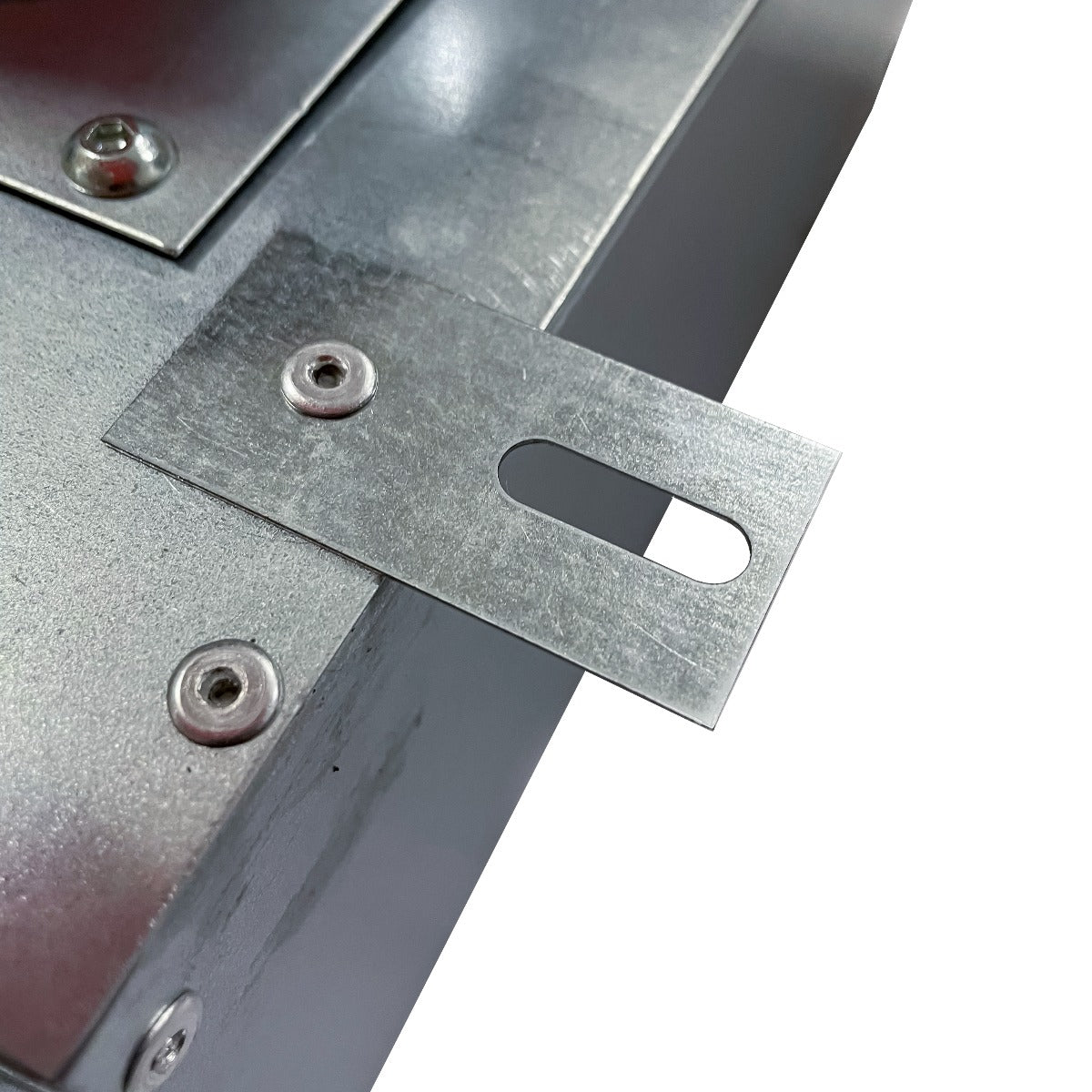

Flexible Installation – Secure the distribution box to a ceiling or floor, and easily engage the clips with radial pipe
Dimensions
- Length (L): 1200mm
- Width (W): 300mm
- Height (H): 90mm
Installation & Maintenance
- Installation: Secure the distribution box to the ceiling or floor. Insert the radial pipe until the clips engage with the pipe, ensuring a secure fit.
- Sealing: Sealing rings are required for proper installation, and unused vents should be covered with blanking caps.
