Description
Product Part Number
QV75-15180RE
Product Overview

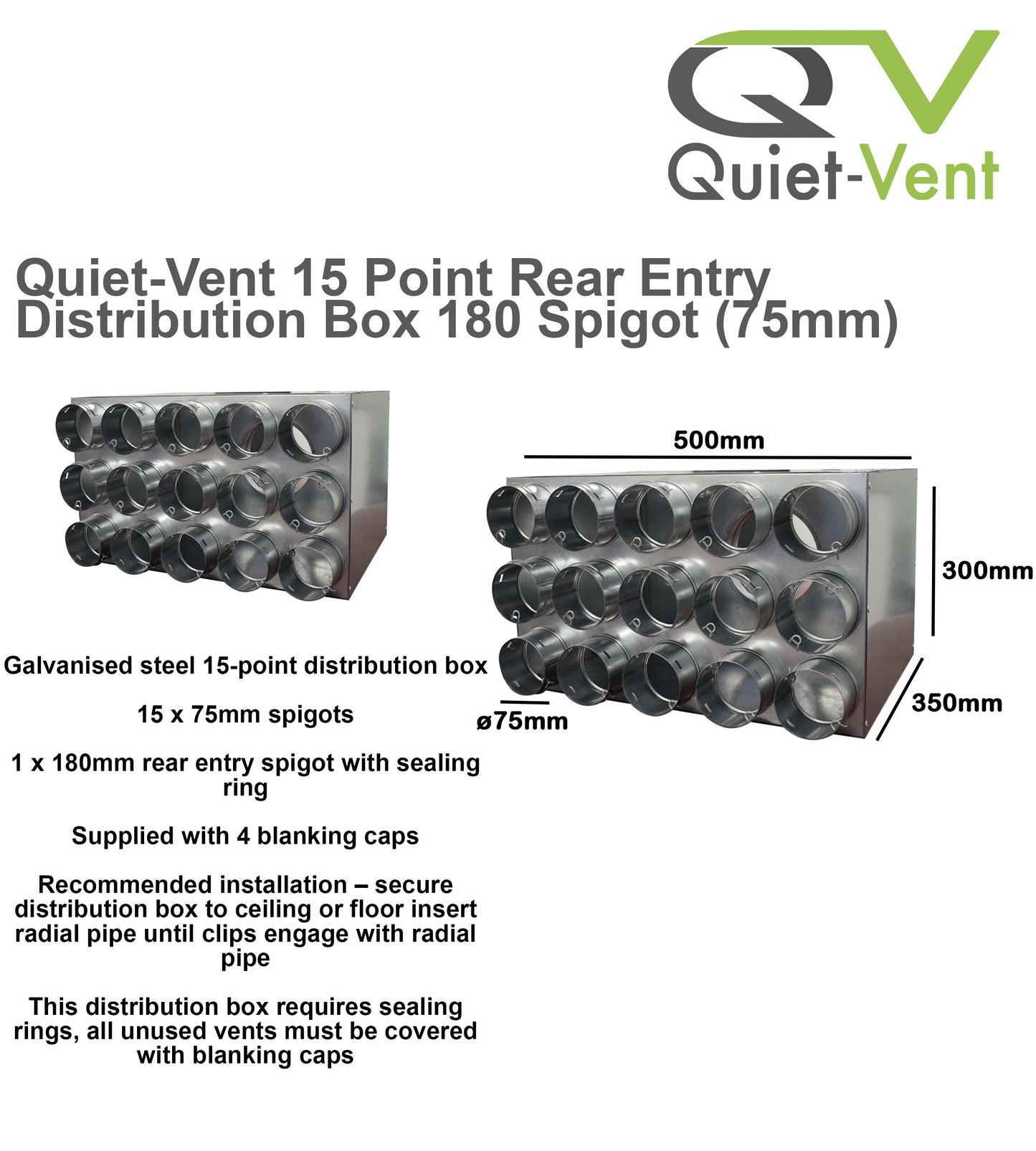

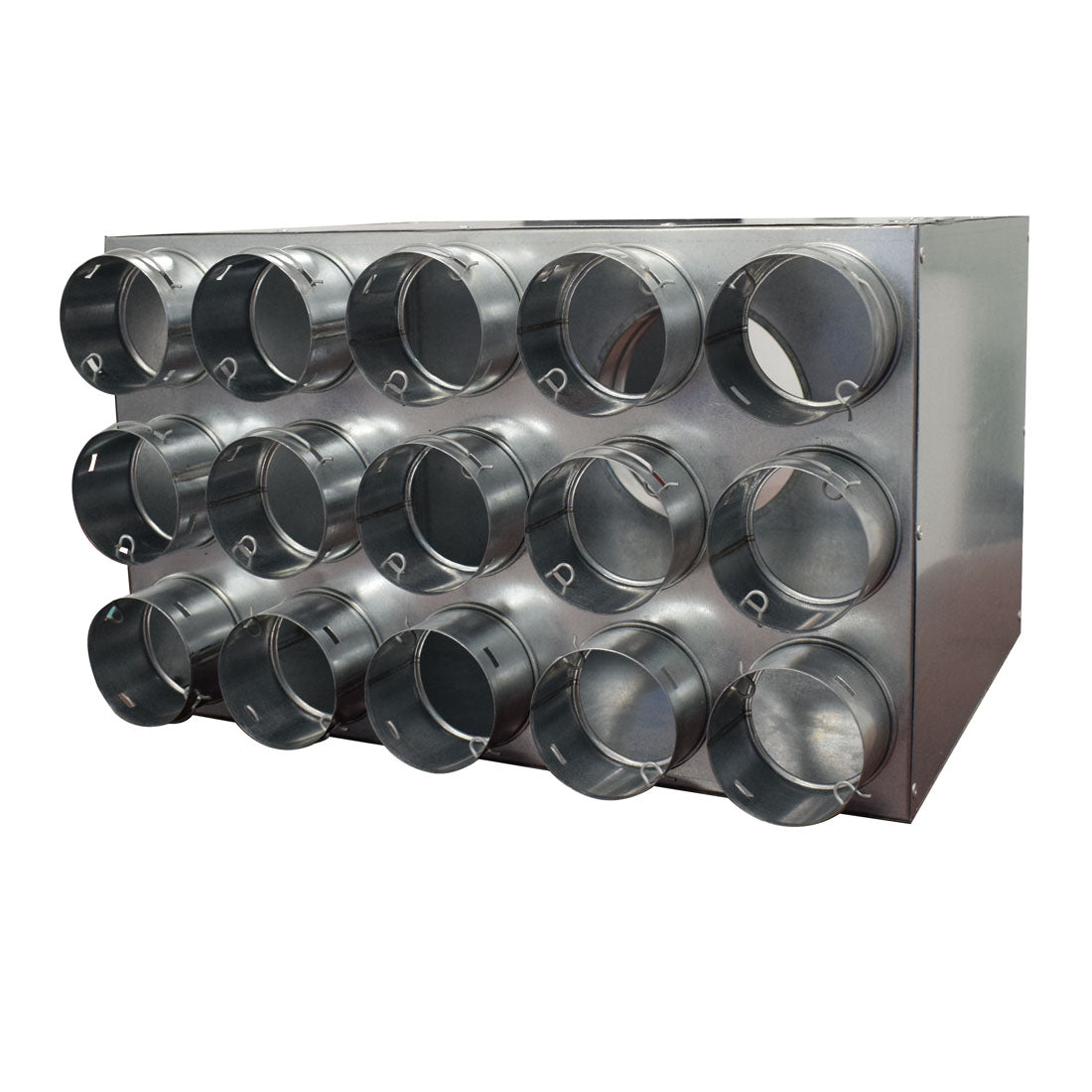

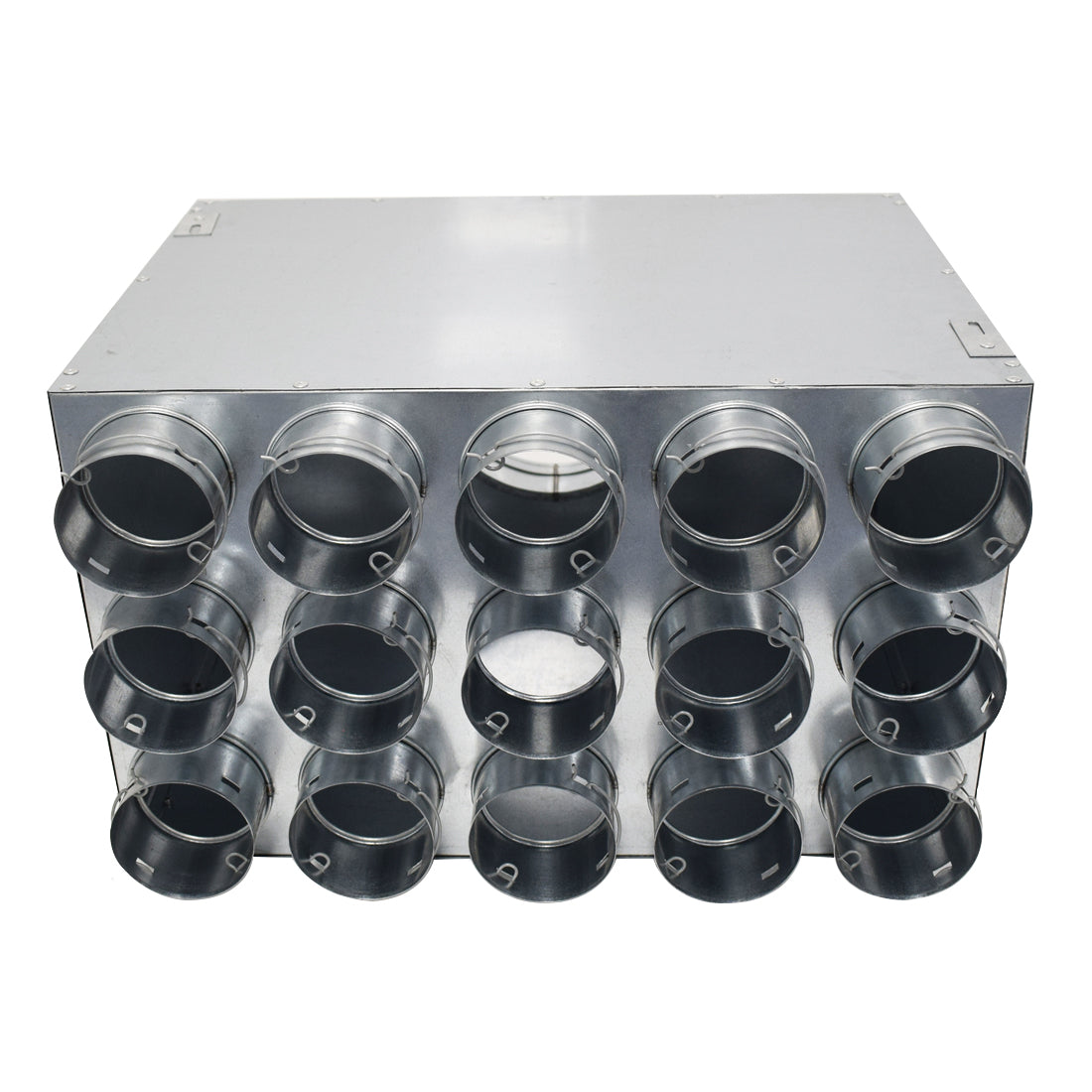

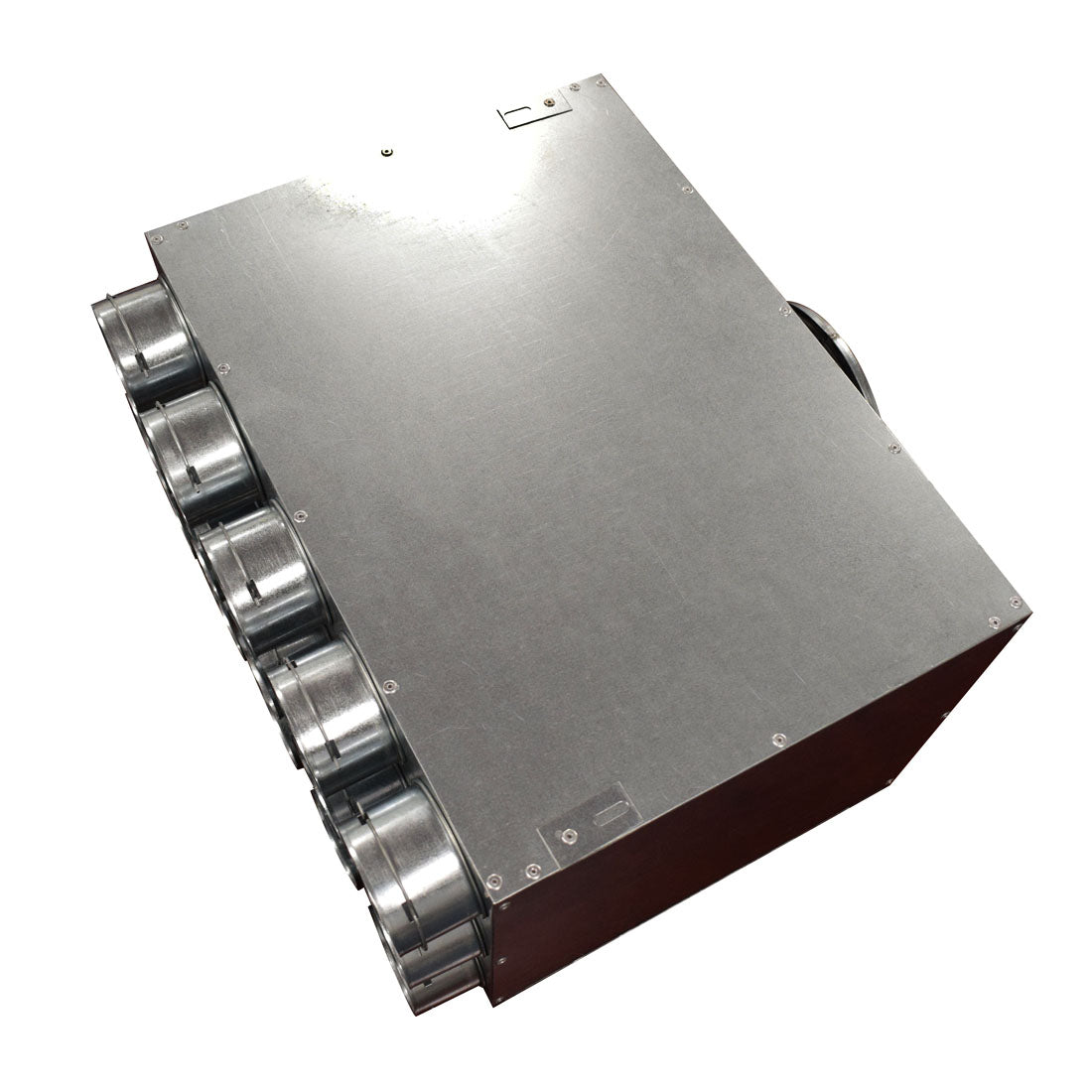

The Quiet-Vent 15 Point Rear Entry Distribution Box is designed for efficient distribution of airflow to multiple points, ideal for larger systems. It can be installed on the ceiling or floor and features a rear entry design for flexibility. The box includes four blanking caps to cover unused vents, ensuring controlled airflow.
Key Features
15 Points of Entry – Offers ample connection points for extensive ventilation setups
Rear Entry Design – Allows flexibility in installation locations
Supplied with 4 Blanking Caps – For sealing unused vent points
Requires Sealing Rings – To ensure airtight connections
Works Best with Quiet-Vent Radial Pipe – For optimal performance and airflow efficiency
Specifications

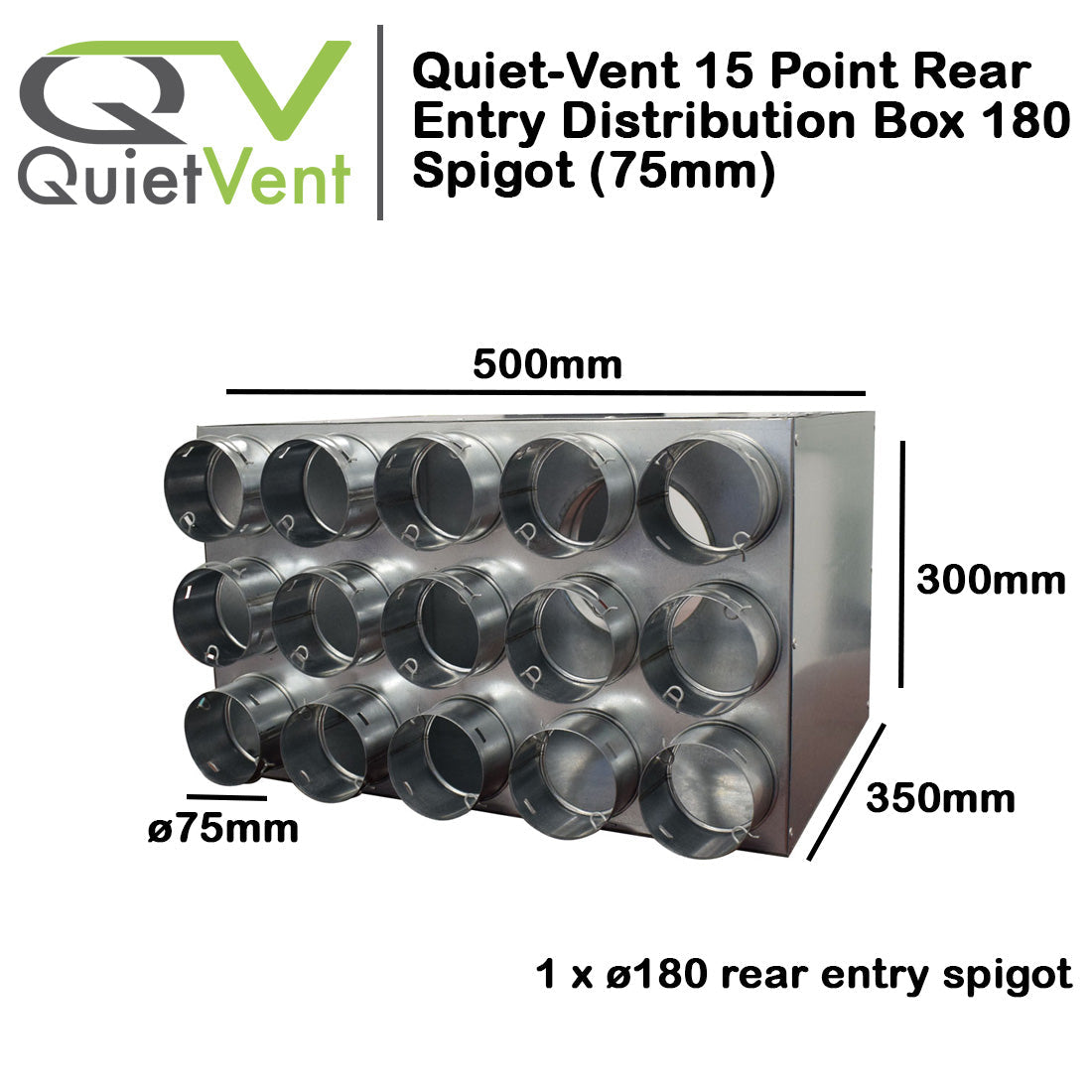

- Dimensions: 500mm (L) x 350mm (W) x 300mm (H)
- Spigot Size: 180mm
Performance
- Efficient Airflow Distribution – Designed to distribute airflow evenly across 15 points
- Flexible Installation – Suited for various ceiling or floor installations
- Durable and Secure – Built to last and secure in its installation for long-term use
Installation
- Secure the distribution box to the ceiling or floor
- Insert the radial pipe into the box until the clips engage with the pipe
- Ensure all unused vents are sealed with the provided blanking caps
- Use sealing rings for airtight connections to ensure the best performance
