Description
Product Part Number

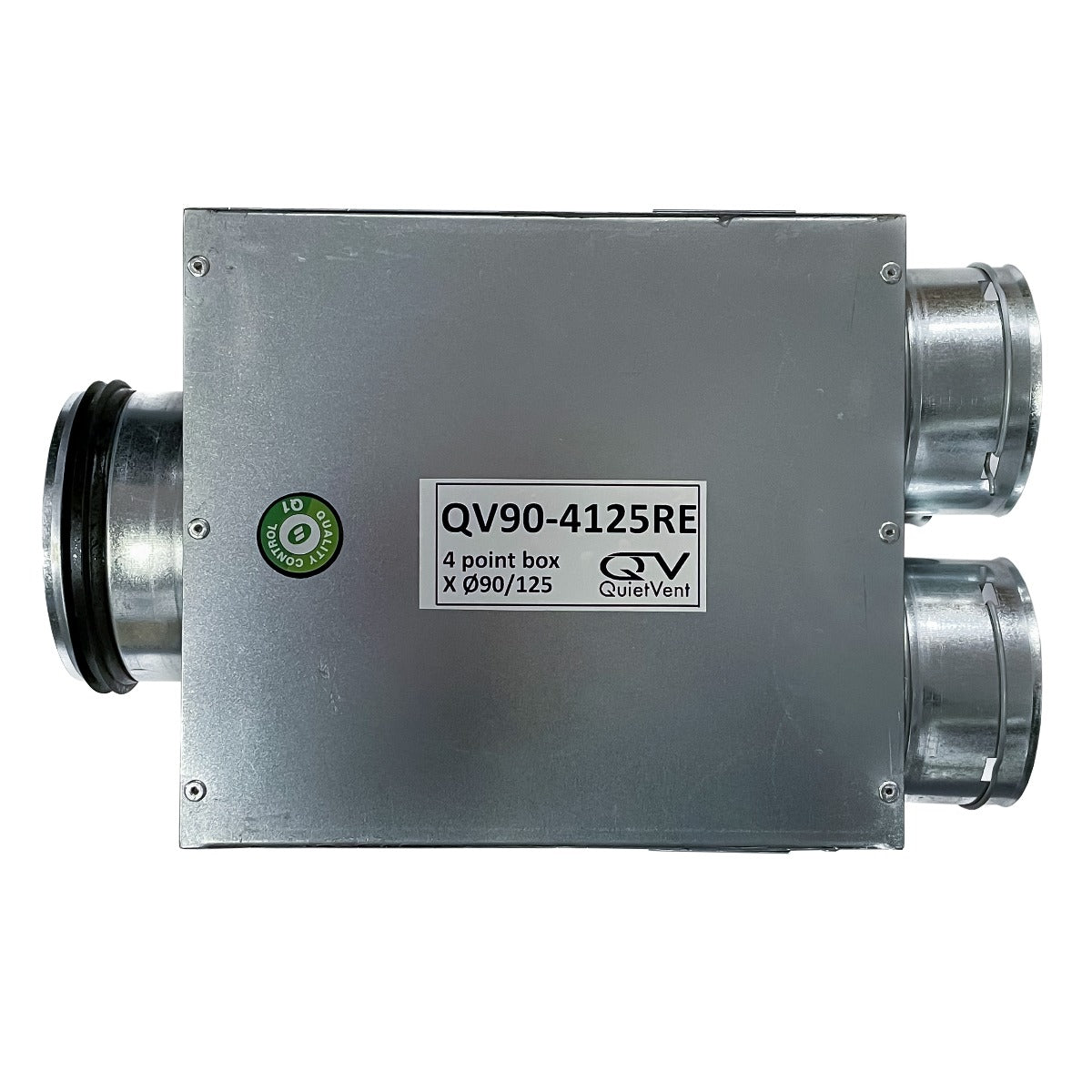

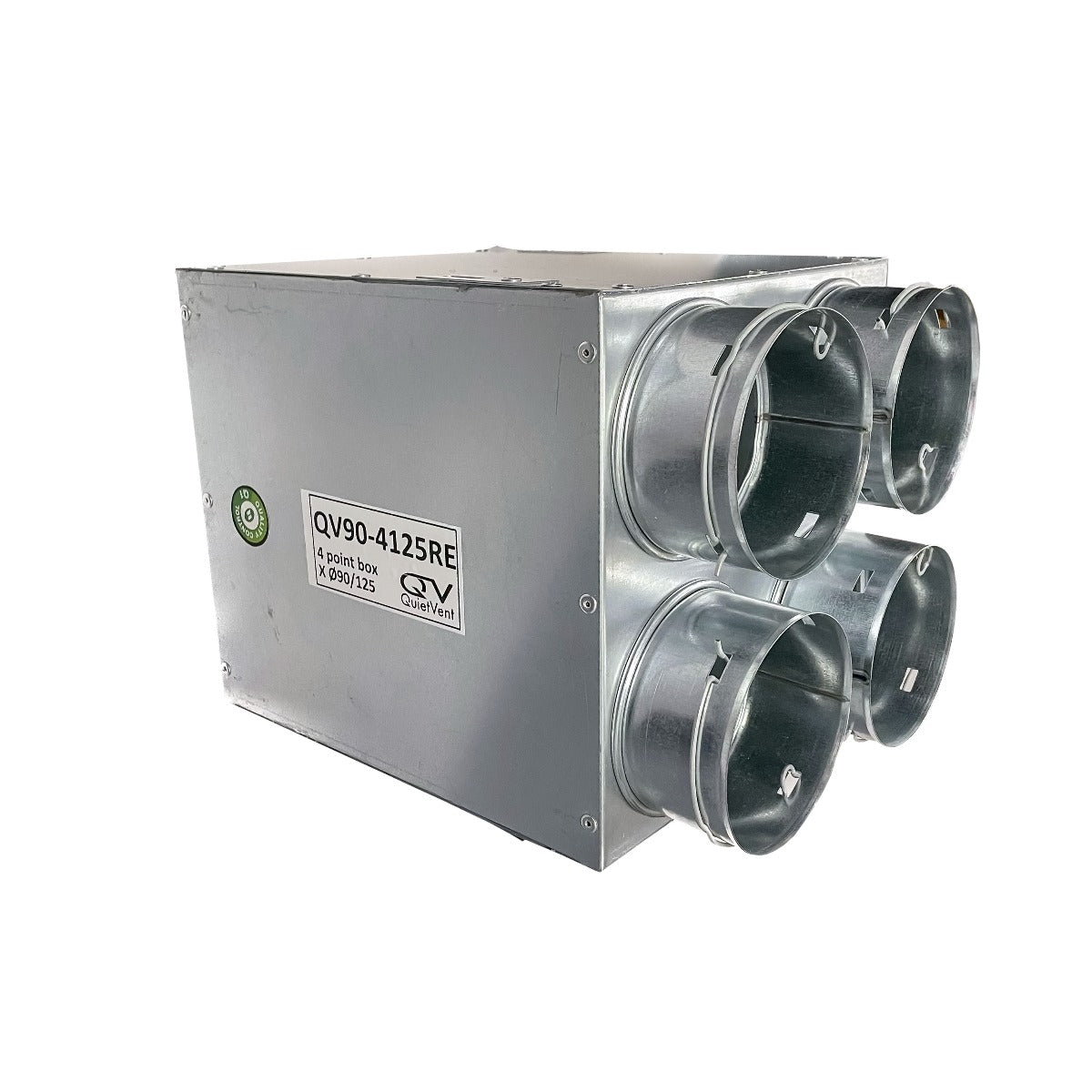

Quiet-Vent 90mm 4 Point Adjustable Rear Entry Distribution Box - QV90-04125MRE
Product Overview
The Quiet-Vent 90mm 4 Point Adjustable Rear Entry Distribution Box is designed for use in ventilation systems requiring flexible airflow distribution. Featuring a 125mm spigot, this box is ideal for ceiling or floor installations and offers an adjustable configuration for various ductwork needs. It is supplied with blanking caps and requires sealing rings to ensure an airtight installation.
Key Features
4 Adjustable Points – Allows customization to suit various installation requirements

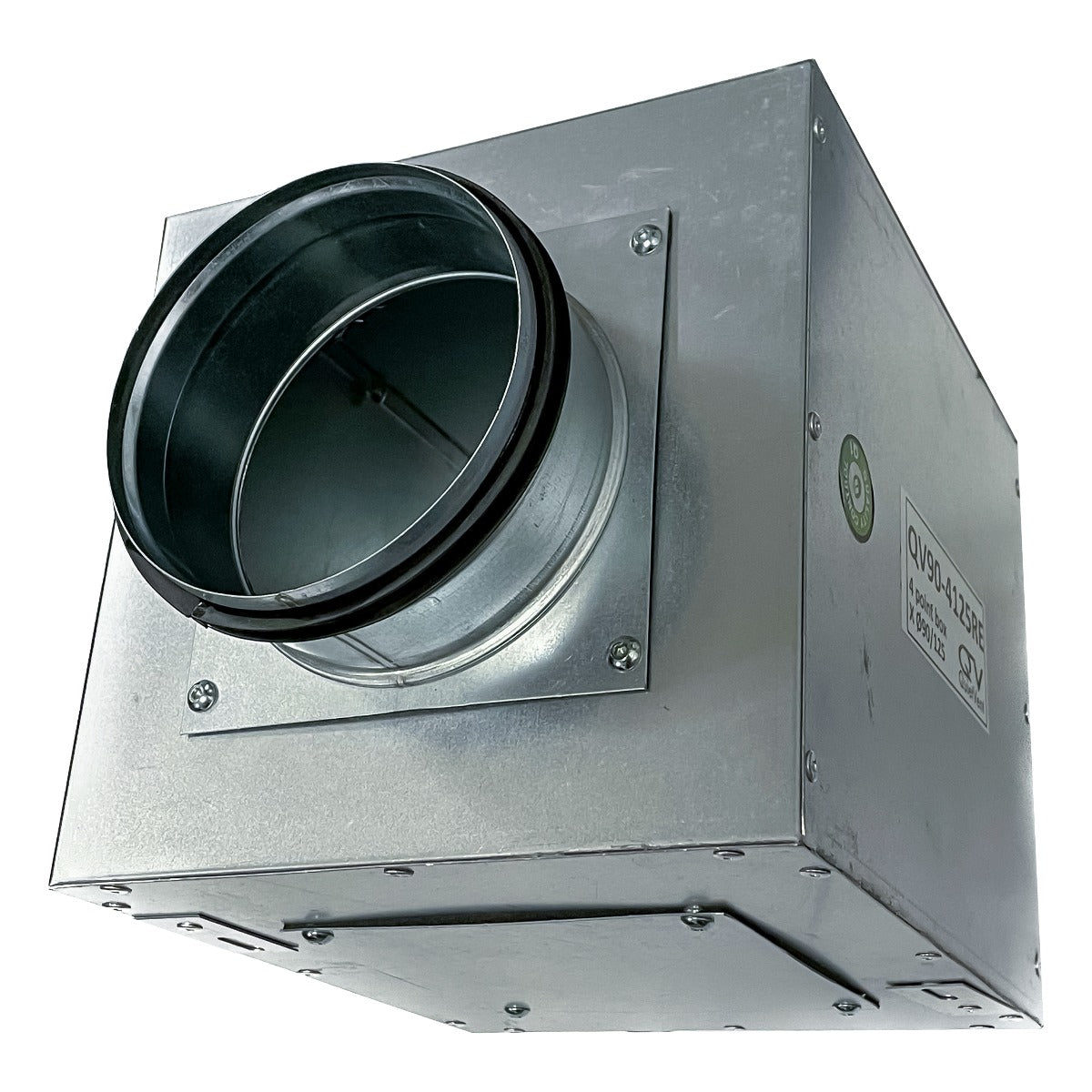

125mm Spigot – Suitable for systems requiring a 125mm spigot connection
Sealing Rings Required – For optimal performance and airtight installation
1 x Blanking Caps Included – supplied to cover unused vents

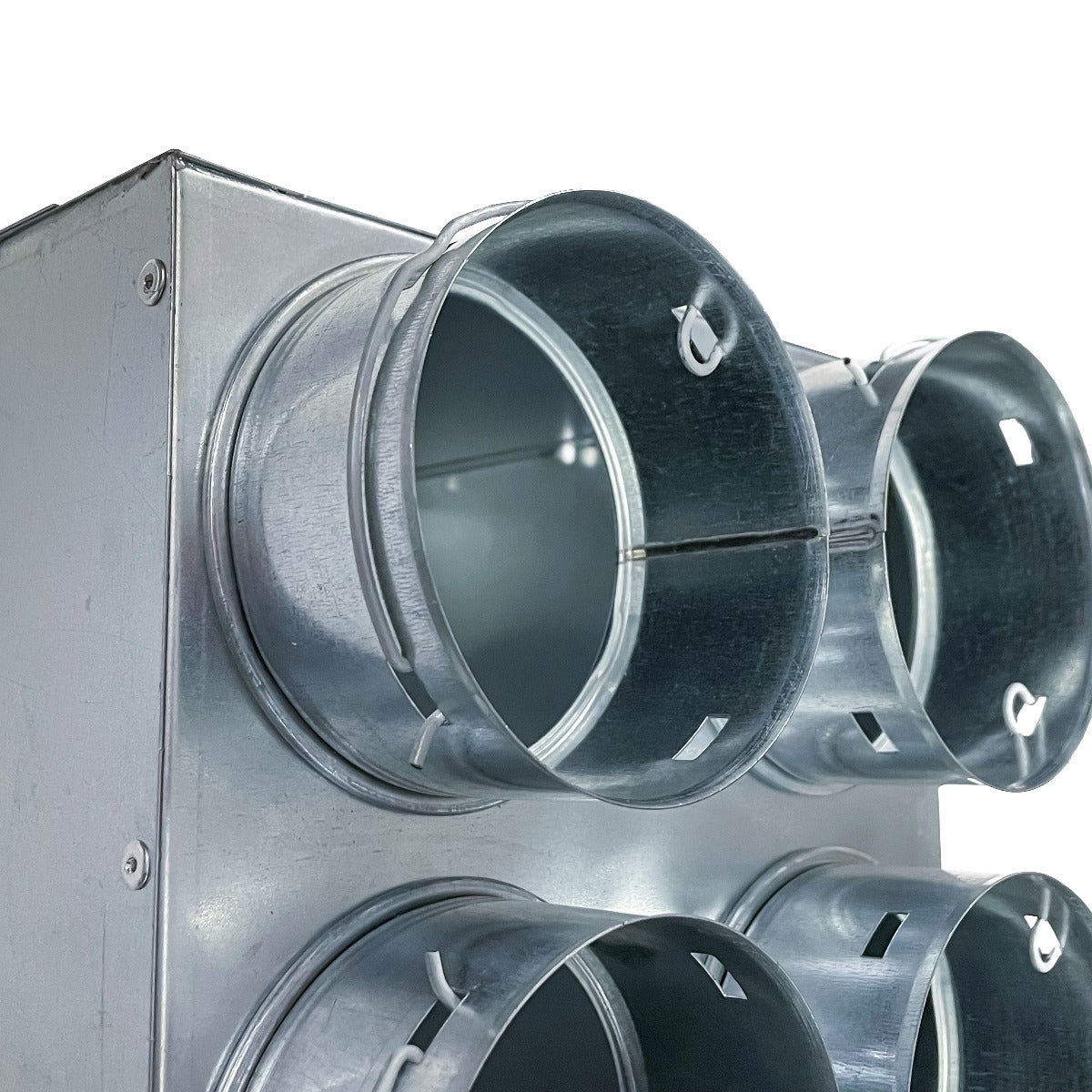

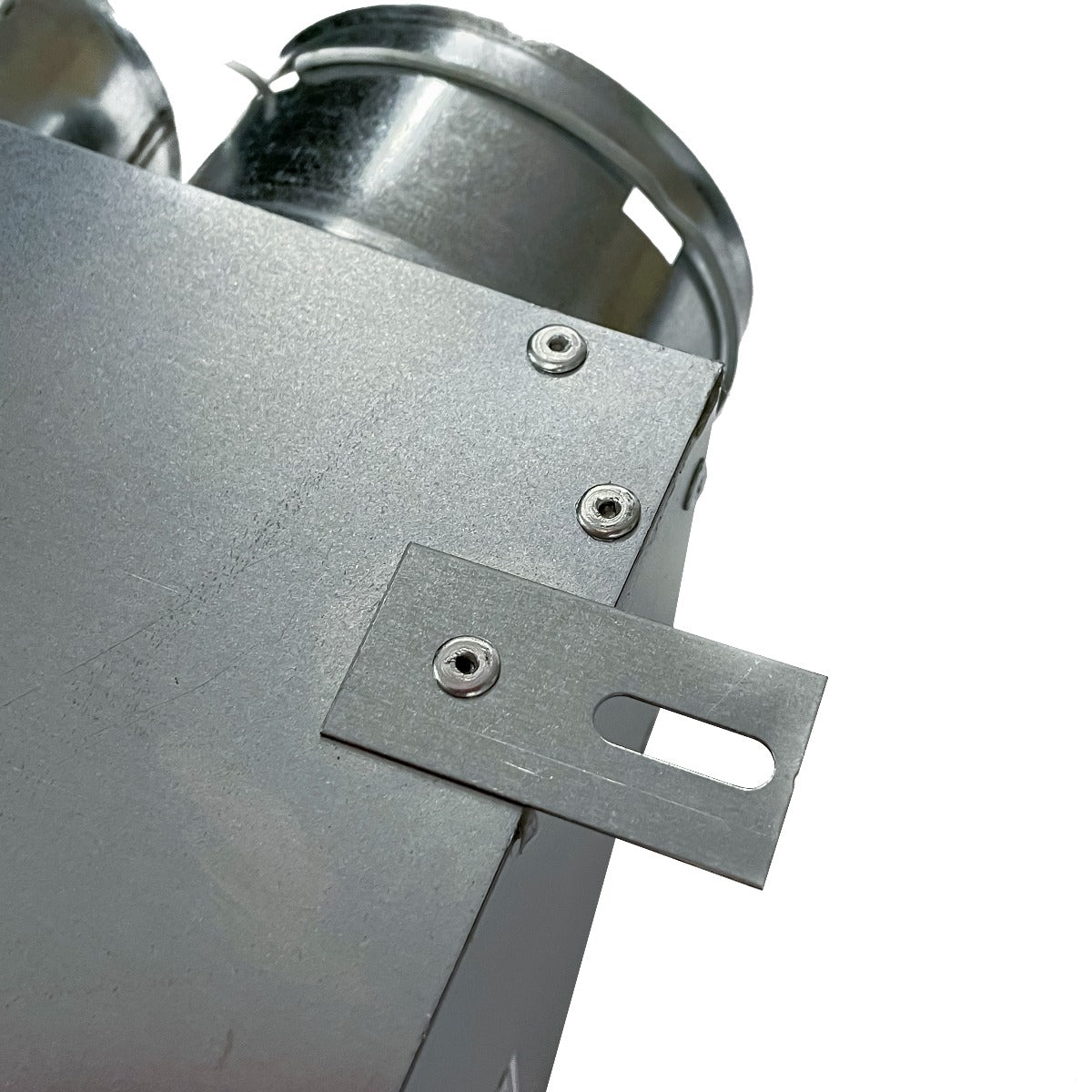

Flexible Installation – Easily secure to the ceiling or floor and connect the radial pipe
Dimensions
- Length (L): 250mm
- Width (W): 220mm
- Height (H): 220mm
Installation & Maintenance
- Installation: Secure the distribution box to the ceiling or floor, and insert the radial pipe until the clips engage. Ensure the system is airtight by using sealing rings and covering unused vents with blanking caps.
- Maintenance: Regular checks and maintenance of the sealing rings and blanking caps ensure optimal performance.
