Description
Product Part Number
MIT-VL500-KIT
Product Overview

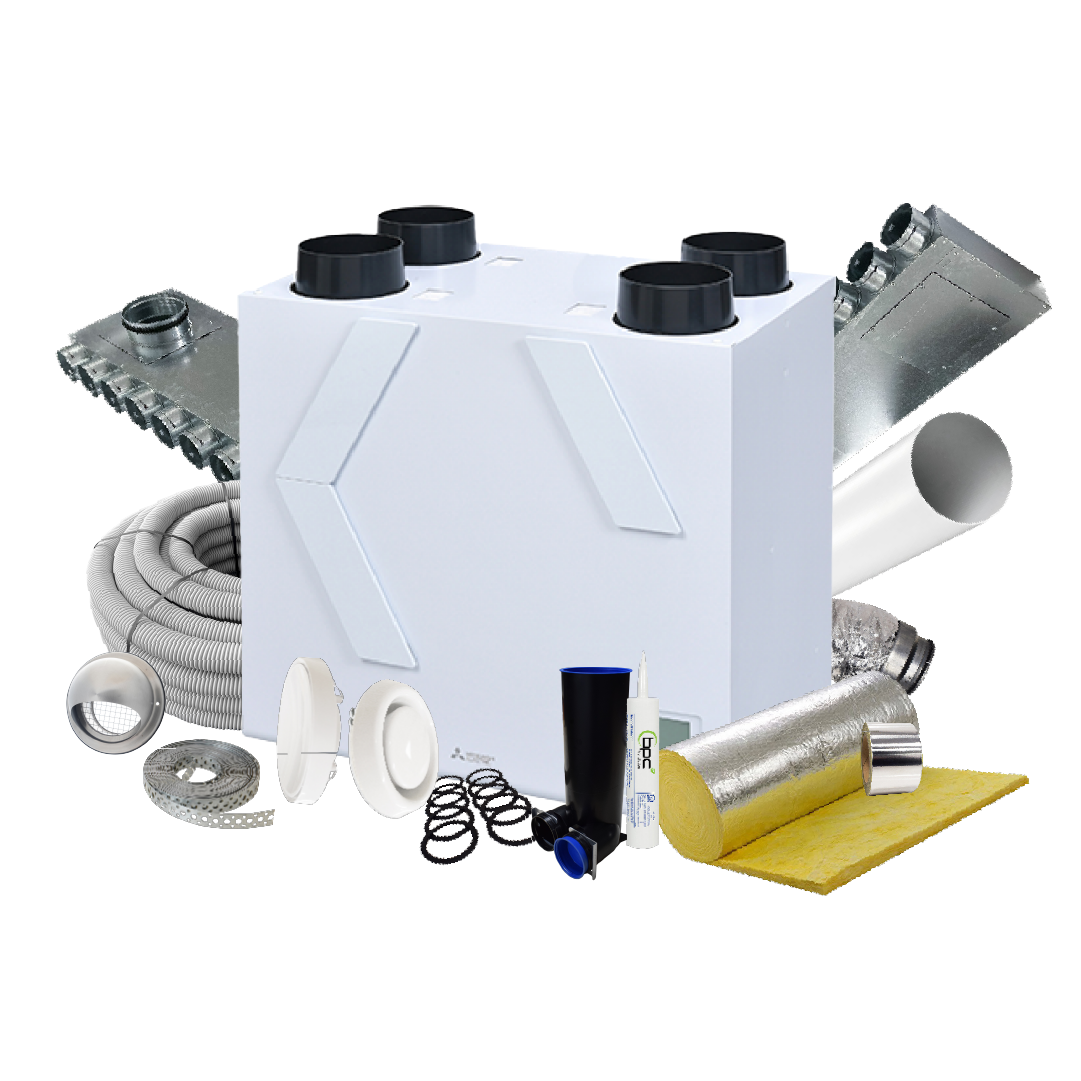

The Mitsubishi NBR-14 Room Kit is a whole-house MVHR solution for new builds, featuring the high-capacity Mitsubishi VL-500 unit and Quiet-Vent radial ducting. Designed for larger homes typically 4–5 bedrooms and up to 280 m², it offers up to 90% heat recovery, quiet EC motor operation, and humidity-controlled boost. The kit includes antibacterial radial pipework, acoustic silencers, and premium air valves, delivering efficient, whisper-quiet ventilation and excellent indoor air quality.
Technical Specifications
System Type - Whole House Heat Recovery System
Number of Rooms - Up to 5 Bedroom Homes
Max Dwelling Size - 280m²
Installation - New Build Residential
Kit Contents
| Item Description | Product Code | Quantity |
|---|---|---|
| 125mm Quiet-Vent Extract Air Valve PVC | QV-125AVP-E | 6 |
| 125mm Quiet-Vent Supply Air Valve PVC | QV-125AVP-S | 8 |
| 150mm PVC Pipework (2 meters) | P150-2 | 4 |
| 150mm PVC Pipe Connector | C150 | 3 |
| 150mm PVC 90º Bends | B90150 | 10 |
| Quiet-Vent 150mm x 500mm Flexi Insulated Sound Attenuator | QV150F-SILENCER | 2 |
| 25mm Foil Back Glass Fibre Insulation (1.2m x 1m) | INS25 | 4 |
| Quiet-Vent 150mm Stainless Steel Cowl with Bird Mesh | QV-SSC150M | 2 |
| Quiet-Vent 150mm Rubber Flexible Circular Duct Connector with 2 Clips | QVRC150 | 4 |
| 75mm Roll Silver Foil Tape | ST75 | 1 |
| Builders Strap Roll (10 meters) | BS50 | 3 |
| Grey Duct Sealant | SE380 | 1 |
| 75mm 50 Metre Antibacterial Radial Pipe | QV75P-FS | 5 |
| Quiet-Vent 75mm Plenum | QV75-PLEN | 14 |
| QV 75mm Standard Sealing Ring (Pack of 10) | QV-75SR | 5 |
| QV 12-Point Top Entry Distribution Box – 150mm Spigot (75mm) with 3 Blanking Caps | QV75-12150MTE | 2 |
| Mitsubishi VL500 MVHR Unit | VL-500CZPVU-R-E | 1 |
| 1-Gang Momentary Boost Switch | QV-BoostSw | 2 |
