Description
Product Part Number
SST-160-2M-IND
Product Overview

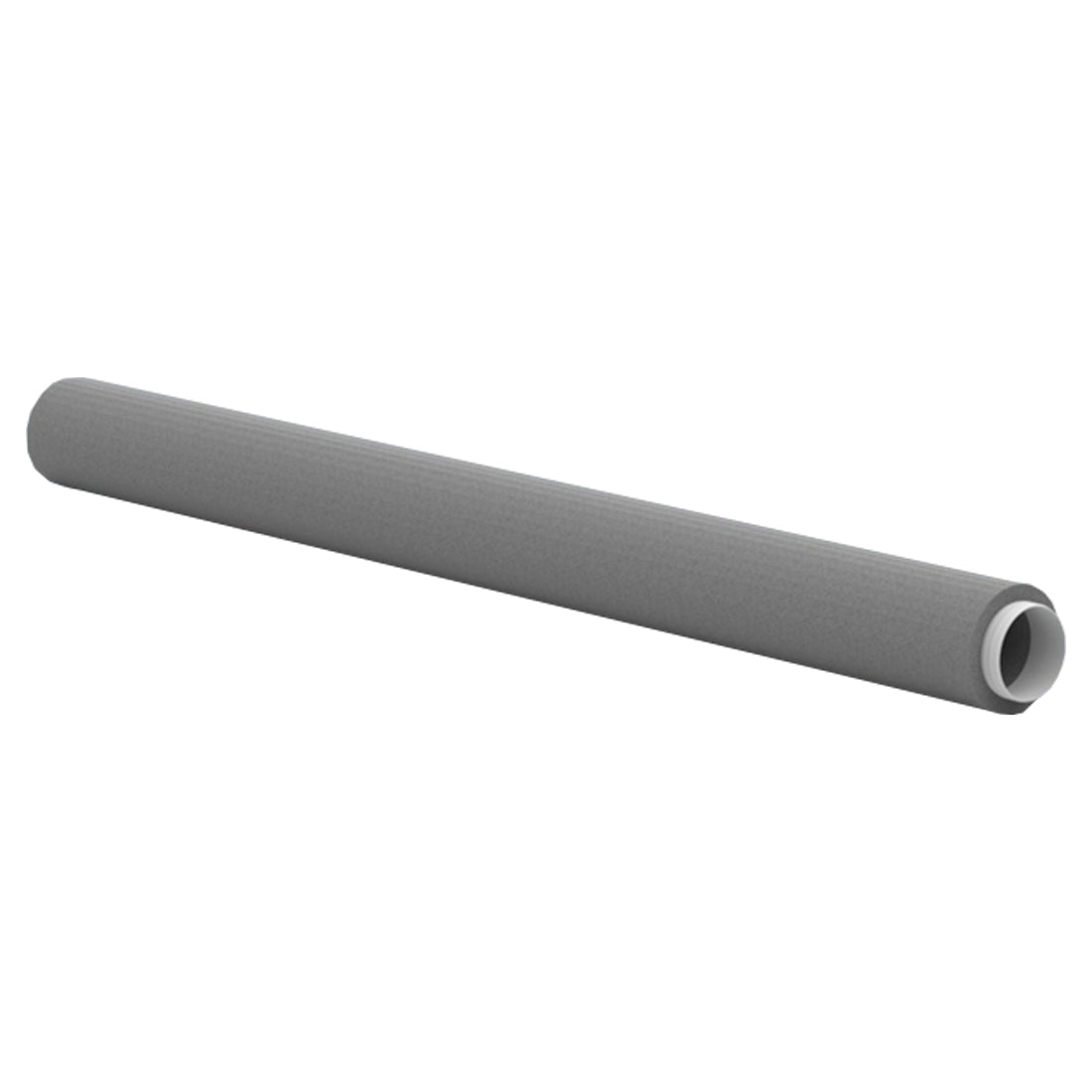

The Verplas SST-160-2M-IND Rapid Self-Seal Thermal Duct is a high-capacity, pre-insulated ventilation duct designed for efficient airflow and rapid installation. With a 160mm diameter and 2m length, it is ideal for larger domestic and light commercial ventilation systems, including MVHR and MEV applications.
Manufactured from graphite-impregnated expanded polystyrene (EPS), the duct offers excellent thermal insulation, helping to minimise heat loss and prevent condensation. Its patented push-fit “click and lock” sealing system ensures a secure, low-leakage connection that exceeds industry standards while significantly reducing installation time.
Supplied with an integrated duct-to-duct connector, the SST-160-2M-IND allows quick connection between duct lengths. The open end enables direct push-fit installation onto 160mm fan spigots, or 150mm spigots when used with a compatible adapter. Lightweight yet durable, this system provides a practical and high-performance ducting solution.
Technical Specification
Product Name: Verplas Rapid Self-Seal Thermal Duct
Part Number: SST-160-2M-IND
Manufacturer: Verplas Ltd
Dimensions & Physical Properties
- Diameter: 160mm
- Length: 2000mm (2m)
- Free Area: 20,108 mm²
- Individual Weight: 844g
- Colour: Grey
- Box Quantity: 6 units
Material & Construction
- Duct Material: Graphite impregnated Expanded Polystyrene (EPS)
- EPS Density: Minimum 25 kg/m³
- Connector Material: High Impact Polystyrene
- Connection Type: Push-fit, click and lock self-sealing system
- Included Fitting: 1 × Duct-to-Duct connector
Thermal Performance
- Thermal Conductivity: 0.03 W/mK
- Thermal Resistance: 0.666 m²K/W
- Compliance: BASF EN13163
Temperature Range
- Minimum Operating Temperature: -15°C
- Maximum Operating Temperature: +60°C
Fire & Safety
- Fire Rating: DIN 4102-B1 (Flame Retardant)
Air Leakage & Standards
- Exceeds DW/143 Class A air leakage requirements
- Complies with DW/154 ductwork standards
System Compatibility
- Suitable for:
- MVHR (Mechanical Ventilation with Heat Recovery) systems
- MEV (Mechanical Extract Ventilation) systems
- Approved for use within SAP energy performance calculations
Airflow Resistance Performance
| Airflow (L/s) | Pressure Loss (Pa) |
|---|---|
| 8 | 0.00 |
| 13 | 0.10 |
| 21 | 0.30 |
| 30 | 0.50 |
| 60 | 2.00 |
| 120 | 7.50 |
Installation Features
- Pre-insulated for faster installation
- Push-fit connection to 160mm fan spigots
- Compatible with 150mm spigots using SST-160 adapter
- Can be cut to required length
- Integrated female coupling for secure fitting connections
