Description
Product Part Number
BSK-NOTUS-SLIM
Product Overview

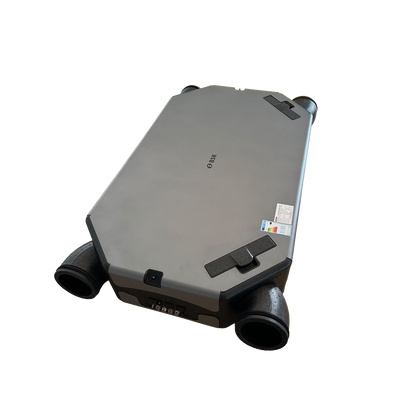

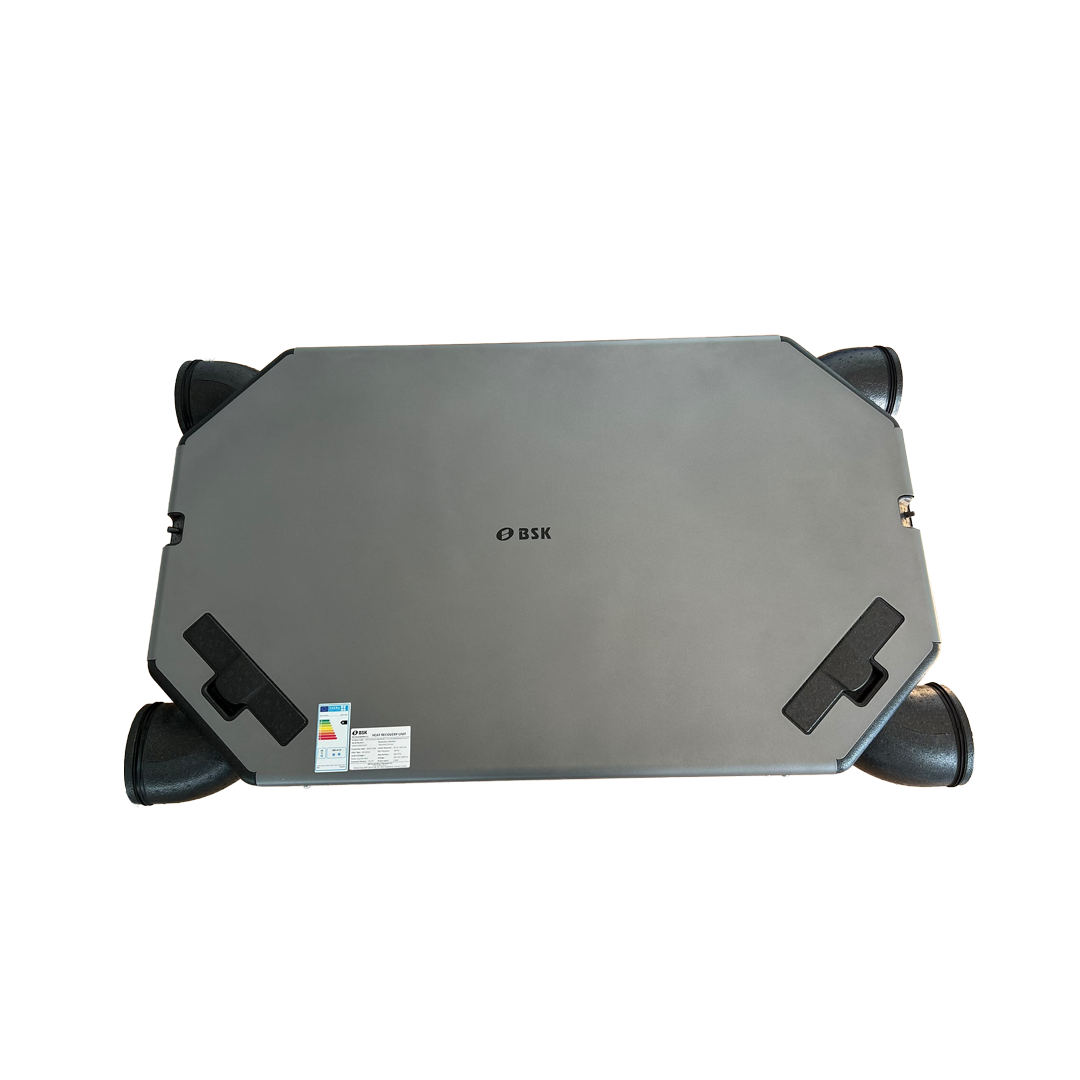

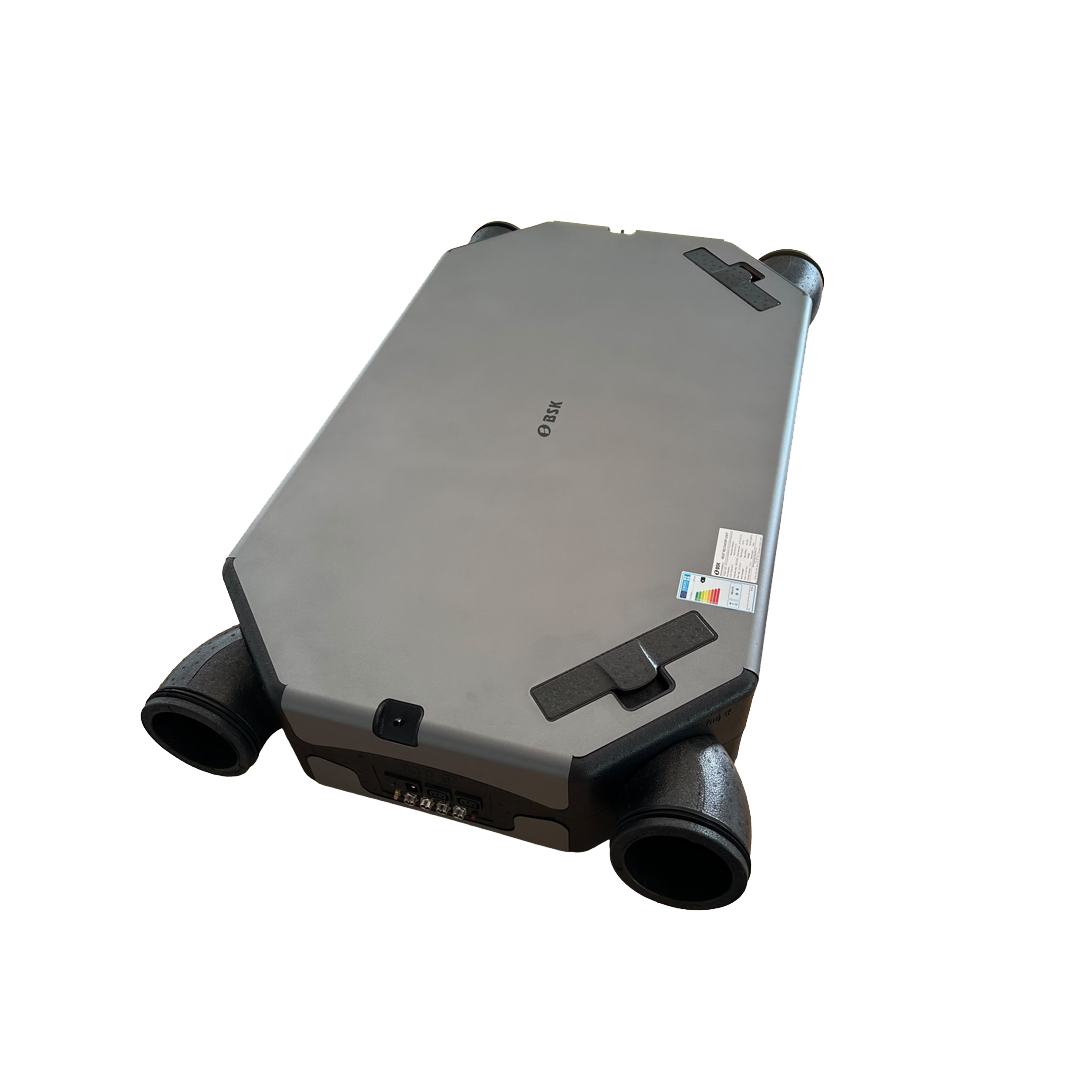

The BSK Notus Slim heat recovery unit is a quality MVHR unit manufactured of the latest EPP construction and can installed either vertically on a wall or horizontally on a ceiling allowing for almost all site restrictions suitable for new houses up to 240m2 that has advanced Wi-Fi controllability and internal humidity sensor
This unit has a (A+) energy rating
Key Features
- Interactive Wi-Fi Smart Control App
- Internal humidity sensor
- Optional touch screen controller
- Wall or ceiling Orientation
- Ultra-Light @ only 25Kg
- Suitable for home sizes up to 240m2
- Airflow rate @100Pa – 400 m3/h
- EPP Super Quiet construction
- Highly efficient EC fans
- 100% summer bypass
- Fully adjustable fan speeds
- G4 filtration
- ‘A+’ energy rating
- High heat recovery efficiency of up to 90%.
- Optional duct heaters
Controllability
The BSK Notus Slim has advanced controls that allow the user to easily adjust settings
Wi-Fi Mobile App
The BSK Mobile App is available on iOS and Google Store with the following features
- Monitor outdoor and indoor temperature and humidity
- Change fan speeds
- Control optional heaters
- Schedule weekly and daily programs
- Adjust all settings
Wall Touch screen controller (optional)
- 4inch touchscreen
- Full control of fan speeds
- Temperature and humidity readings
- Automatic air quality control with optional AQ sensor.
- Extensive weekly schedule.
- Automatic Boost modes
Automatic Boost modes
External Control
- The BSK Notus have external connections allowing for hassle free setup
- Ability to control via a web browser for remote monitoring and repair
- Integration into a smart home management system. (BMS) via Modbus port
- Expansion port for bespoke solutions
- Optional wall controller
- 0-volt dry boost connection
- Optional Pre and Post heater connection
BMS Control
Implemented Modbus protocols enable simple connection into Building Management System as a result whole buildings engineering systems can be controlled at a single access point.
Connection and monitoring of multiple units by building managers can be enabled through the BSK Cloud Control Application
Construction
The BSK Notus is constructed of the latest EPP with a metal front cover
EPP (expanded polypropylene) with its lightweight, impact absorbing, and insulating properties make it a perfect body material for MVHR units
Motors
The fan motors are the latest backward curved low energy EC fans of (A) energy rating
Filtration
- 2 x G4 filters are fitted to the unit that are easy to replace
- Optional F7 to air supply
Summer By-Pass
The BSK range of units have a 100% summer by-Pass
If the indoor temperature Intake exceeds 25°C and the outdoor temperature is within comfort zones the summer by-pass is opened automatically to help provide a comfortable indoor temperature
Low Noise Levels
With airtight, aerodynamic and sound absorbing construction with perfectly balanced fans the noise levels are ultra quiet
Heat Exchanger
Highly efficient PVC counterflow heat exchanger with up to 90% heat recovery and an optional enthalpy heat exchanger is available
Frost Protection
Intelligent frost protection is standard on the BSK Notus units
Orientation

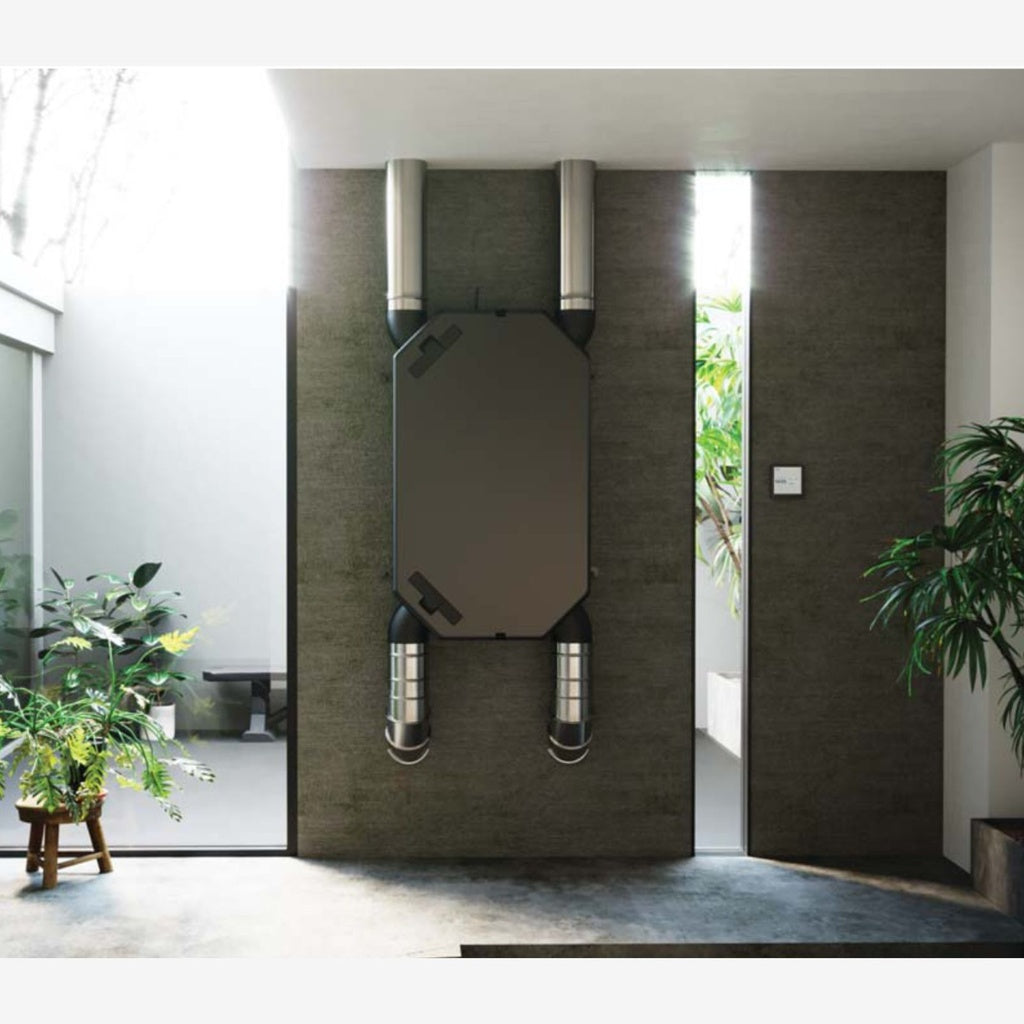

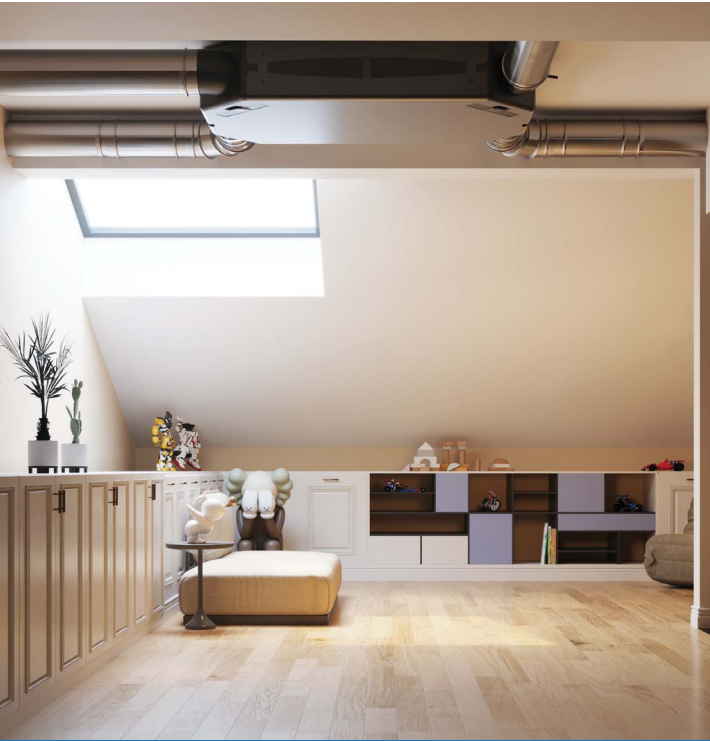

The BSK Notus Slim can be wall mounted vertically or ceiling mounted with top or bottom Drain points
Mounting
The units are supplied with mounting brackets
Accessories
- 1Gang Momentary Boost Switch
- BSK NOTUS wall controller - black

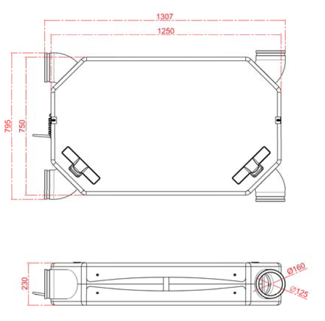

Technical Specification
