Description
Product Part Number
EPH-RFC
Product Overview

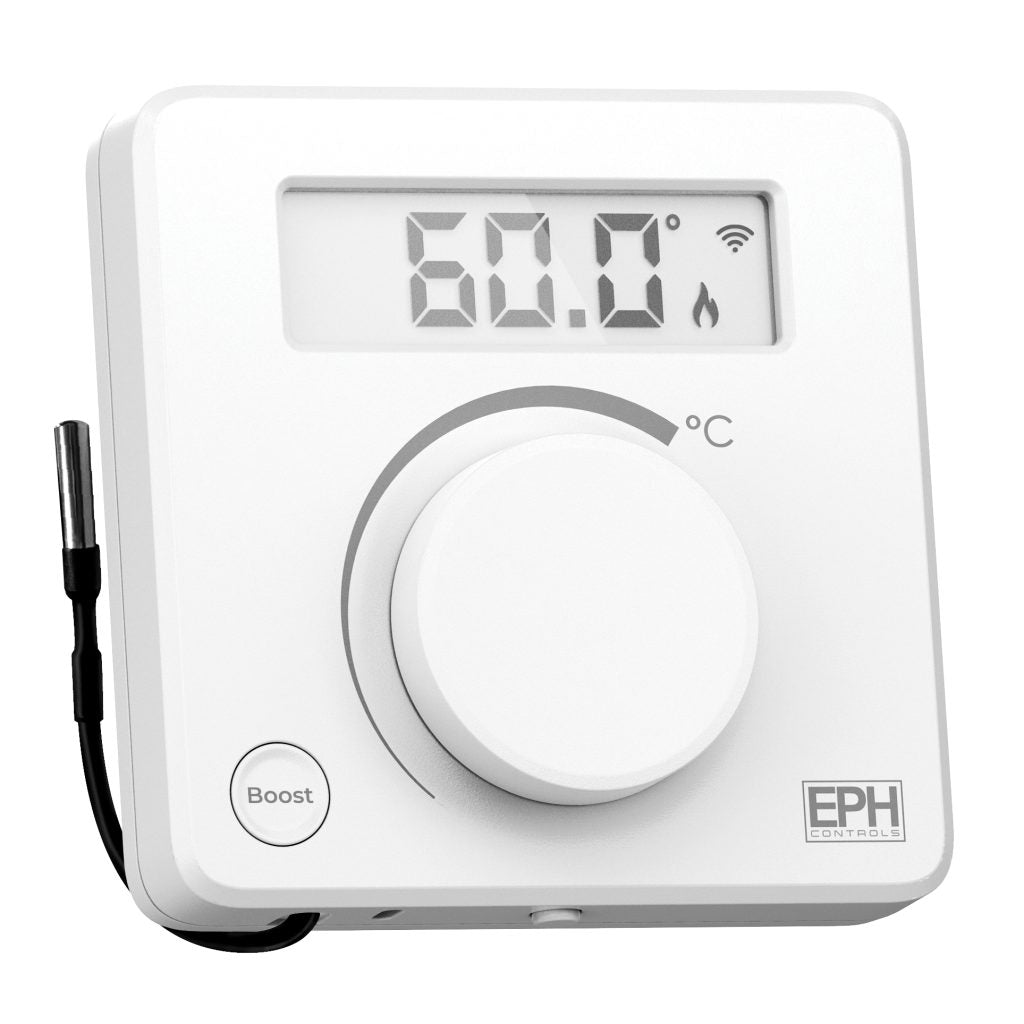

The RFC V2 RF Cylinder Thermostat is a wireless temperature control solution designed specifically for domestic hot water cylinder applications. Ideal for residential installations, it communicates seamlessly with compatible RF programmers or the UFH10-RF wiring centre, providing flexible and efficient hot water control without the need for extensive wiring.
Incorporating a convenient Boost button, the RFC V2 allows users to temporarily increase hot water heating on demand, offering added comfort and convenience. With an RF range of up to 30 metres, it ensures reliable wireless communication throughout the property.
The unit is supplied with a 1.5m NTC temperature sensor for accurate cylinder temperature measurement and is designed for wall mounting near the hot water cylinder.
When installed as part of a compatible system with a gateway, the RFC V2 can also operate in conjunction with the EMBER App, enabling remote hot water management.
Technical Specification
- Product Name: RFC V2 – RF Cylinder Thermostat with Boost Button
- Application: Domestic hot water cylinder control
- Communication: RF wireless
- RF Range: Max. 30m
- Boost Function: Yes
- Mounting Type: Wall mounted
- Sensor Supplied: 1.5m NTC temperature sensor
- App Compatibility: EMBER App (with compatible system and gateway)
- Certifications: CE, UKCA
Electrical & Environmental Specifications
| Model | RF Range | Ambient Temp Range | Power Supply |
|---|---|---|---|
| RFC-V2 | Max 30m | 0°C to 50°C | 2 x AAA Batteries (incl.) |
Temperature & Physical Specifications
- Temperature Control Range: 0°C to 90°C

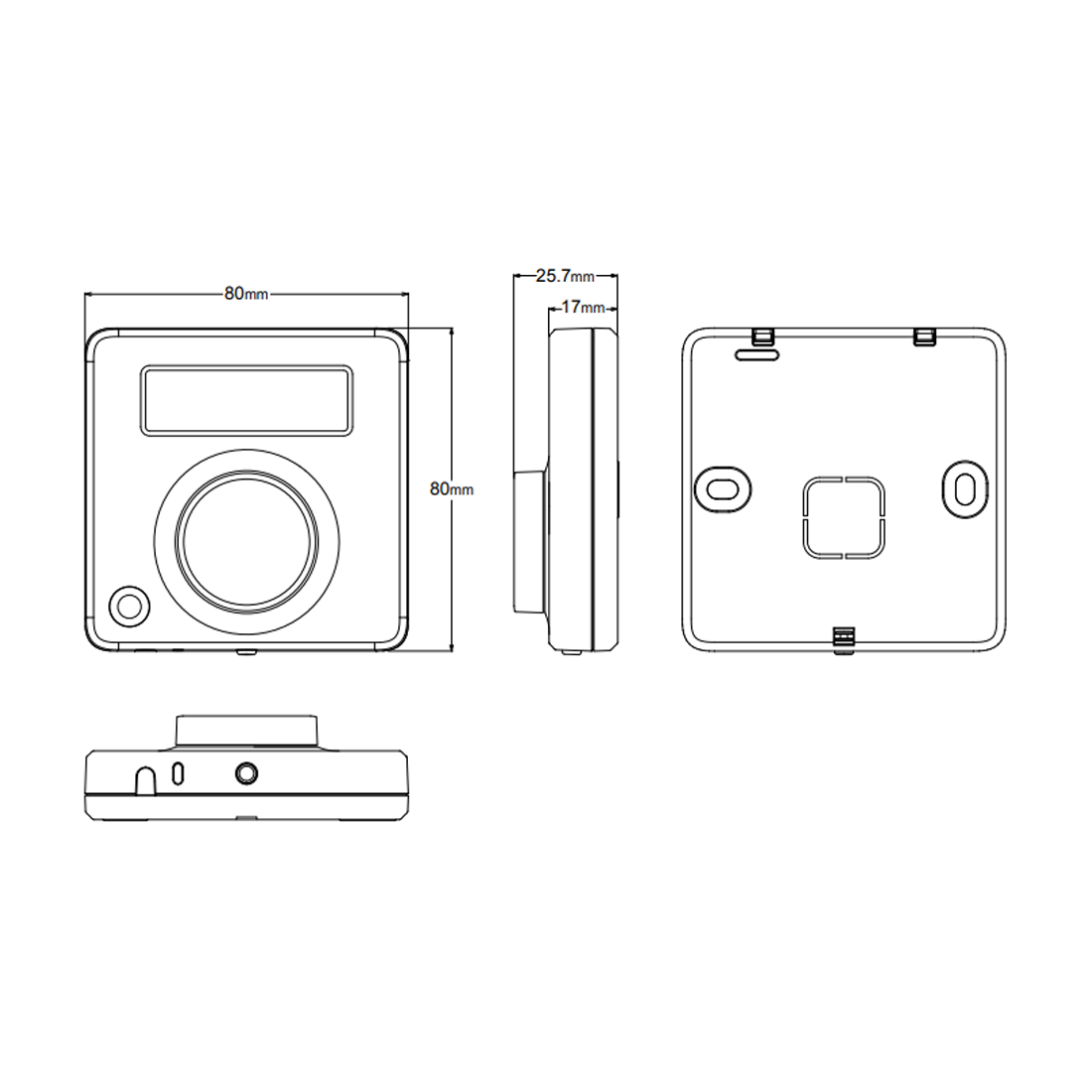

- Dimensions: 80 x 80 x 25mm
