Description
Product Part Number
EPH-RFRB
Product Overview

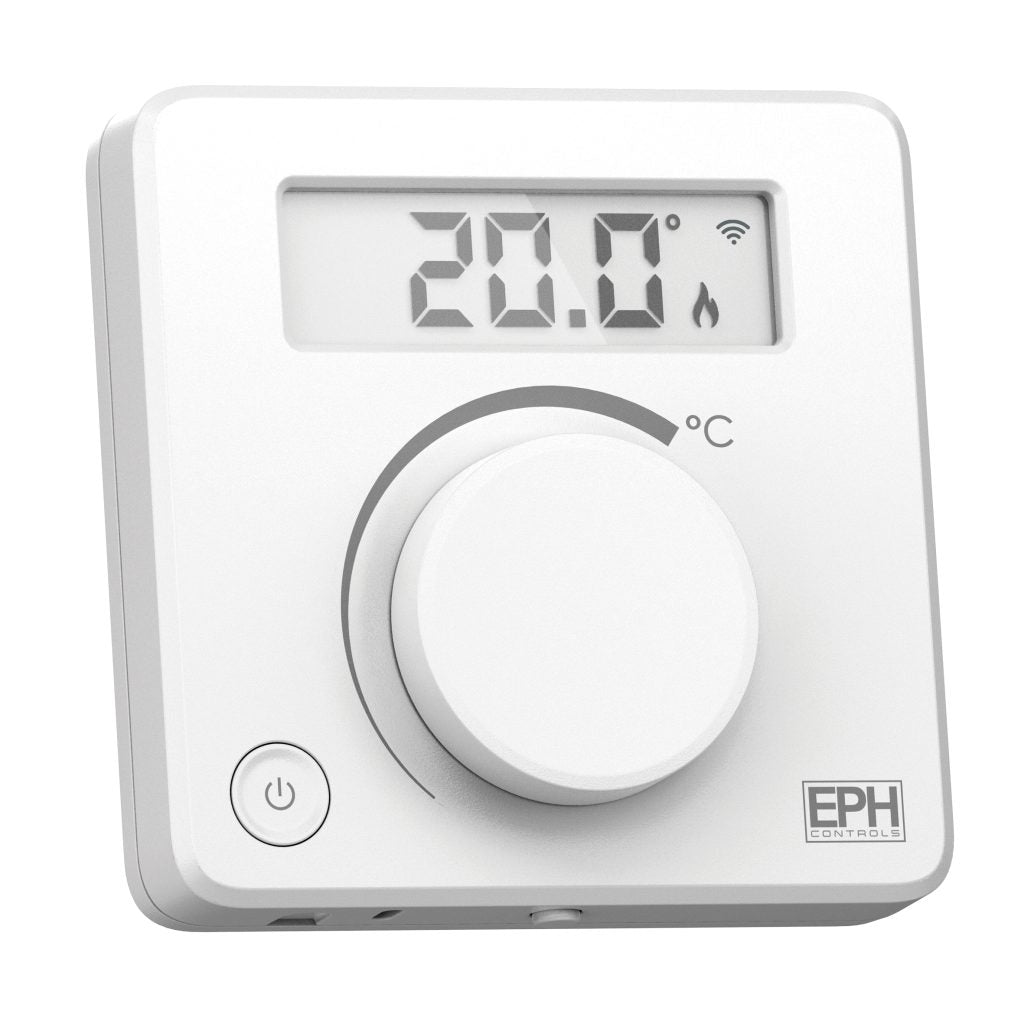

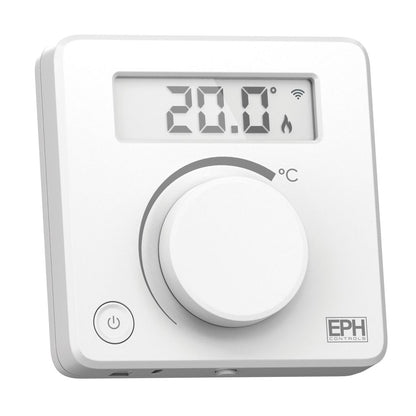

The RFRB V2 RF Room Thermostat is a versatile and user-friendly wireless thermostat designed for residential heating applications. Offering reliable RF communication, it connects seamlessly with compatible RF programmers or the UFH10-RF wiring centre, providing flexible system integration without the need for hardwiring.
Featuring a convenient On/Off button, the RFRB V2 allows simple manual control while maintaining accurate room temperature regulation. With an RF range of up to 30 metres, it ensures dependable communication within the home.
The thermostat can be mounted directly on the wall or used as a free-standing unit, offering installation flexibility to suit different room layouts. When used with a compatible system and gateway, it can also operate in conjunction with the EMBER App for enhanced control options.
Technical Specification
- Product Name: RFRB V2 – RF Room Thermostat with On/Off Button
- Application: Residential heating control
- Communication: RF wireless
- RF Range: Up to 30m
- Mounting Options: Wall mounted or free standing
- On/Off Button: Yes
- App Compatibility: EMBER App (with compatible system)
- Certifications: CE, UKCA
Electrical & RF Specifications
| Model | RF Range | Power Supply | Ambient Temp Range |
|---|---|---|---|
| RFRB-V2 | Max 30m | 2 x AAA Batteries (incl.) | 0°C to 50°C |
Temperature & Physical Specifications
- Temperature Control Range: 0°C to 35°C
- Mounting Type: Wall or Free Standing

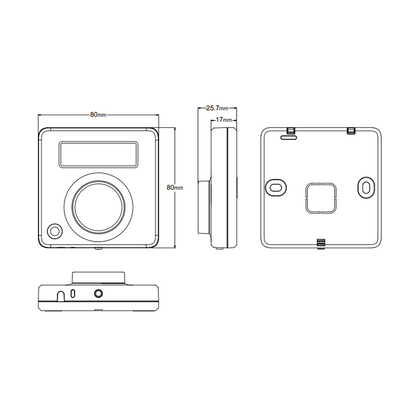

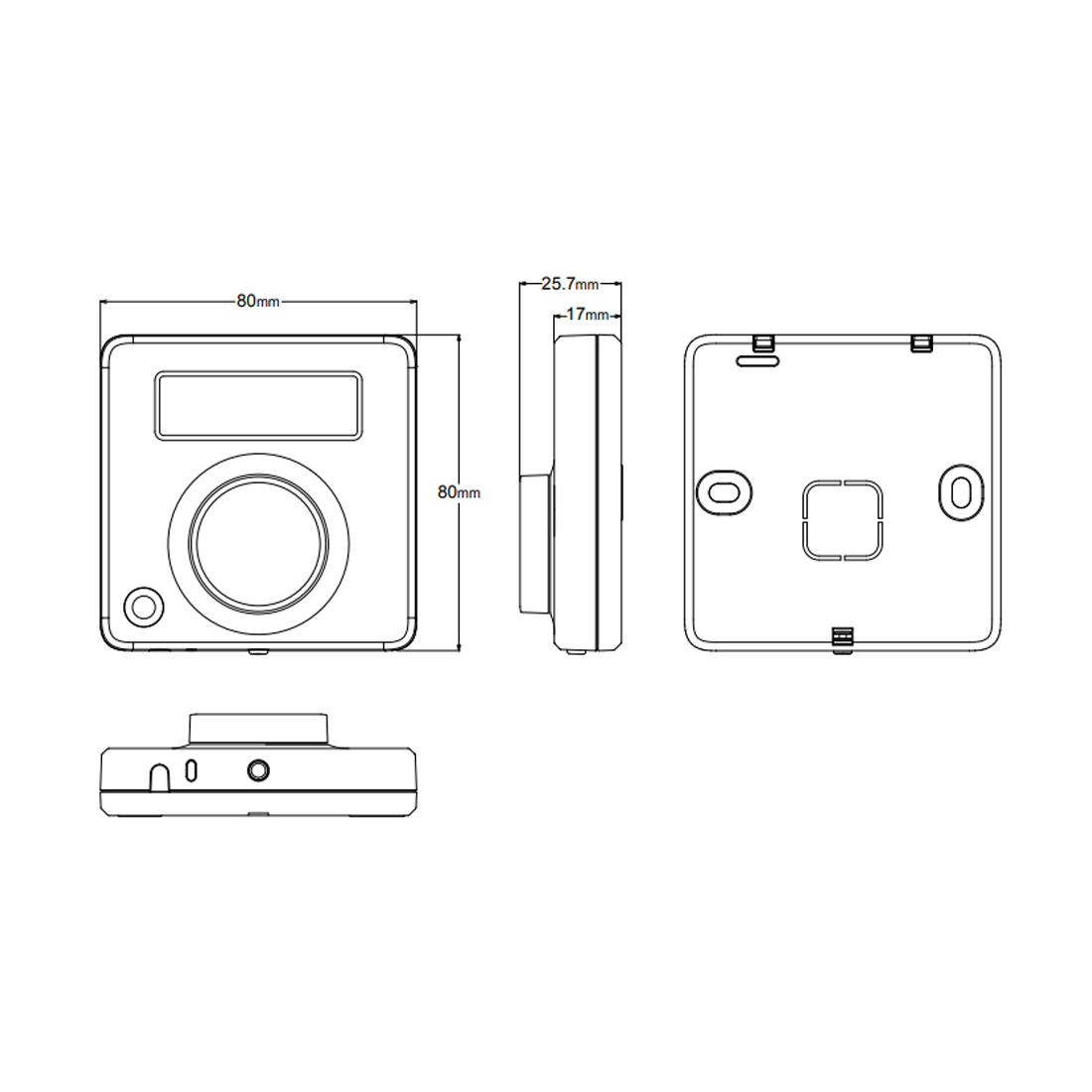

- Dimensions: 80 x 80 x 25mm
