Description
Product Part Number
EPH-RDT-RF
Product Overview

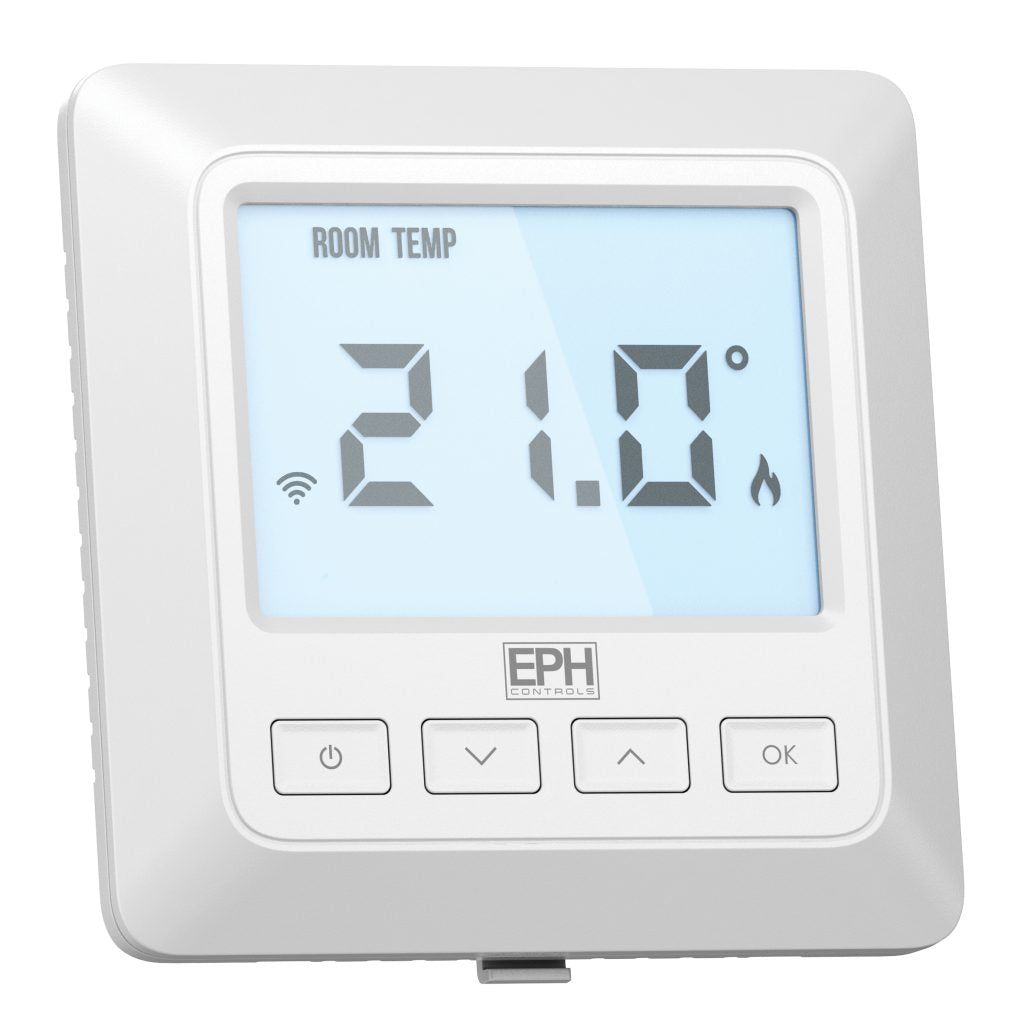

The RDT-RF Mains Recessed RF Room Thermostat is a hardwired, radio frequency thermostat designed to provide precise and reliable heating control without the need for battery replacement. Mains powered for continuous operation, it combines the convenience of wireless communication with the reliability of a fixed power supply.
Operating on a secure 868.35 MHz two-way RF frequency, the RDT-RF communicates seamlessly with compatible RF programmers or the UFH10-RF wiring centre, making it ideal for integrated heating and underfloor heating systems. The thermostat can also be used in conjunction with the EMBER App, enabling enhanced system control and user convenience.
The unit features a lockable keypad, limitable temperature range, and adjustable hysteresis, making it suitable for residential and light commercial applications where controlled access and accurate temperature management are required.
Technical Specification
- Product Name: RDT-RF – Mains Recessed RF Room Thermostat
- Installation Type: Recessed
- Communication: Two-way RF
- Compatible With: RF Programmer, UFH10-RF
- App Compatibility: EMBER App
- Keypad: Lockable
- Temperature Range Limiting: Adjustable
- Power Supply: Mains operated
- Certifications: CE, UKCA
- IP Rating: IP20
Temperature & Sensor Specifications
- Internal Temperature Sensor: NTC100K
- Optional External Sensor: NTC10K
- Temperature Control Range: 5°C to 35°C
- Hysteresis (Switching Differential): Adjustable 0°C to 1°C
- Ambient Temperature Range: Adjustable 0°C to 50°C
Electrical & RF Specifications
| Model | Power Supply | RF Frequency | Dimensions (mm) |
|---|---|---|---|
| RDT-RF | 230Vac 50Hz | 868.35 MHz | 95 x 97 x 40.2 |
