Description
Product Part Number
EPH-UFH10-RF
Product Overview

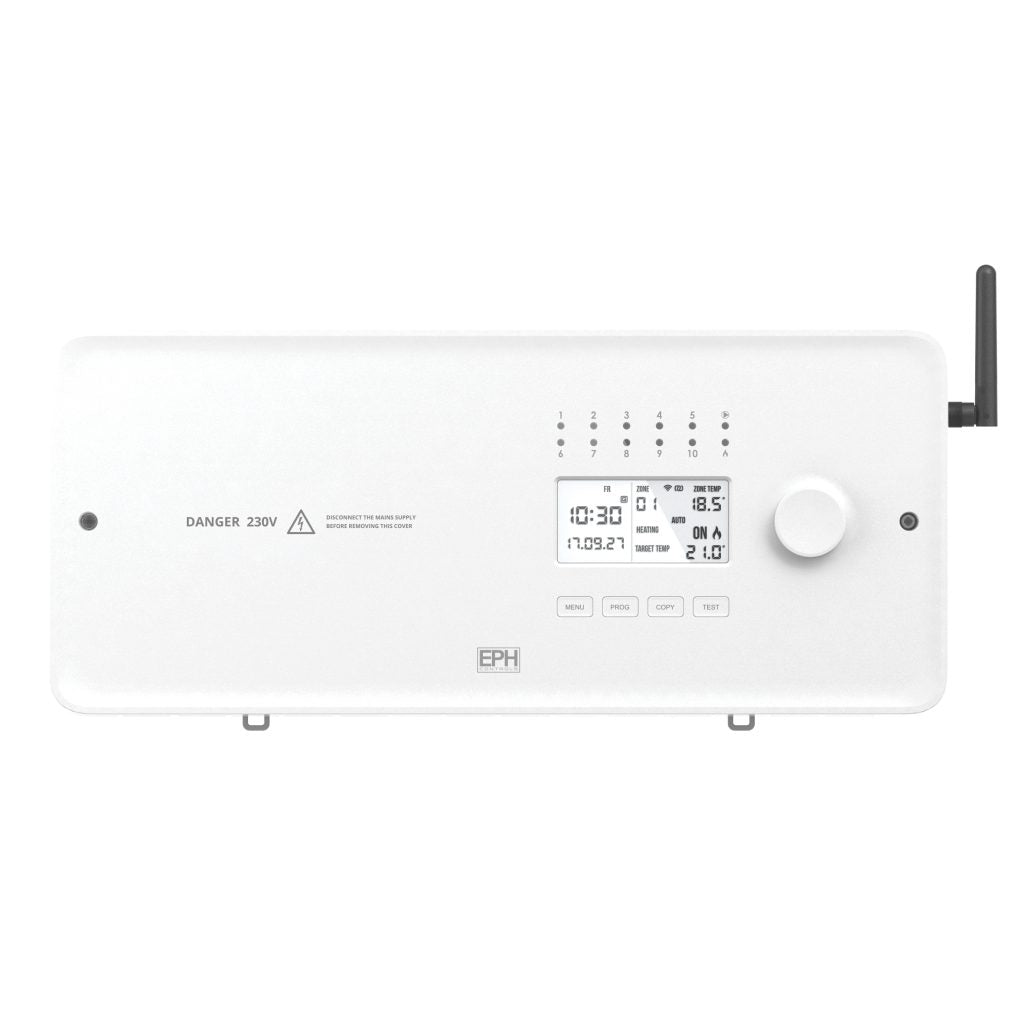

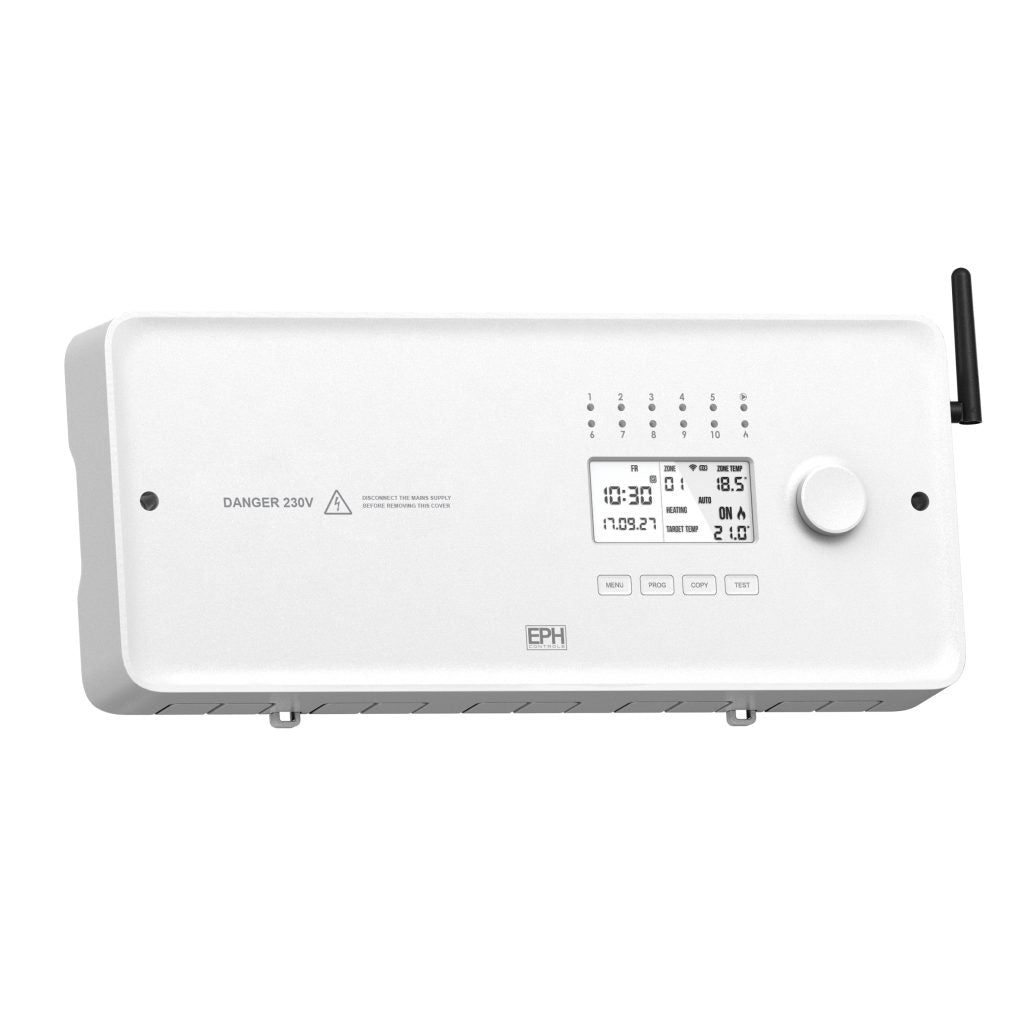

The UFH10-RF is a wireless 10-zone underfloor heating wiring centre designed to simplify installation while delivering full system control. With a built-in RF antenna, it communicates directly with compatible EPH RF thermostats, removing the need for hardwired thermostat connections and significantly reducing installation time.
Capable of controlling up to 10 zones, each zone can be programmed individually for maximum flexibility and comfort. Any zone can also be configured to operate as a radiator or domestic hot water (DHW) circuit, making it suitable for mixed heating systems.
The UFH10-RF includes a 230V pump output, volt-free boiler output, and a dedicated UFH valve output, ensuring complete system integration. Additional features such as setback functionality, anti-seize protection, and pump delay enhance system efficiency and longevity.
When paired with a GW04 gateway, the UFH10-RF can be controlled remotely via the EMBER App, offering convenient smartphone-based heating management.
Technical Specification
- Product Name: UFH10-RF – 10 Zone Wireless Underfloor Heating Wiring Centre
- Application: Wireless underfloor heating systems
- Number of Zones: 10
- Zone Configuration: Any zone configurable for radiator or DHW circuit
- Communication: Built-in RF antenna
- RF Range: Max. 30m
- Pump Output: 230V
- Boiler Output: Volt-free
- UFH Valve Output: Yes
-
Additional Features:
- Setback functionality
- Anti-seize protection
- Pump delay
- Light indicators
- App Compatibility: EMBER App (with GW04 gateway)
- Power Supply: Mains operated
- Certifications: CE, UKCA
- IP Rating: IP20
Electrical Specifications
| Model | Power Supply | Contact Rating | Switch Output | RF Range |
|---|---|---|---|---|
| UFH10-RF | 230Vac 50–60Hz | 3(1)A | SPDT 230Vac | Max. 30m |
System Capacity & Environmental
- Maximum Actuators Per Zone: 4
- Ambient Operating Temperature: 0°C to 45°C

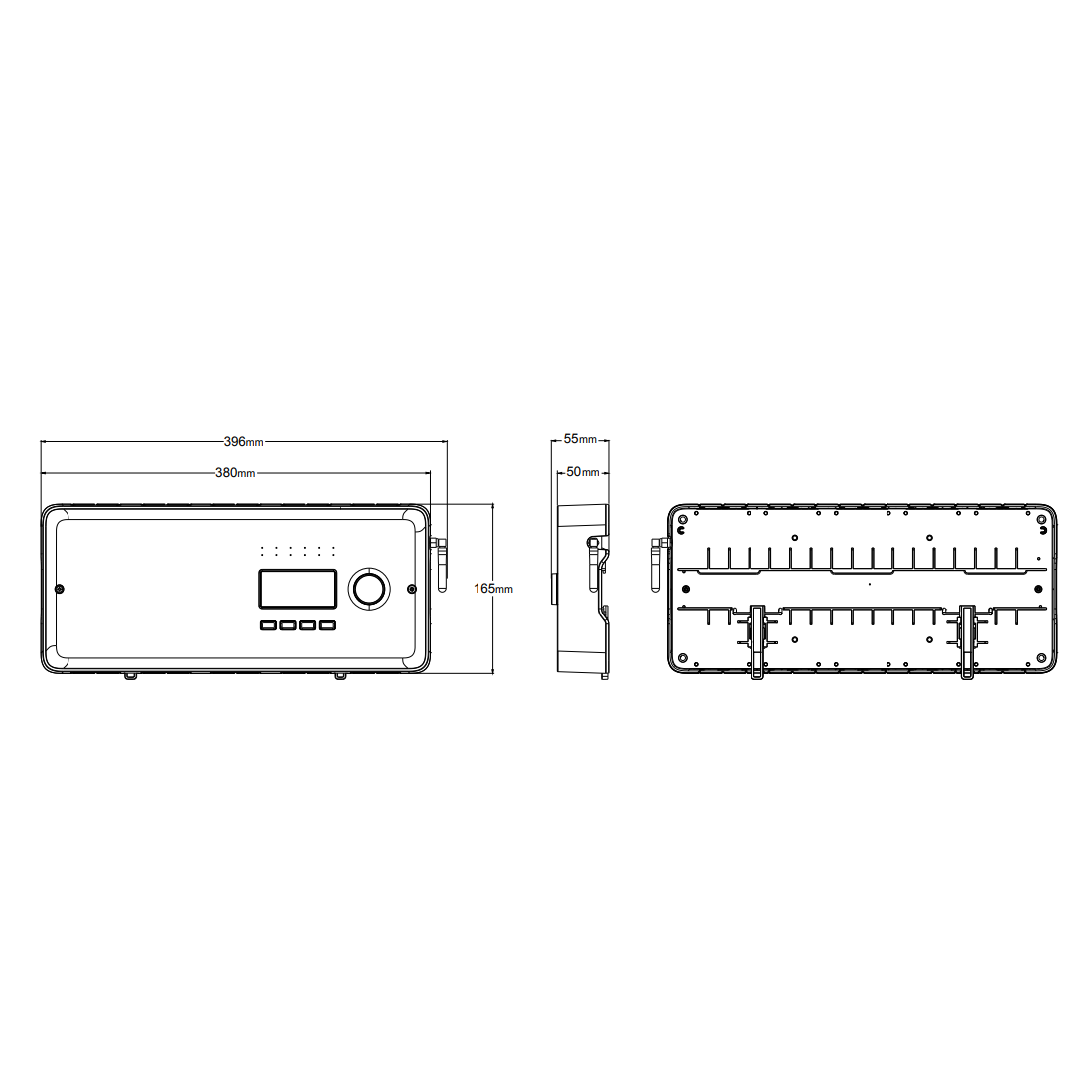

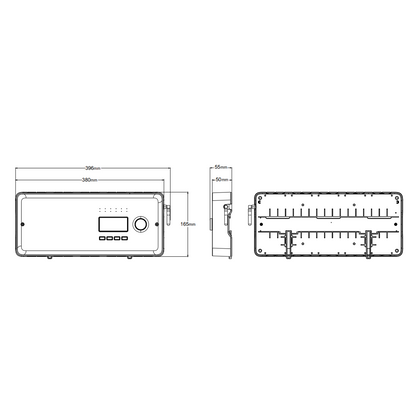

- Dimensions: 380 x 165 x 50mm
