Description
Product Part Number
EPH-UFH10
Product Overview

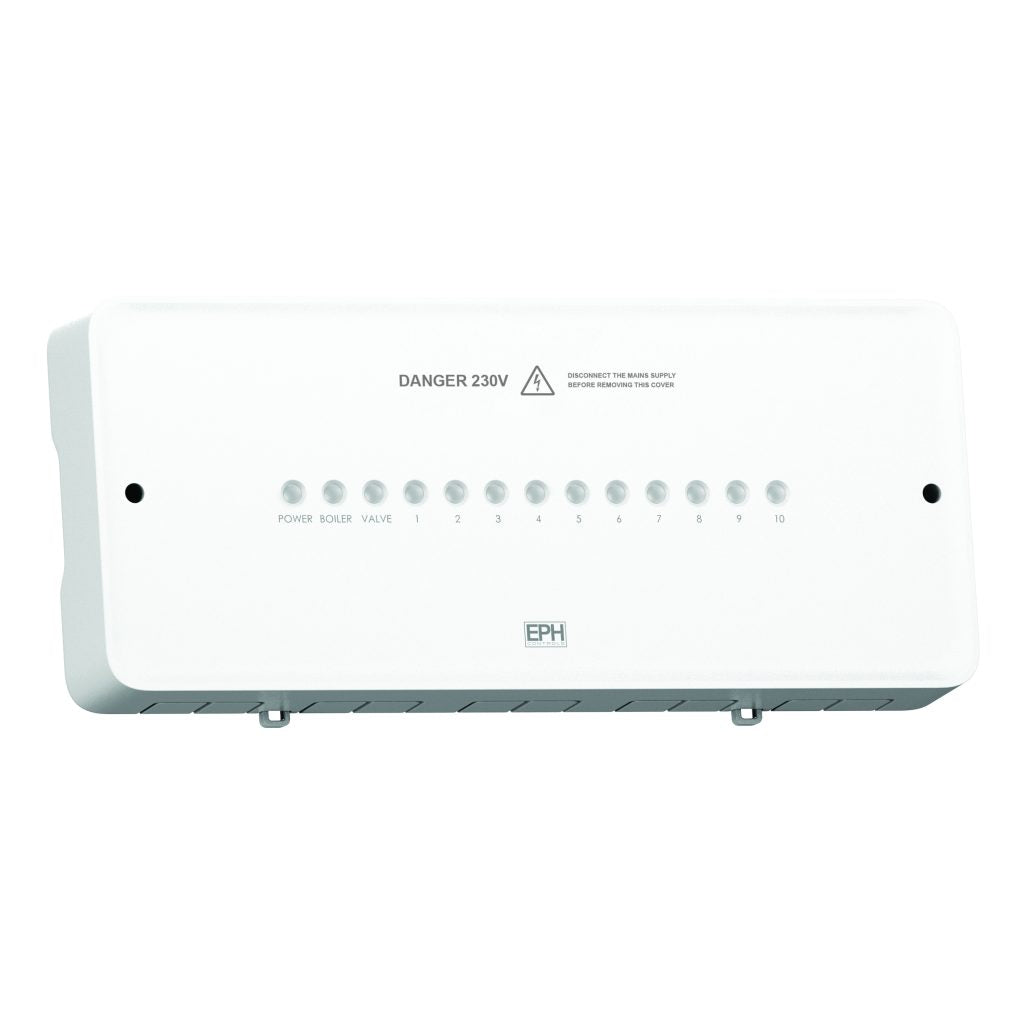

The EPH UFH10 is a high-capacity 10-zone underfloor heating wiring centre designed to provide a complete control solution for 230V wired underfloor heating systems. Acting as a central logic strip, it simplifies installation and system coordination by integrating thermostats, actuators, boiler, pump, and valve control within one unit.
With ten heating zones and four time control inputs, the UFH10 offers enhanced flexibility for larger residential or light commercial installations. Two zones can be configured for radiators or hot water control, enabling seamless integration of mixed heating systems.
The unit includes a 230V pump output, volt-free boiler output, and a dedicated UFH valve output, ensuring efficient and reliable system operation. Built-in light indicators provide clear visual status feedback for easy commissioning and maintenance.
Technical Specification
- Product Name: UFH10 – 10 Zone Underfloor Heating Wiring Centre
- Application: 230V wired underfloor heating systems
- Number of Zones: 10
- Time Inputs: 4
- Zones Configurable for Radiators/Hot Water: 2
- Pump Output: 230V
- Boiler Output: Volt-free
- UFH Valve Output: Yes
- Light Indicator: Yes
- Power Supply: Mains operated
- Certifications: CE, UKCA
- IP Rating: IP20
System Capacity & Environmental
- Maximum Actuators Per Zone: 4
- Ambient Operating Temperature: 0°C to 45°C
Electrical Specifications
| Model | Power Supply | Contact Rating | Switch Output |
|---|---|---|---|
| UFH10 | 230Vac 50–60Hz | 3(1)A | SPDT 230Vac |
