Description
Product Part Number
EPH-UFH5
Product Overview

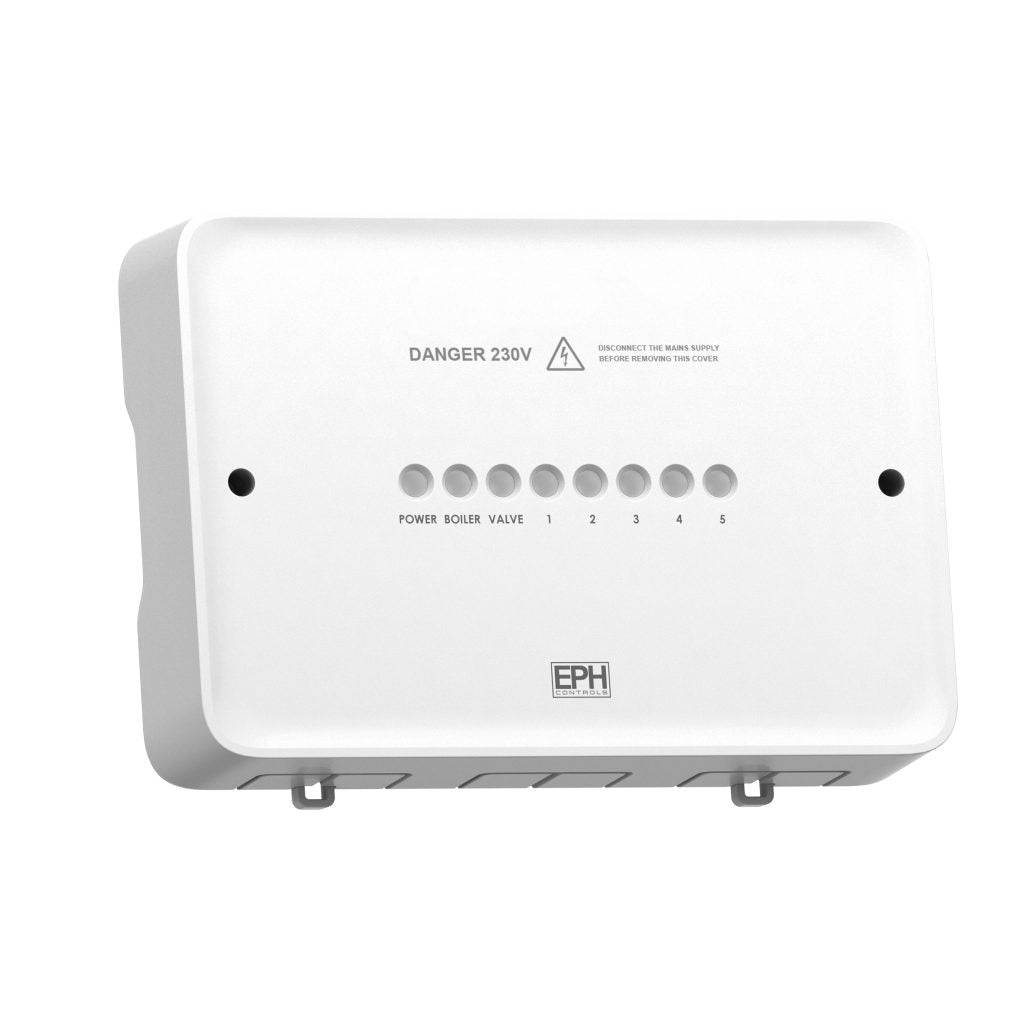

The EPH UFH5 is a comprehensive 5-zone underfloor heating wiring centre designed to provide a complete control solution for 230V wired underfloor heating systems. Acting as a central logic strip, the UFH5 simplifies system wiring while delivering reliable coordination between thermostats, actuators, boiler, pump, and valves.
With five heating zones and three time control inputs, the UFH5 offers flexible system configuration. Two of the zones can be configured for radiators or hot water control, allowing integration of mixed heating systems within one central wiring solution.
The unit features a 230V pump output, volt-free boiler output, and a dedicated underfloor heating valve output, ensuring seamless system operation. Visual light indicators provide clear operational status at a glance.
Technical Specification
- Product Name: UFH5 – 5 Zone Underfloor Heating Wiring Centre
- Application: 230V wired underfloor heating systems
- Number of Zones: 5
- Time Inputs: 3
- Zones Configurable for Radiators/Hot Water: 2
- Pump Output: 230V
- Boiler Output: Volt-free
- UFH Valve Output: Yes
- Light Indicator: Yes
- Power Supply: Mains operated
- Certifications: CE, UKCA
- IP Rating: IP20
System Capacity & Environmental
- Maximum Actuators Per Zone: 4
- Ambient Operating Temperature: 0°C to 45°C
Electrical Specifications
| Model | Power Supply | Contact Rating | Switch Output |
|---|---|---|---|
| UFH5 | 230Vac 50–60Hz | 3(1)A | SPDT 230Vac |
