Description
Product Part Number
ISOSLEEVE082x10 - 82mm
ISOSLEEVE102x10 - 102mm
Product Overview
The Quiet-Vent Isosleeve is designed to provide thermal insulation around radial ventilation pipework, helping to minimise heat loss, heat gain and the risk of condensation where ducting passes through colder or unconditioned areas.

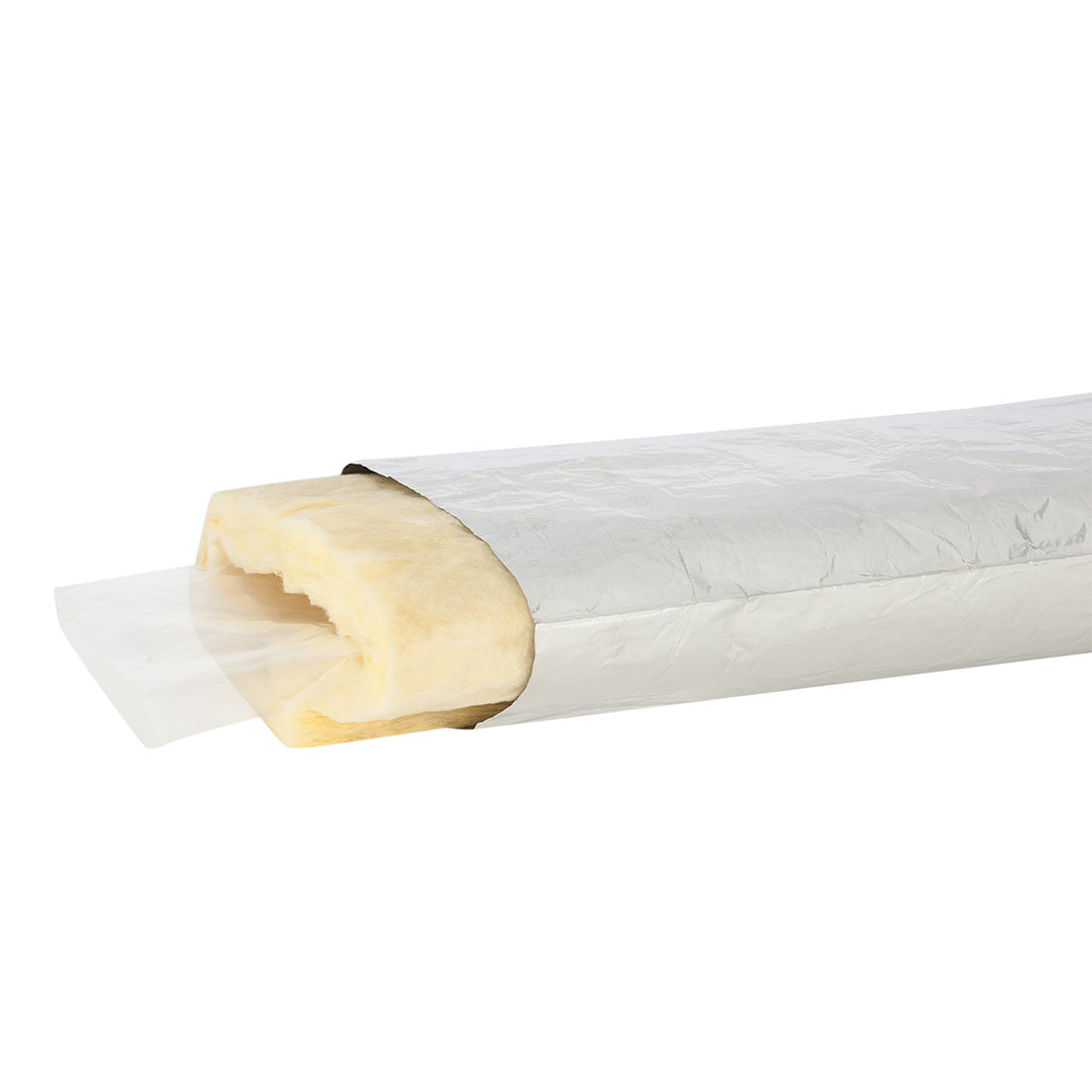

It features a 25mm glass-wool insulation layer enclosed within an aluminium and polyester laminate outer jacket. An internal plastic-film barrier simplifies installation and reduces direct contact with the glass-wool fibres. Supplied in a 10m length, the Isosleeve is available in sizes suitable for insulating both 75mm and 90mm radial pipework.
Key Features
- Designed for insulating radial ventilation pipework
- Helps reduce condensation risk
- Helps minimise heat loss and heat gain
- 25mm glass-wool insulation layer
- Aluminium and polyester laminate outer jacket
- Internal plastic-film barrier
- Barrier helps reduce contact with glass-wool fibres
- Flexible construction for straightforward installation
- Suitable for 75mm and 90mm radial pipework
- Supplied in a 10m length
- Fire classification to EN 13501-1: B-s1,d0
Technical Specification
| Specification | Details |
|---|---|
| Product type | Flexible pipe insulation sleeve |
| Application | Thermal insulation of radial ventilation pipework |
| Supplied length | 10m |
| Available sleeve diameters | 82mm and 102mm |
| Compatible pipework | 75mm and 90mm radial ducting |
| Insulation material | Glass wool |
| Insulation thickness | 25mm |
| Insulation density | 16kg/m³ |
| Internal barrier | Plastic film |
| Outer jacket | Aluminium and polyester laminate |
| Appearance | Aluminium |
| Operating temperature | −30°C to +140°C |
| Maximum operating pressure | +2,000Pa |
| Fire classification | EN 13501-1: B-s1,d0 |
