Description
Product Part Number
QV-SSC125M-IC - QV 125mm S/Steel Cowl with Bird Mesh
QV-SSC150M-IC - QV 150mm S/Steel Cowl with Bird Mesh
QV-SSC180M-IC - QV 180mm S/Steel Cowl with Bird Mesh
QV-SSC200M-IC - QV 200mm S/Steel Cowl with Bird Mesh
Product Overview

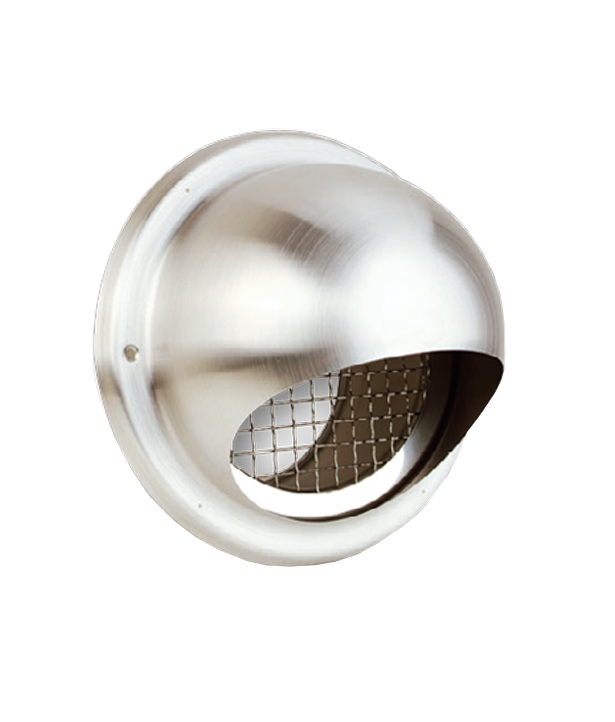

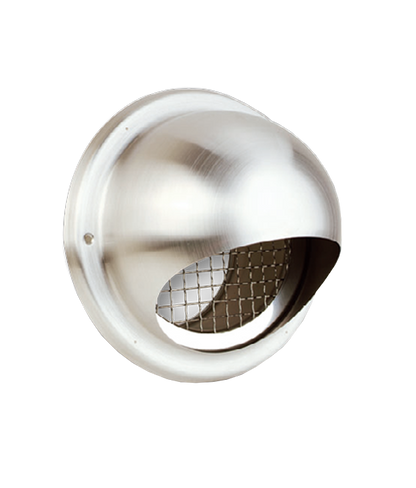

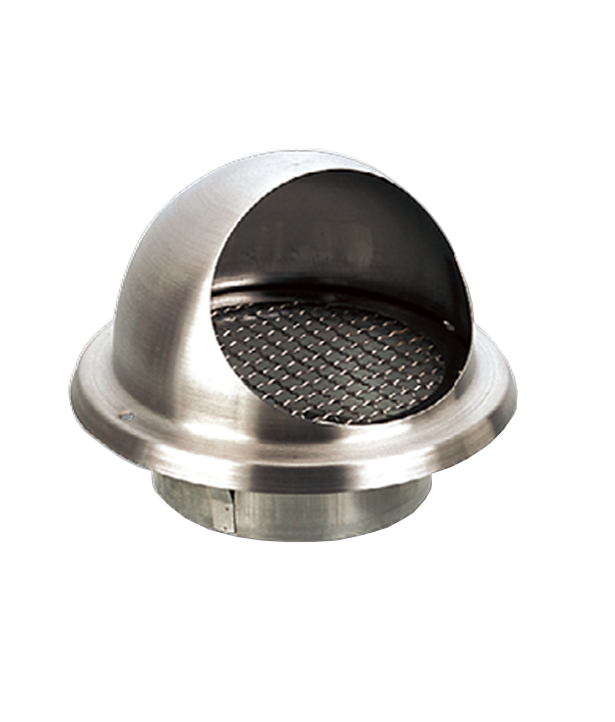

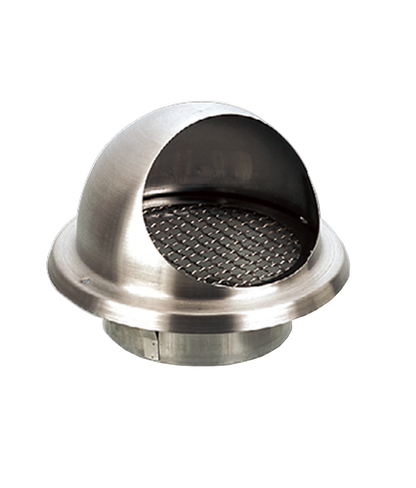

The Quiet-Vent Stainless Steel Cowl is designed to provide a durable termination point for circular supply or extract ventilation ductwork. Its hooded design supports unrestricted airflow while helping protect the duct opening from rain and external debris, making it suitable for installation on outside walls. It may also be used internally where a robust stainless steel terminal is required.
Manufactured from polished grade 304 stainless steel, the cowl provides a clean appearance and reliable resistance to corrosion. An integrated stainless steel mesh helps prevent birds, insects and larger debris from entering the ventilation system, while the fixing clips and rubber seal support a secure connection to compatible circular ducting.
Key Features
- Suitable for supply or extract ventilation
- Hooded design helps protect the duct opening
- Integrated stainless steel bird and insect mesh
- Manufactured from grade 304 stainless steel
- Polished surface finish
- Suitable for external or internal wall installation
- Rubber seal supports a secure duct connection
- Designed to provide maximum air passage
- Available in 125mm, 150mm, 180mm and 200mm sizes
Technical Specification
| Specification | Details |
|---|---|
| Product type | Hooded stainless steel air cowl |
| Application | Supply or extract ventilation termination |
| Material | Grade 304 stainless steel |
| Surface finish | Polished |
| Mesh | Integrated stainless steel bird and insect mesh |
| Installation position | Internal or external wall |
| Duct connection | Circular |
| Sealing | Rubber sealing ring |
| Fixing method | Fixing clips and stainless steel screws |
